Art. 19030
EN
Operator's manual
smart Sensor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 19030 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gardena 19030

Summary of Contents for Gardena 19030

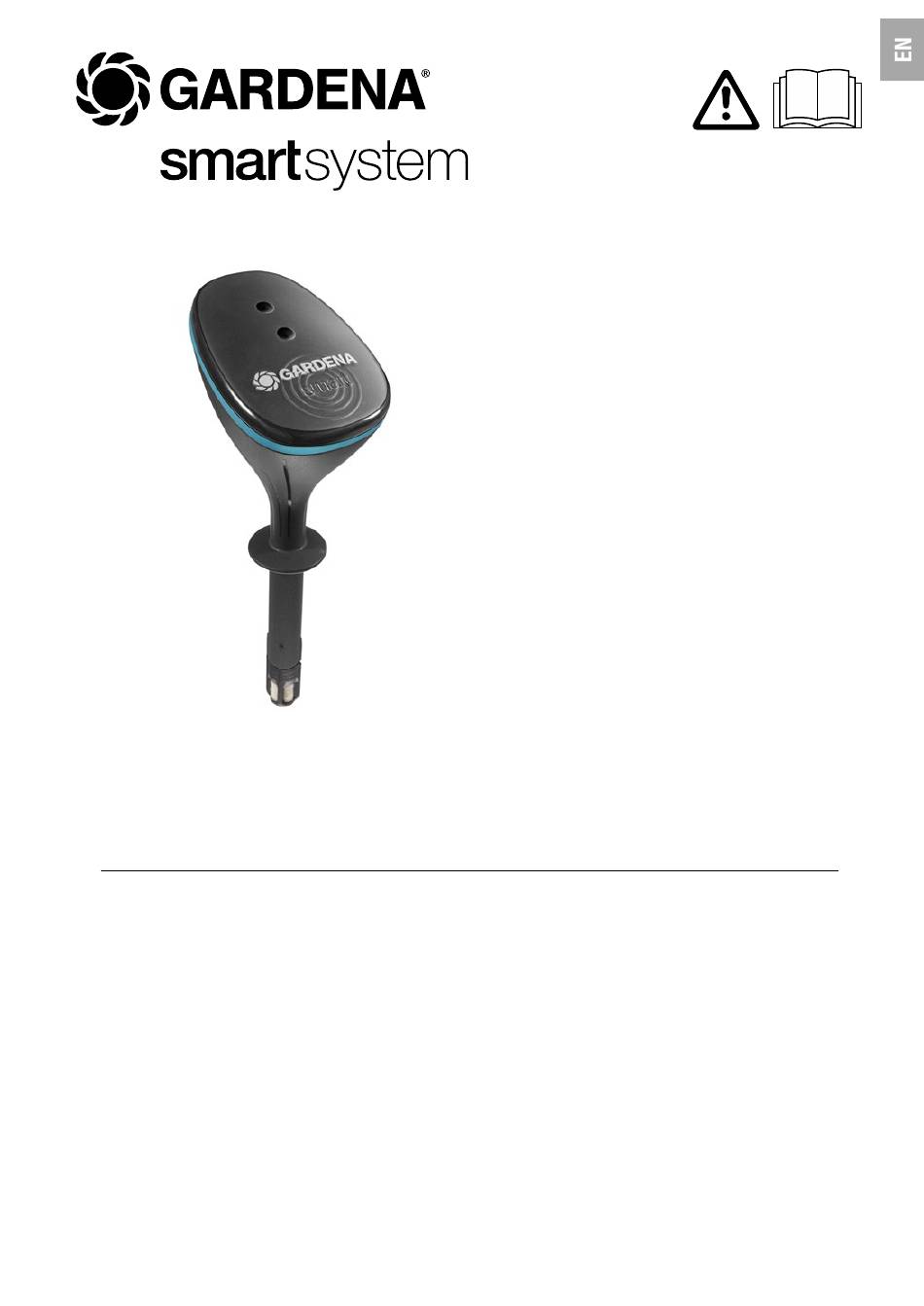

  • Page 1 Art. 19030 Operator’s manual smart Sensor...

  • Page 2: Table Of Contents

    GARDENA smart Sensor 1. SAFETY ..........
  • Page 3 Intended use: The GARDENA smart sensor is designed exclu sively for private use out- doors in home gardens, on allotments and in greenhouses. It controls the smart system by measuring soil moisture, light intensity and temperature.

  • Page 4: Safety

    1. SAFETY Important! Examine the work area (the sensor Read the operator’s manual must be located outside of the carefully before use and keep mowing area). for future reference. Do not use damaged products. Ensure that all parts are correctly disposed of with immediate effect (please see Chapter 6.
  • Page 5 Batteries: Do not use re-chargeable batteries. To prevent failure of the Sensor due To ensure the Sensor runs safely, to weak batteries in conjunction with only 2 x alkalimanganese (alkaline) a lengthy absence, batteries should batteries type LR6 (AA) (Mignon) be replaced in due course.

  • Page 6: Function

    The Sensor measures the soil moisture at the root level of the plants, the light- ness and the temperature automatically and sends the measured results to the Gateway. (The values can be read using the GARDENA smart system app). Display / Sensors:...

  • Page 7: Initial Operation

    3. INITIAL OPERATION To insert batteries: The batteries are not included in the scope of delivery. The Sensor must only be operated with 2 x alkalimanganese (alkaline) batteries type LR6 (AA) (Mignon). The operating period is approx. 6 months. The operating period can vary depending on ambient temperature and transmission frequency.
  • Page 8 To select correct location: Correct location: The Sensor must be positioned at a location in the watering area which is exposed to the same climatic conditions as the plants (sun, wind, rain, etc.) for which a status is to be displayed. Incorrect location: The Sensor should not be covered by neighbouring plants.
  • Page 9 Depending on the ground it may take several hours until the Sensor measures the actual soil moisture. HINT: To Connect GARDENA Micro-Drip-System: To ensure that the quantity of water delivered is registered by the sensor tip when using the GARDENA Micro-Drip-System, a drip head should be installed directly above the sensor.

  • Page 10: Operation

    4. OPERATION Operation with the GARDENA smart system App: You can use the GARDENA smart system app to control all smart system products from anywhere at any time. You can download the free GARDENA smart system app from the Apple App Store or from the Google Play Store.
  • Page 11 Factory Reset: The smart Sensor will be reset to the factory settings. v Push the Reset key for a short time. New connection. – or – v Push and hold down the Reset key for at least 5 seconds. Cancels the existing connection and allows a new connection to be established, e.

  • Page 12: Maintenance

    The felt on the tip should not come into contact with grease / oil. v Clean sensor tip with clear water. If the felt becomes damaged, the sensor tip can be re-ordered from GARDENA Service. v Unscrew sensor tip and screw on new tip. To clean the sensor: No caustic / abrasive cleaning agents should be used.

  • Page 13: Storage

    Dispose of the product through or via your municipal recycling collection centre. Disposing of flat batteries: Please return flat batteries to a GARDENA dealer or dispose of them properly at your nearest recycling centre. Only dispose of batteries when they are flat.

  • Page 14: Troubleshooting

    7. TROUBLESHOOTING NOTE: For any other malfunctions please contact the GARDENA service department. Repairs must only be done by GARDENA service departments or specialist dealers approved by GARDENA.

  • Page 15: Technical Data

    (min. 2000 mAh) EC Declaration of Conformity: Hereby, GARDENA Manufacturing GmbH declares that the radio equipment type (Art. 19030) is in compliance with directive 2014/53/EU. The full text of the EC declaration of conformity is available at the following internet address:...

  • Page 16: Accessories

    9. ACCESSORIES GARDENA sensor tip For replacement if sensor tip Art. 19030-00.620.00 with felt is damaged. (from GARDENA Service)

  • Page 17: Service / Warranty

    In the event of a warranty claim, please send the defective product together with a copy of the purchase receipt and a description of the defect, suffi- ciently stamped, to the GARDENA service address on the back page. Consumables: As a wear part the sensor tip with felt is not covered by the guarantee.
  • Page 18 In accordance with the German Product Liability Act, we hereby expressly declare that we accept no liability for damage incurred from our products where said products have not been properly repaired by a GARDENA approved service partner or where original GARDENA parts or parts author-...
  • Page 19 Autoput za Novi Sad bb # 8355 comuna Las Condes © GARDENA © GARDENA Phone: (+ 56) 2 202 4417 http : // www.gardena.com / fr Ateities pl. 77C 11273 Belgrade Manufacturing GmbH Manufacturing GmbH N° AZUR : 0 810 00 78 23...
