RC System SENSMART 2000 User Manual

Sensor transmitter
Hide thumbs
Table of Contents

Advertisement

Quick Links

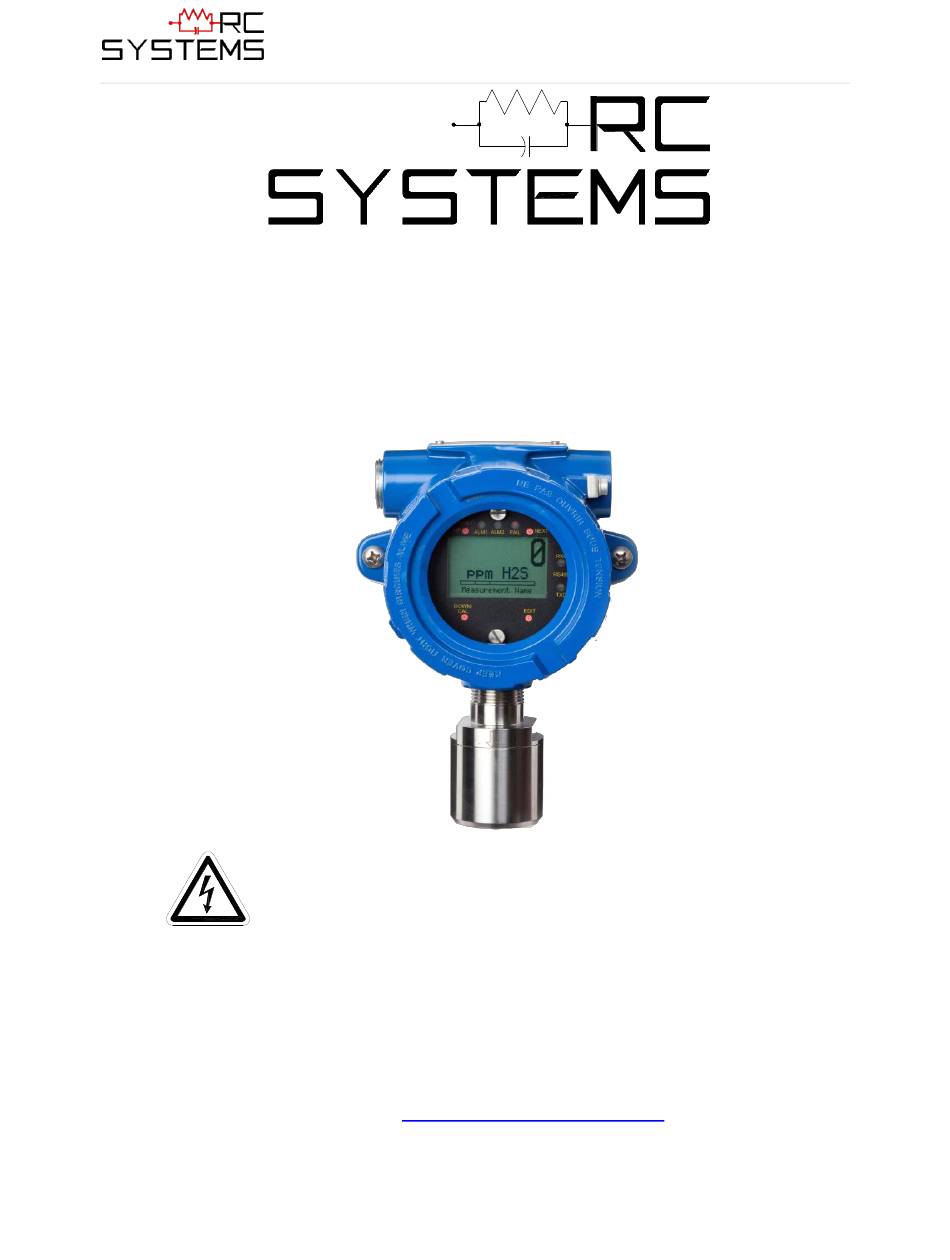

SenSmart 3000 User's Manual
Document: UM-1003
Revision Level B
INSTRUCTION
MANUAL
R.C. SYSTEMS CO. INC.
MODEL SENSMART 3000/2000 SENSOR TRANSMITTER
(Built with our Proven St-48 Transmitter)
Warning: Read & understand contents of this manual prior
to operation. Failure to do so could result in serious injury or death.
Users are responsible for correct translations of this manual into
their native language.
PH. 409-986-9800 FAX 409-986-9880
8621 Hwy. 6 Hitchcock, TX 77563
Website:
http://www.rcsystemsco.com
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SENSMART 2000 and is the answer not in the manual?

Questions and answers

Summary of Contents for RC System SENSMART 2000

  • Page 1 SenSmart 3000 User's Manual Document: UM-1003 Revision Level B INSTRUCTION MANUAL R.C. SYSTEMS CO. INC. MODEL SENSMART 3000/2000 SENSOR TRANSMITTER (Built with our Proven St-48 Transmitter) Warning: Read & understand contents of this manual prior to operation. Failure to do so could result in serious injury or death. Users are responsible for correct translations of this manual into their native language.

  • Page 2: Table Of Contents

    Sensor Location ......................3 Mounting the Enclosure....................4 System Design Specifications ................... 5 Field Wiring Installation ....................6 SenSmart 2000 2-Wire Intrinsically Safe & Explosion Proof Installations .... 6 2.7a Installation Drawing # 11-0100 ................8 3-Wire 4-20mA Mode Installation ................9 Alarms / RS-485 Modbus 10-0234 Option Installation ...........
  • Page 3 SenSmart 3000 User's Manual Document: UM-1003 Revision Level B TX Sensor Life ........................ 22 Alarm Settings: ......................22 5.4.1 Relay Configuration (if equipped): ..............23 Sensor Information: ....................23 CLOCK/DELAY SETUP: .................... 24 LCD Contrast Adj: ..................... 25 HELP Screen: ......................25 Diagnostics: .......................

  • Page 4: Section 1 - Safety Information

    SECTION 2 – INSTALLATION INSTRUCTIONS Introduction Important: This manual describes both the 2-Wire (SenSmart 2000) and the 3-Wire (SenSmart 3000) 4-20mA versions of the ST-48 transmitter. SenSmart 2000 2-Wire versions are only possible if the 10-0232 Display PCB IS THE ONLY PCB IN THE ENCLOSURE. If the 10-0233 I/O Power Supply is installed it is a 3-Wire version.
  • Page 5 SenSmart 3000 User's Manual Document: UM-1003 Revision Level B their engineering units as well as graphically as a bar graphs or 30-minute trends (Figure 2.1). Input types include Electrochemical toxic / oxygen sensors, catalytic bead combustible sensors, MOS solid-state sensors, as well as various millivolts, volt and 4-20mA inputs. Sensors supplied by the factory include an 8-wire Smart Sensor interface capable of configuration data uploads to the SenSmart 3000.

  • Page 6: Ratings And Certifications

    CSA certified for Division 1 & 2 hazardous area installations for explosion proof Class 1 Groups B,C,D, and intrinsically safe (SenSmart 2000 2-wire loops only) Class 1 Groups A,B,C,D. Also see sections 2.7, 2.7a & 2.8. Designed to meet CSA C22.2 No.152 for Combustibles Monitors and ISA 92.0.01 Part 1 for Toxic Monitors.

  • Page 7: Mounting The Enclosure

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B Mounting the Enclosure The SenSmart 3000 standard enclosure is a cast aluminum explosion-proof (NEMA 7) enclosure as shown in Figure 2-2. Figure 2-2a shows dimensions with the dual local sensor ‘Y’ included. Figure 2-2: SenSmart 3000 Explosion-Proof Housing 0010-1200 “Y”...

  • Page 8: System Design Specifications

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B supplied with toxic / oxygen SenSmart 3000s not requiring relays, RS-485 Modbus or LCD backlight. The optional bottom 10-0233 I/O Power Supply board generates voltages needed for LCD backlight, relays, RS-485 Modbus and Bridge sensor and is required with any of these I/O functions.

  • Page 9: Field Wiring Installation

    If a 4-20mA output is all that is required for toxic / oxygen measurements (no LCD backlight, alarms or RS-485) the SenSmart 2000 may be used in the 2-wire mode. CAUTION: It is important to understand the receiver, or controller device must supply the loop power in 2-wire 4-20mA modes.
  • Page 10 Route the receiver wires through the conduit entry and connect to TB1. Steering diodes in the SenSmart 2000 2-wire 4-20mA output automatically correct for polarity so positive and negative are interchangeable. Reassemble the SenSmart 2000. Follow the procedures and recommendations in the receiver manual to complete the installation.

  • Page 11: Installation Drawing # 11-0100

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B 2.7a Installation Drawing # 11-0100...

  • Page 12: 3-Wire 4-20Ma Mode Installation

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B 3-Wire 4-20mA Mode Installation CAUTION: SenSmart 3000’s equipped with the 10-0233 I/O Power Supply board only operate as 3 or 4-wire 4-20mA transmitters and are not compatible with 2-wire intrinsically safe installations (see sections 2.7 and 2.7a).

  • Page 13: Alarms / Rs-485 Modbus 10-0234 Option Installation

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B Alarms / RS-485 Modbus 10-0234 Option Installation Description: The optional 10-0234 Alarms/RS-485 Modbus board supplies two level alarm relays, a FAULT relay and an RS-485 Modbus RTU slave port (Figure 2-6). This board is “piggybacked” behind the 10-0232 Display Assembly (Figure 2-3).

  • Page 14: Isolated 4-20Ma Output 10-0250 Option

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B Figure 2-7: RS-485 Modbus Wiring 2.10 Isolated 4-20mA Output 10-0250 Option Description: The optional 10-0250 Isolated 4-20mA option (Figure 2-8) provides dual 4-20mA outputs that are electrically isolated from sensor inputs and the 24 VDC power source. Each 4-20mA output share the same common terminal and are not isolated from each other.

  • Page 15: Sensor Type" And Sensmart 3000 Signal Conditioning

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B taken this technology a step further. A tiny memory IC is incorporated into SenSmart 3000 factory supplied Smart sensors allowing them to contain the entire database of SenSmart 3000 parameters onboard the replaceable Smart Sensor assembly (Figure 2-9). This unique Smart Sensor Interface may be used to configure smart sensors and / or SenSmart 3000’s from a PC rather than entering all variables via the magnetic keypad.

  • Page 16: Section 3 - Initial Start-Up

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B Figure 2-11: SenSmart 3000 Block / Wiring Diagram SECTION 3 – INITIAL START-UP “Transmitter Configuration” Menu Figure 3-1shows the SenSmart 3000 XMITTER CONFIG menu used to activate channels, precisely calibrate 4-20mA outputs and set time / date. Its menus are set at the factory and typically not needed by the user.

  • Page 17: Single / Dual Gas Monitor Configuration

    Figure 3-1: Transmitter Configuration Menu 3.1.1 Single / Dual Gas Monitor Configuration SenSmart 2000’s are 2-wire 4-20mA devices and support only one electrochemical sensor. Addition of the 10-0233 Power Supply board (SenSmart 3000LEL) automatically adds the catalytic bead sensor input and dual 4-20mA outputs. If both the O2/TOXIC and LEL/Current menu items are ON, the SenSmart 3000 will function as a dual gas monitor with both sensor inputs and 4-20mA outputs active.

  • Page 18: Initial Bridge Sensor Monitor Start-Up

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B during calibration process and when an alarm is present. It will stay on for 15 seconds after any of these events clear. Initial Bridge Sensor Monitor Start-Up SenSmart 3000 LEL Monitors that are factory equipped with a local Simple or Smart Bridge sensor rarely require adjustments, other than routine calibrations, to provide accurate LEL readings.

  • Page 19: Section 4 - Operating Instructions

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B at least 25ppm but not more than 100ppm. The indicated value should read within 15% of full scale. Remember that this is only a coarse check and precision calibrations are performed in Routine Sensor Calibrations described in the following section 4.1.
  • Page 20 SenSmart 3000 User's Manual Document: UM-1003 Revision Level B Figure 4-1: Calibration Gas Input Use the following step-by-step procedure to perform ZERO and SPAN calibrations. 1. To enter the CAL MODE from either data display, press the DOWN / CAL key and within 5 seconds press the EDIT key.

  • Page 21: Alarm Operation

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B Calibration history records are logged and may be viewed in the Sensor Information menu (see section 5-5). Figure 4-2: Cal-Mode Flow Chart and Menus ALARM OPERATION SenSmart 3000’s have front panel LED indicators for Alarm 1, Alarm 2 and Alarm 3. An optional 10-0234 Relay/Modbus board adds K1, K2 &...

  • Page 22: Configuration Using The Magnetic Wand

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B Figure 5-1: Configuration Menu Tree Configuration Using the Magnetic Wand: Passing the magnetic wand past the EDIT key, from either data display, displays SETUP PAGE 1 as shown in Figure 5-2. The UP / DOWN keys maneuver the pointer while EDIT enters sub- levels of menu items.

  • Page 23: System Configuration Menus

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B L E L I N P U T L E L I N P U T S y s t e m C o n f i g . > L C D C o n t r a s t A d j .

  • Page 24: Temp Compensation

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B negative values below the Fault set point will still cause the Fault alarm to trip. The 4-20mA output always locks at 4mA when the reading is negative. Temp Compensation allows user to adjust the gain and offset that is applied to sensors to compensate for temperature drift.

  • Page 25: Tx Sensor Life

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B TX Sensor Life set for YES, causes the SenSmart 3000 4-20mA output to transmit a sensor life value after successful calibrations during the CAL PURGE delay (see section 4.1). Normal operation is the SenSmart 3000 transmits 4mA during the CAL PURGE delay. But with TX Sensor Life = YES it transmits 4mA for the first 10-seconds, then for 5-seconds transmits a value between 4mA and 5mA, with 4mA equal to 0% sensor life and 5mA equal to 100% sensor life (see Figure 5-5).

  • Page 26: Relay Configuration (If Equipped)

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B Dead-Band has a minimum value of 1% and a maximum value of 10%. It is useful for preventing alarm cycling when the monitored value is hovering around the set point. EXAMPLE: With a range of 0-100 ppm, if Dead-Band equals 5% and the set point is 20 ppm, after tripping at 20 ppm the value must drop below 15 ppm to reset.

  • Page 27: Clock/Delay Setup

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B I N S T A L L N E W S E N S OR I N S T A L L N E W S E N S OR S E N S OR S E T T I N GS / I N F O EDIT I n s t a l l...

  • Page 28: Lcd Contrast Adj

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B LCD Contrast Adj: LCD Contrast Adj. may be set for optimum viewing using the menu shown in Figure 5-10. C ON T R A S T U P / D OWN c h a n g e N E X T E X I T...

  • Page 29: Modbus Register And Function Code Summary

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B R S 4 8 5 MOD B U S S E T U P R T U A d d r e s s B a u d R a t e 9 6 0 0 P a r i t y N o n e...
  • Page 30 SenSmart 3000 User's Manual Document: UM-1003 Revision Level B (16 bit status words; bit assignment for each channel) ALARM1_BELOW BIT0 ALARM2_BELOW BIT1 ALARM3_BELOW BIT2 ALARM1_LATCH BIT3 ALARM2_LATCH BIT4 ALARM3_LATCH BIT5 ALARM3_ACTIVE BIT6 CHANNEL_DISABLED BIT7 CHANNEL_CAL BIT8 CHANNEL_LINEARIZE BIT9 FAULT_RELAY_LATCH BIT10 DISPLAY_NEGATIVE BIT11 TRANSMIT SENSOR LIFE ENABLED...
  • Page 31 SenSmart 3000 User's Manual Document: UM-1003 Revision Level B Memory ASCII Strings: User Info Chan 1 40401-40408 User Info Chan 2 40409-40416 16 ASCII characters (2 per register) assigned to the unit identifier read as bytes. Chan 1 ASCII Reading 40417-40419 Chan 2 ASCII Reading 40420-40422...

  • Page 32: System Security

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B Chan 2 Zero Real 41025 Chan 2 Zero Divisor 41026 Chan 2 Span Real 41027 Chan 2 Span Divisor 41028 Chan 2 Fault Real 41029 Chan 2 Fault Divisor 41030 Chan 2 Alarm 1 Real 41031 Chan 2 Alarm 1 Divisor 41032...

  • Page 33: Set Balance / Set Sensor Voltage (Technicians Only!)

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B configuration prior to altering any Technical menus in case Restore is required later (see section 5.3). The TECHNICIAN ONLY menu group contains items that are factory configured depending upon the type sensor and input connected to the SenSmart 3000. They should not be tampered with after installation.

  • Page 34: Set Gain To Unity (Technicians Only!)

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B remote from the SenSmart 3000 or if a new sensor is installed. Other input type entries draw a line through these menus and they are inactive. SenSmart 3000 bridge sensors may be from 2 to 6 volts excitation voltage at the sensor.

  • Page 35: Simple Sensor Input Type (Technicians Only!)

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B Simple Sensor Input Type (Technicians only!): Smart sensors automatically configure Input Type. Simple inputs must be configured manually using the Input Type menu. Input Type configures SenSmart 3000 hardware to accept bridge sensors, positive coefficient electrochemical sensors, negative coefficient electrochemical sensors or 4-20 mA inputs.

  • Page 36: Raw Min / Max Counts (Technicians Only!)

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B Analyzer range of 500 – 1000 BTU’s. In this case, 0% of full scale equals 500 BTU’s and may be the desired zero calibration point. Other upscale values may also be used for the zero calibration point by setting this menu item to the desired engineering unit value.

  • Page 37: Special Order; 18Vac Primary Power Supply Option

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B L E L I N P U T L E L / MOS T E MP L C D C o n t r a s t A d j . >...

  • Page 38: Special Order; 4-20Ma Input To Bridge Channel

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B 5-Watt +24VDC Output 4-20mA (Unregulated) Transmitter 2-Wire +4-20mA Input 3-Wire 10ohm R13 Amplifier 24VDC Common I/O Power Supply board with 18VAC Power Input 4-20mA OUTPUT (Order 10-0233-18VAC) Microcontroller Bridge Rectifier 18VAC~ Filter Electrochemical Capacitor...

  • Page 39: 4-20Ma Input Marker / Message (Technicians Only!)

    SenSmart 3000 User's Manual Document: UM-1003 Revision Level B +24VDC 4-20mA Transmitter 2-Wire +4-20mA Input 3-Wire 10 ohm R13 Amplifier 24VDC Common I/O Power Supply with 4-20mA Input (without catbead) Order 10-0233-4-20mA Microcontroller +24VDC Electrochemical +4-20mA OUTPUT +4-20mA OUTPUT 24VDC Common Amplifier Field Monitor...
  • Page 40 SenSmart 3000 User's Manual Document: UM-1003 Revision Level B events. Once detected, the SenSmart 3000 transmits a constant mA output equal to the Marker value. Entering YES in the Marker Active menu also activates Marker TX LED, Mark Level, and Mark As menus.
  • Page 41 SenSmart 3000 User's Manual Document: UM-1003 Revision Level B Before beginning calibration use the R.C. Systems Inc. MILLENIUM Insulation Tube to cover outer cylinder holes and connect a clean air source to the sensor’s calibration port for a minimum of 3 minutes. To enter into the calibration mode the calibration wire must be connected to negative (common of the power supply) for ten (10) seconds, upon release the sensor will automatically enter the zero calibration routine.
  • Page 42 SenSmart 3000 User's Manual Document: UM-1003 Revision Level B REVISION HISTORY Revision 3.4 3/27/2012 Update Sections 3.1.4, 3.1.5, 5.3, 5.10 and added Revision History page Revision 3.5 4/18/2013 Update Figures 2-2 and 2-2a...
