Summary of Contents for Gemtek WiMAX WIXFBR-103
- Page 1 User Manual Gemtek WiMAX Modem (WIXFBR-103) Manual Version: 0.1 Manual Date: Feb. 2010 Software Version: TBD Software Date: TBD...
-
Page 2: Copyright
User Manual Copyright This DOCUMENT is copyrighted with all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission. Notice The information in this manual is subject to change without notice. -
Page 3: Table Of Contents
User Manual Contents Copyright .......................................... 2 Notice ..........................................2 Contents ............................................ 3 About this Guide ........................................6 Purpose ..........................................6 Prerequisite Skills and Knowledge ................................6 Conventions Used in this Document ..............................7 Chapter 1 – Introduction ....................................8 Product Overview ......................................8 Product Package ...................................... - Page 4 User Manual Connector Details ......................................11 Visual Indications ......................................12 Chapter 2 – Reference Manual ..................................15 Chapter 3 – Web Interface ....................................19 Chapter 4 – Menu Details ....................................21 Setup ..........................................22 Setup | Password ..........................................22 Setup | Device Time ........................................24 Setup | Device Name ........................................
- Page 5 User Manual Local Address | Lease Reservation ................................... 35 Advance ........................................... 36 Advance | DMZ ..........................................36 Port Forwarding | Forwarding ..................................... 38 Control Panel ......................................... 39 Control Panel | Software ......................................39 Control Panel | About ........................................40 Status ..........................................41 Status | WiMAX Status ........................................
-
Page 6: About This Guide
User Manual About this Guide Purpose This document provides information and procedures on installation, setup, and configuration of WiMAX 802.16e INDOOR CPE. Prerequisite Skills and Knowledge To use this document effectively, you should have a working knowledge of Local Area Networking (LAN) concepts and wireless Internet access infrastructures. -
Page 7: Conventions Used In This Document
User Manual Conventions Used in this Document The following typographic conventions and symbols are used throughout this document: Very important information. Failure to observe this may result in personnel injury, damage to the device software and user PC software. It may also result in THE CPE device not being able to connect to the network. -
Page 8: Chapter 1 - Introduction

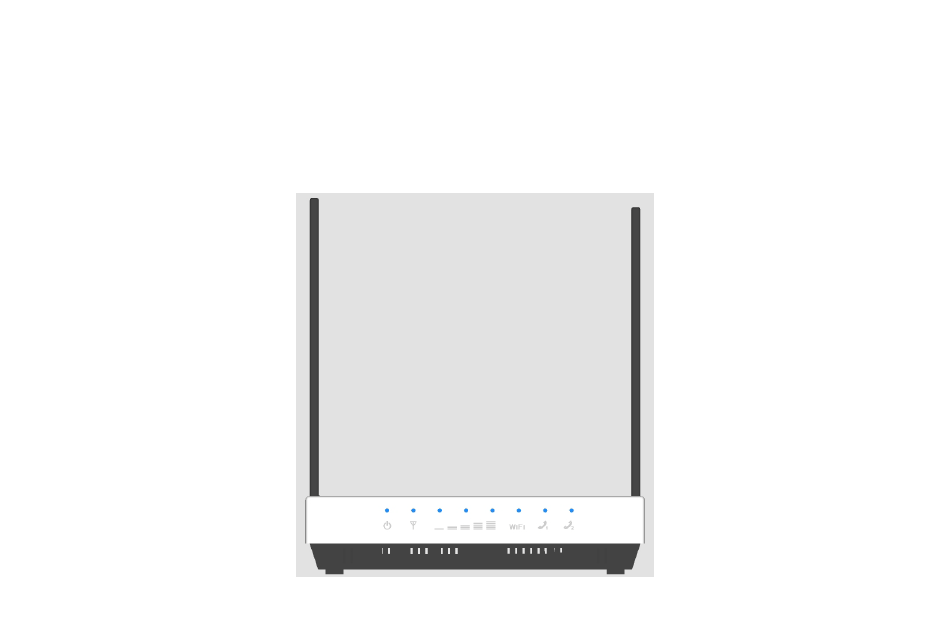

User Manual Chapter 1 – Introduction Product Overview WiMAX 802.16e INDOOR CPE (Customer-Premises Equipment) is a comprehensive network equipment to combine 802.16e internet connectivity and VoIP service. It is also the best solution for media-centric applications like IPTV, gaming, and Voice over IP telephony Product Package Item 802.16e WiMAX INDOOR CPE... -
Page 9: Safety Information
User Manual Safety information Failure to observe the following may result in personnel injury or may result in device damage. Avoid device expose to high temperature or humidity. Always keep the device dry. Do not spill food or liquids on the device. Do not clean the device with wet cloth or with any liquids like water, ... -
Page 10: Tips For Optimal Device Performance
User Manual Do not drop, knock or shake the device. Rough handling can break internal electronic boards. Do not use the device in areas where the local regulations prohibit its use. This device is a wireless RF device. RF Energy may affect operation of medical devices such as personal pace ... -
Page 11: Connector Details
User Manual Connector Details Connector View RESET Button (Reboot/ Reset) Press and hold the Reset button for less than 5 DC-12V Port (Power Adapter Socket) seconds to reboot the device. Or press and hold Connect the power adapter provided with the Reset button for more than 5 seconds to set the CPE. -
Page 12: Visual Indications
User Manual Visual Indications Visual Indications Power CPE is powered on and in working condition CPE is Powered OFF Flashing CPE is booting or FW upgrading WiMAX CPE connected to base station Connection CPE does not connected to base station... - Page 13 User Manual WiMAX Signal Display Signal Strength Strength No Signal WiFi WiFi enabled Connection WiFi disabled VoIP VoIP (voice) is configured and available after successful registration to the Connection SIP server VoIP (voice) is not configured or CPE is not connected to the Network or SIP registration time expired or SIP registration period Flashing Voicemail waiting...
- Page 14 User Manual Sensor CPE is Powered OFF when the sensor is covered...
-
Page 15: Chapter 2 - Reference Manual
User Manual Chapter 2 – Reference Manual Step1: Place your CPE on a flat work surface. Step2: Connect the device LAN port to your PC with a RJ-45 Ethernet cable that is supplied. Step3: Connect a standard telephone to the device TELEPHONE port using a standard phone cable. - Page 16 User Manual Step6: The device will be switched ON after PSU attached with the CPE. Please wait for few seconds to let the boot process complete. Step7: Select Local Area Connection Status from Windows task bar and click Properties. Step8: Double click on the Internet Protocol (TCP/IP).
- Page 17 User Manual Step9: Select Obtain IP address automatically and click Local Area Connection Properties...
- Page 18 User Manual Step10: By now the CPE should have got connected to the WiMAX Base station successfully. This can be verified by observing the five signal strength LEDs (Please refer Visual Indications section in Chapter 1 of this manual to find the location of these LEDs on the device).
-
Page 19: Chapter 3 - Web Interface
User Manual Chapter 3 – Web Interface The device has Web interface facility to allow the user to monitor/ configure the device. For accessing the device through web interface, follow the below steps. Open the Web browser in your PC (For example: Internet Explorer) and type the default IP address of the CPE i.e http://192.168.254.251. - Page 20 User Manual to access the web management interface. The default Password is Alvarion. Step3: The page shown here gets displayed in your browser. You may access various parameters of THE CPE Welcome Page the device using the menus displayed in the page. (Please refer to the excel file for the screenshot) THE CPE User Interface...
-
Page 21: Chapter 4 - Menu Details
User Manual Chapter 4 – Menu Details After login to WiMAX 802.16e INDOOR CPE, following menus accessable to user. The main menu is located at the left side of the screen and each main menu item contains sub-items on the top right of the screen. -
Page 22: Setup
User Manual Setup Setup | Password Select Setup > Password to change the password for the CPE using this sub-menu. New Login Password: if you wish to change password for the CPE, enter a new password (You may enter a Maximum of 20 ASCII Printable case sensitive characters). - Page 23 User Manual window can be saved in the device by pressing the Apply button Please ensure that the Apply button is pressed every time whenever the settings are changed. Forgot your password? Press and hold the Reset button (please see “Connector details” section in CHAPTER 1 of this document to find the location of this button on the device) for more than 5 seconds to reset to factory default.
-
Page 24: Setup | Device Time
User Manual Setup | Device Time Select Setup > Device Time to set the time zone. Current Local Time: Display current local time. Time Zone: Select the proper time zone for your location on the drop down menu. Auto Adjust for Daylight Saving Time: Please enable this option if your location observes Daylight Savings Time. -
Page 25: Setup | Device Name
User Manual Setup | Device Name Select Setup > Device Name to define a specific name for your device, so that you can login to this device from any PC on your internal network by entering the device name on the address bar. -
Page 26: Setup | Restore To Factory
User Manual Setup | Restore To Factory Select Setup > Restore To Factory to clear all users’ configuration and restore to factory default settings. Apply: Click this button to reset the device settings to factory default. Restore TO Factory(please refer to the excel file for the screenshot) -
Page 27: Internet
User Manual Internet Internet | Authentication Internet > authentication Select setup authentication method. Authentication Method: Select the authentication protocol, either EAP-TTLS-MACHAPV2 or None. User Name: Enter the username provided by Alvarion. Password: Enter the password provided by Alvarion. Authentication (please refer to the excel file for the screenshot) Password Confirmation: Re-enter the password again for confirmation. - Page 28 User Manual Undo: Click this button to clear the changes that you have made to this window. Apply button: The changes that you have made to this window can be saved in the device by pressing the Apply button. None Authentication(please refer to the excel file for the screenshot) Do not make any changes to the settings in this page unless Alvarion instructs you to do so.
-
Page 29: Internet | Security
User Manual Internet | Security Select Internet > Security to configure the firewall feature that is built-in to the device. The firewall feature can be used to block unauthorized access while allowing only the authorized communications from the Internet network. This feature also allows the device to be managed over the Internet by authorized personnel. - Page 30 User Manual ping request from internet if this option is enabled. Undo: Click this button to clear the changes that you have made to this window. Apply: The changes that you have made to this window can be saved in the device by pressing the Apply button. The option, Enable ping from internet, is for testing and we strongly recommend you to keep this option in disable mode unless Alvarion instructs you keep this option in enable mode.
-
Page 31: Internet | Dynamic Dns
User Manual Internet | Dynamic DNS Select Internet > Dynamic DNS to configure the DDNS settings. Enable DDNS: Enable this checkbox to enable the Dynamic Domain Name Service of the device. DDNS Service Provider: Select the address of DDNS service provider on the drop-down menu. Dynamic DNS(please refer to the excel file for the Undo: Click this button to clear the changes that you have screenshot) -
Page 32: Local Address
User Manual Local Address The changes to this shall only be carried by your Network administrator familiar with the functionality of these settings. Local Address | DHCP Server The device has built-in DHCP server that can be used for managing the allotment of IP address for the devices connected to the LAN Port of the device. - Page 33 User Manual DHCP Lease Time: Specify the IP address renewal time. Undo: Click this button to clear the changes that you have made to this window. Apply: The changes that you have made to this window can be saved in the device by pressing the Apply button.
-
Page 34: Local Address | Lease Status
User Manual Local Address | Lease Status Select Local Address > Lease Status to view the current status of client host PC such as host name, host PC’s MAC address, IP address, and remaining lease time. Refresh: Click this button to display the updated information of the client host PC. -
Page 35: Local Address | Lease Reservation
User Manual Local Address | Lease Reservation Select Local Address > Lease Reservation to assign the specific IP addresses to the specific client device connected to the LAN port. Add button: Click this to add lease reservation information. Del button: Click this to delete the selected lease reservation information. -
Page 36: Advance
User Manual Advance Advance | DMZ Select Advance > DMZ to forward the network traffic to specific hosts based on the protocol and port number. It is used to play Internet games or provide local services (such as web hosting) for a LAN group Enable UPnP IGD: When this option is enabled, certain Windows applications would setup the port forwarding rule dynamically. - Page 37 User Manual Apply: The changes that you have made to this window can be saved in the device by pressing the Apply button.
-
Page 38: Port Forwarding | Forwarding
User Manual Port Forwarding | Forwarding Select Port Forwarding > Forwarding to manage the additional port forwarding rules. Add: Use this button to add new port forwarding rule. When adding a new port forwarding rule, please select TCP or UDP, and then enter port and IP information such as WAN port range, LAN IP address, and LAN port range. -
Page 39: Control Panel
User Manual Control Panel Do not use this option unless Alvarion instructs you to do so. Control Panel | Software Select Control Panel > Software to manage the software of THE CPE. Click Browse to select IPKG file, then click Upgrade to install the selected IPKG. -
Page 40: Control Panel | About
User Manual Control Panel | About Select Control Panel > About to display the basic information of the CPE such as: Service Provider, Product Name, WAN port MAC address, LAN Port MAC address, device Model ID, device hardware version and Serial Number. About(please refer to the excel file for the screenshot) -
Page 41: Status
User Manual Status Status | WiMAX Status Select Status > WiMAX Status to display the WiMAX connection status of THE CPE to the WiMAX Network. Refresh: Click this button to display the current WiMAX connection status. Auto: Clicking this button will update the status information periodically WiMAX Status(please refer to the excel file for the screenshot) -
Page 42: Status | Device Status
User Manual Status | Device Status Select Status > Device Status to display the status of the CPE such as system uptime and WAN information. Refresh: Click this button to update the current device status. Auto: Clicking this button will update the status information periodically. -
Page 43: Reboot / Reconnect
User Manual Reboot / Reconnect There are 2 buttons on the lower left corner. Clicking Reboot will restart your CPE. When the Reconnect button is pressed the device will attempt reconnection to the Base Station. Reboot/Reconnect(please refer to the excel file for the screenshot) - Page 44 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
