ETC II Network Communicator
Installation and Operation Manual
BG0594 Rev. A2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETC II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Satec ETC II

Summary of Contents for Satec ETC II

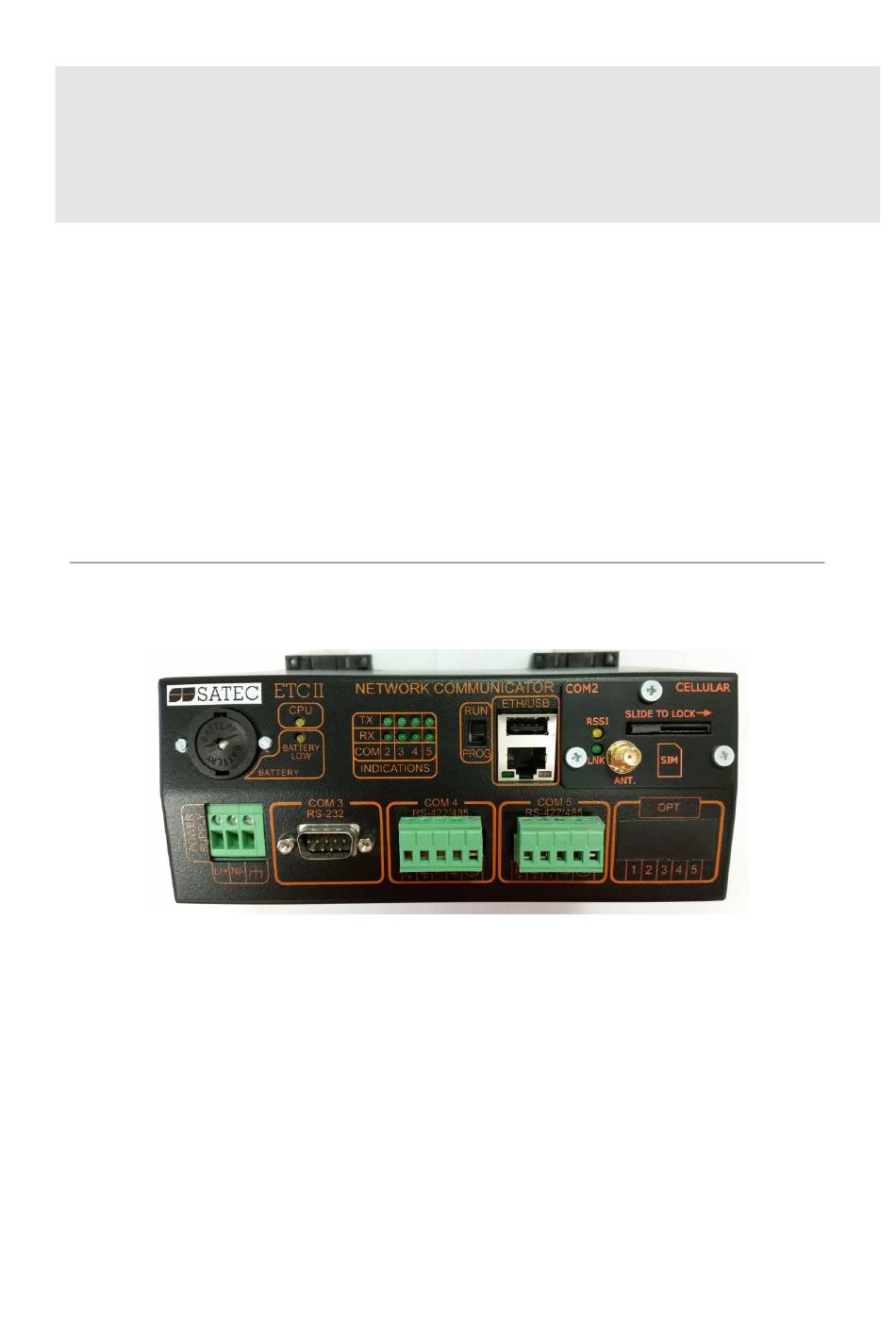

  • Page 1 ETC II Network Communicator Installation and Operation Manual BG0594 Rev. A2...
  • Page 2 During operation of the device, hazardous voltages are present on input terminals. Failure to observe precautions can result in serious or even fatal injury or damage to equipment. All trademarks are property of their respective owners. Copyright SATEC Ltd.  2017 ETC II Network Communicator...

  • Page 3: Table Of Contents

    Routing Messages over Slave Networks ............15 Shared Device Access .................. 16 ETC II Network Applications ................ 16 ETC II Clock ....................19 Chapter 4 Connecting to the ETC II ..........20 Using HyperTerminal ................. 20 Running HyperTerminal ................20 Opening a Terminal Session ................. 21 Closing a Terminal Session ................
  • Page 4 Configuring Gateway Options ............40 Configuring Device Routing Table ............ 42 Configuring eXpertPower Client ............43 Configuring Data Server ..............44 Chapter 6 Upgrading Device Firmware .......... 50 Chapter 7 Device Maintenance ............51 Appendix Technical Specifications ..........53 ETC II Network Communicator...

  • Page 5: Chapter 1 General Information

    ETC II exchanges without waiting for a response from slow serial and wireless devices. The application can also write data to slave devices via the ETC II exchanges instead of waiting until a remote device is accessible. The Data server may be programmed to monitor the slave device’s status registers for specific events and to record...

  • Page 6: Chapter 2 Installation

    Chapter 2 Installation Mechanical Installation The ETC II can be located on a table top, or be mounted on a 35-mm DIN rail or on a panel. See Figures 2-2 through 2-4 for mounting instructions. Figure 2-1 shows the device dimensions.
  • Page 7 ‎ C hapter 2 Installation Mechanical Installation Figure 2-3 Din Rail Mounting Figure 2-4 Panel Mounting ETC II Network Communicator...

  • Page 8: Electrical Installation

    Serial Port Connection The COM3 RS-232 service port is normally used for servicing and setting up the ETC II. It can also be used as a slave port for serial-to-serial communications via the ETC II gateway. The COM4 and optional COM5 gateway ports are used for connecting the ETC II to the RS-422/RS-485 slave networks with up to 32 devices on each network.
  • Page 9 ‎ C hapter 2 Installation Electrical Installation ETC II Figure 2-6 Serial Network Connection COM3 RS-232 Connection ETC II Figure 2-7 Simple RS-232 3-Wire Connection, 9-pin Female Connector ETC II Figure 2-8 Simple RS-232 3-Wire Connection, 25-pin Connector ETC II Network Communicator...
  • Page 10 ‎ C hapter 2 Installation Electrical Installation COM4/COM5 RS-422/RS-485 Connection ETC II Figure 2-9 Multidrop RS-422 Connection ETC II Figure 2-10 Multidrop RS-485 Connection ETC II Figure 2-11 Multidrop RS-485 Connection ETC II Network Communicator...

  • Page 11: Internet Connections

     Connecting a device with the factory-set IP address to the Ethernet network can disrupt communications if the IP address exists on the network. Change the IP address in your ETC II as instructed in Section 4 before connecting a device to the network.

  • Page 12: Chapter 3 Operating The Etc Ii

    Chapter 3 Operating the ETC II Controls and Indicators PROG-RUN Switch The ETC II has a PROG-RUN switch that puts the device into program mode for local servicing and programming. The switch must be in the RUN position for normal device operation.

  • Page 13: Program Mode

    ‎ C hapter 3 Operating the ETC II Using the ETC II To put the ETC II into operational mode, set the PROG-RUN switch in the RUN position. Program Mode In program mode, the COM3 port operates as a service port that allows the...

  • Page 14: Master Network Connections

    In the device routing table, specify the IP addresses for Internet devices connected to the ETC II. See Configuring Device Routing Table Chapter 5 for more information. Enable the routing table in your ETC II via the ETC II Gateway Options Setup (see Configuring Gateway Options in Chapter 5).

  • Page 15: Routing Messages Over Slave Networks

    The factory-set ETC II network address is 99. It can be moved to another address via the ETC II Gateway Options setup if you wish to use the default ETC II address for addressing your slave devices.

  • Page 16: Shared Device Access

    ETC II. Configuring Device Routing Table in Chapter 5 for information on programming the device routing table. Enable the routing table in your ETC II via the ETC II Gateway Options Setup (see Configuring Gateway Options in Chapter 5).
  • Page 17 Using the ETC II Data Server The ETC II has an embedded Data server that allows the user to save time required for polling multiple devices, especially via slow serial interfaces. It utilizes the ETC II non-volatile memory for automatic data acquisition.
  • Page 18 The Data server provides continuous monitoring events asserted by the ET2002 digital inputs and gives notification to the eXpertPower server. Whenever the Data server detects a change in the status of the ETC II digital inputs, it records an event record to the Event log file. If the eXpertPower service is enabled in the ETC II, this event initiates a connection to the eXpertPower server.

  • Page 19: Etc Ii Clock

    Connections to the eXpertPower server are normally handled on a periodic basis, but can also be initiated via the ETC II event exchanges and the ETC II digital inputs DI1-DI4 to give an alert for specific events. Configuring eXpertPower Client in Chapter 5 for more information on configuring the eXpertPower client in your ETC II.

  • Page 20: Chapter 4 Connecting To The Etc Ii

    > Communications menu. Type a name for your new connection and click OK. In the “Connect Using” box, select the PC COM port to which your ETC II is connected and click OK. Select 19200 bps in the “Bits per second” box, select “Xon/Xoff” in the “Flow control box”, and then click OK.

  • Page 21: Opening A Terminal Session

    ‎ C hapter 4 Connecting to the ETC II Using HyperTerminal From the File menu, select Save to save your settings for the ETC II session. When you next open a session and the New Connection dialog appears, click Cancel, select Open from the File menu, and then double-click on your session file.

  • Page 22: Closing A Terminal Session

    If your login was successful, you are not prompted for the password again until you close the terminal session. The default ETC II password is 0 unless you have changed it. A password is always required for a terminal session regardless of whether the communications security is enabled or disabled.

  • Page 23: Running The Telnet Client

    ‎ C hapter 4 Connecting to the ETC II Using Telnet Select TCP/IP (Winsock) in the “Connect Using” box, type the ETC II IP address in the “Host address” box, and set the port number to 5023. Click OK. Running the Telnet Client From the Start menu, select Run, type telnet and click OK.

  • Page 24: Opening A Telnet Session

    ‎ C hapter 4 Connecting to the ETC II Using Telnet Type open followed by the ETC II IP address, followed by 5023 as the ETC II port number, for example: Microsoft Telnet>open 192.168.0.203 5023 Opening a Telnet Session When a telnet connection is established, the ETC II Telnet server prints a list of the available commands as follows: ETC Telnet Commands.

  • Page 25: Dial-Up Networking

    You can use Windows Dial-Up networking to access the ETC II via public telephone lines, either for connecting to the ETC II TCP server from PAS or your remote Internet application, or for connecting to the ETC II Telnet server from the Windows Telnet client.
  • Page 26 ‎ C hapter 4 Connecting to the ETC II Dial-Up Networking Select a modem you use to connect to the Internet and click Next. Type the telephone number of the ETC II modem and click Next. ETC II Network Communicator...
  • Page 27 ‎ C hapter 4 Connecting to the ETC II Dial-Up Networking Leave the user name and password boxes blank and click “Next”. In dial-in mode, the ETC II does not require the name and password to login. Type the connection name and click “Next”.

  • Page 28: Using Pas Software

    Later, you can use the name of your Dial-up connection in Internet applications to dial to the ETC II. For all Dial-up Internet connections, use the IP address you have defined in your ETC II for the modem interface via the Dial-Up Networking Setup (see Configuring Dial-Up Connections Chapter 5).

  • Page 29: Setting Up Communications

    “File name” box, click New, and then click OK. On the Instrument Setup tab, select “ETC II” in the “Model” box. Set the device address to 99 unless you have changed the ETC II default address in your device.
  • Page 30 Dial-Up Networking setup dialog in PAS (see Modem/GPRS IP Address in Setting-Up Dial-Up GPRS Network in Chapter 5) In the “Protocol” box, select the communications protocol for the ETC II GPRS TCP port. The host port is set ETC II Network Communicator...

  • Page 31: Setting Up The Etc Ii

    PAS allows you to prepare setup data for the ETC II offline without the need to have it connected to your PC. Select the ETC II site from the list box on the PAS toolbar, and then select the desired setup group from the Meter Setup menu. Click on the tab with the setup you want to create or modify, and then fill in the boxes with the desired configuration data.

  • Page 32: Authorization

    Download Setups from the Meter Setup menu. Uploading Setup from the ETC II To upload the setup from the ETC II to the site database, check the On-line button on the PAS toolbar, select the device site from the list box on the toolbar, and then select Upload Setups from the Meter Setup menu.

  • Page 33: Chapter 5 Setting Up The Etc Ii

    Changing Time and Date Using HyperTerminal or Telnet To view or change time or date in the ETC II, type time or date, and then press Enter. To change the time or date, type the new setting after the prompt and press Enter. To leave the time unchanged, just press Enter.

  • Page 34: Configuring Local Time Settings

    New: Using PAS Select the ETC II site from the list box on the PAS toolbar, check the On-line button, and then select RTC from the Monitor menu. Click Set to synchronize the ETC II clock with your PC’s clock.

  • Page 35: Configuring Serial Ports

    COM5 9600 8N Using PAS To enter the setup dialog, select the ETC II site from the list box on the PAS toolbar, select Communications Setup from the Meter Setup menu, and then click on the Serial Ports Setup tab. Select the desired device port in the “Port”...

  • Page 36: Configuring The Network

    ‎ C hapter 5 Setting Up the ETC II Configuring the Network To change the port settings, select desired port parameters, and then click Send. See Serial Port Connection in Chapter 3 for information on using serial ports and available options.
  • Page 37 See the table below for available port numbers. Using PAS To enter the Setup dialog, select the ETC II site from the list box on the PAS toolbar, select Communications Setup from the Meter Setup menu, and then click on the Network Setup tab.

  • Page 38: Configuring Dial-Up Connections

    NOTE: Starting with V21.5.4, the ETC II provides the permanent Modbus/TCP server on port 502. Selecting the TCP service port in the ETC II launches an additional server either on the DNP3/TCP port 20000, or on the SATEC ASCII/TCP port 5002, allowing simultaneous connections via the two ports.
  • Page 39 ‎ C hapter 5 Setting Up the ETC II Configuring Dial-Up Connections Wait for silence: the modem will wait for at least 5 seconds of silence before continuing with the next dial string parameter. Ignored: may be used to format the dial string.

  • Page 40: Configuring Gateway Options

    Chapter 3 for information on shared device accesses. Using PAS To enter the Setup dialog, select the ETC II site from the list box on the PAS toolbar, and then select ETC II Setup from the Meter Setup menu. ETC II Network Communicator...
  • Page 41 ‎ C hapter 5 Setting Up the ETC II The following table lists available options. Label Options Default Description ETC II Device Address 1-247 The ETC II network ID Device Address Range 1-247 The start slave device address Start on the gateway...

  • Page 42: Configuring Device Routing Table

    Configuring Device Routing Table Using PAS To enter the Setup dialog, select the ETC II site from the list box on the PAS toolbar, select ETC II Setup from the Meter Setup menu, and then click on the Device Routing Table tab.

  • Page 43: Configuring Expertpower Client

    Using PAS To enter the Setup dialog, select the ETC II site from the list box on the PAS toolbar, select Communication Setup from the Meter Setup menu, and then click on the ExpertPower Client Setup tab.

  • Page 44: Configuring Data Server

    ‎ C hapter 5 Setting Up the ETC II Configuring Data Server The following table lists available options. Parameter Options Default Description 207.232.60.18 The IP address of the XPW Server IP Address eXpertPower server XPW Server Port 0-65535 5001 The TCP service port of the...
  • Page 45 ‎ C hapter 5 Setting Up the ETC II Configuring Data Server Logging interval: polling interval units) New: Data Server Exchanges Data Server in Chapter 3 for more information on using Data server exchanges. To inspect the present configuration (to leave the settings unchanged, just press Enter) or configure the Data server exchanges: Type s and press Enter.
  • Page 46 Using PAS Data Server Options To enter the Setup dialog, select the ETC II site from the list box on the PAS toolbar, and then select ETC II Setup from the Meter Setup menu. The following table lists available Data server options.
  • Page 47 Check the “Polling Enabled” box to activate the exchange. Status Event Exchanges To enter the Setup dialog, select the ETC II site from the list box on the PAS toolbar, select ETC II Setup from the Meter Setup menu, and then click on the Status Event Exchanges tab.
  • Page 48 Write Data Exchanges To enter the Setup dialog, select the ETC II site from the list box on the PAS toolbar, select ETC II Setup from the Meter Setup menu, and then click on the Write Data Exchanges tab.
  • Page 49 Data Server in Chapter 3 for more information on using data exchanges. Refer to the ETC II Modbus Guide for information on how to put data into a write exchange and to trigger it via communications. The following table lists available options.

  • Page 50: Chapter 6 Upgrading Device Firmware

    When asked for the password, type the meter password, and click OK Wait until PAS completes downloading the file. It takes about 9-10 minutes at 115,200 bps via a serial port, or about 20 seconds via a USB port, to download the file to the ETC II ETC II Network Communicator...

  • Page 51: Chapter 7 Device Maintenance

    7-4 for replacement instructions.  Observe the battery polarity. The battery polarity appears on the inner part of the battery cover. Figure 7-1 Battery Housing Location of the Panel Figure 7-2 Battery Housing Cover Removal ETC II Network Communicator...
  • Page 52 ‎ C hapter 7 Device Maintenance Figure 7-3 Battery Removal Figure 7-4 Insertion of New Battery ETC II Network Communicator...

  • Page 53: Appendix Technical Specifications

    Isolation: 2,000 V RMS Connector type: DB9 female Baud rate: up to 115.2 kbps Supported protocols: Modbus RTU, Modbus ASCII and DNP3 COM4, COM5 RS-422/RS-485 optically isolated ports Isolation: 2,000 V RMS Connector type: removable, 5 pins ETC II Network Communicator...
  • Page 54 Wire size: up to 12 AWG (up to 2.5 mm Terminals pitch: 5 mm Baud rate: up to 115.2 kbps Supported protocols: Modbus RTU, SATEC ASCII and DNP3 Real-time Clock  Accuracy: typical error 15 seconds per month @ 25 Log Memory Onboard memory with battery backup: 4 Mbytes.
