Summary of Contents for Avigilon ACC-USB-PRO-JOY

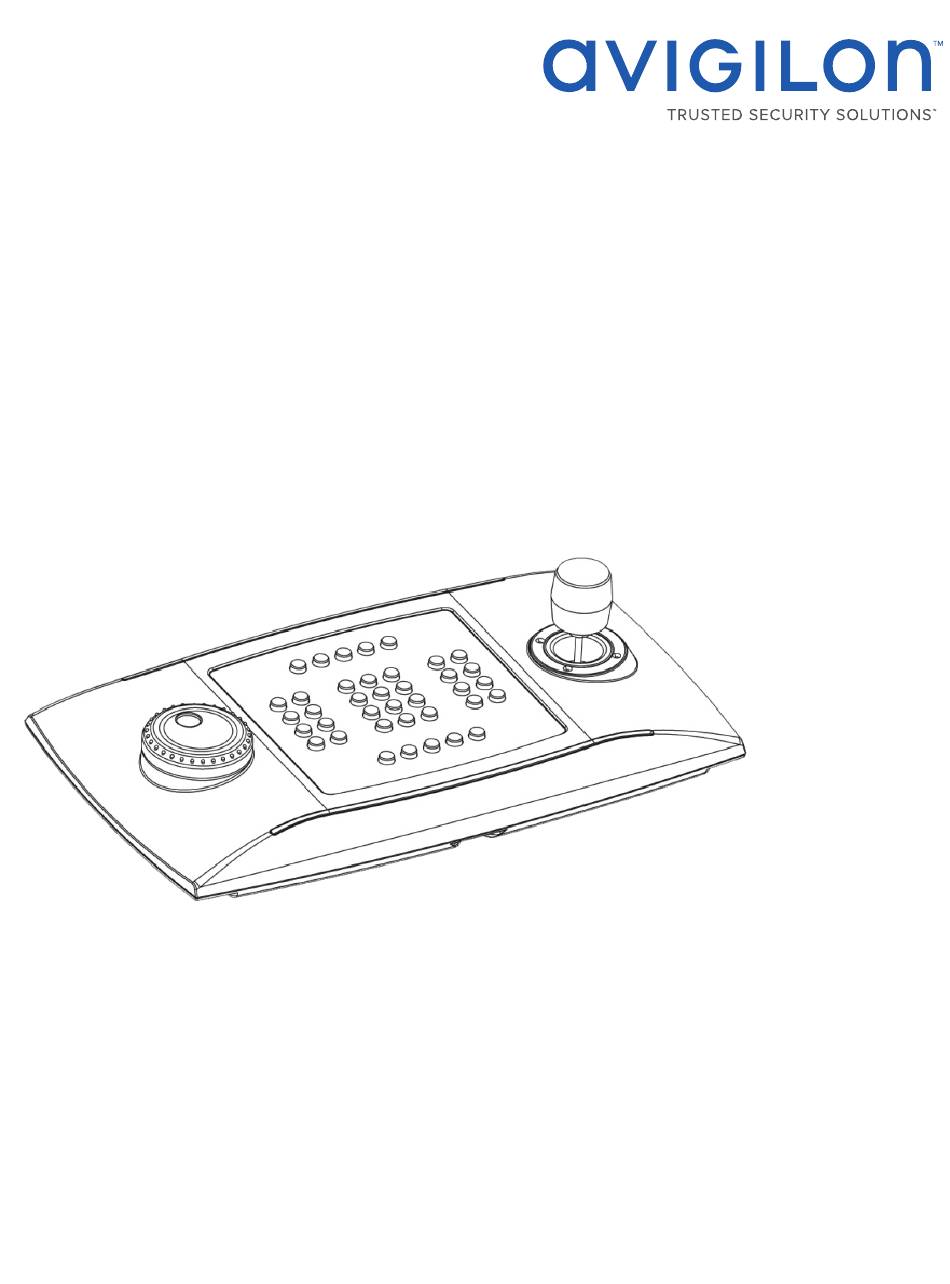

- Page 1 Installation Guide Avigilon™ USB Professional Joystick Keyboard: ACC-USB-PRO-JOY...
- Page 2 Do not expose to rain or moisture. For indoor use only. If used outdoors, an approved outdoor mounting adapter or enclosure is required. Consult with Avigilon for more information. Installation must be performed by qualified personnel only, and must conform to all local codes.
- Page 3 This Class B digital apparatus complies with Canadian ICES-003. Changes or modifications made to this equipment not expressly approved by Avigilon Corporation or parties authorized by Avigilon Corporation could void the user’s authority to operate this equipment.
- Page 4 Avigilon Corporation protects its innovations with patents issued in the United States of America and other jurisdictions worldwide (see avigilon.com/patents). Unless stated explicitly and in writing, no license is granted with respect to any copyright, industrial design, trademark, patent or other intellectual property rights of Avigilon Corporation or its licensors.
-
Page 5: Table Of Contents
Table of Contents Overview Top View Keypad Layout Installation Package Contents Installation Steps Installing the Keyboard Setting the Keyboard Orientation Installing the Keypad Cover Cleaning Body Troubleshooting Installation Error Joystick Malfunction Specifications Limited Warranty & Technical Support... -
Page 6: Overview
Overview Top View 1. Jog Shuttle Controls the speed of recorded video playback. Rotate the inside shuttle to move the recorded video one stop forward or back on the Timeline. Rotate the outside shuttle to move the recorded video quickly through the Timeline. 2. -
Page 7: Keypad Layout
Keypad Layout 1. View Buttons Controls the display of live and recorded video. 2. Image Panel Buttons Controls the features that can be triggered in an image panel, and can be used to select specific image panels and camera video. 3. -
Page 8: Installation
1. Rotate the keyboard until the joystick is on the left and the jog shuttle is on the right. 2. In the Avigilon Control Center Client software, open the Local Client Setup dialog box and click Joystick. 3. Select the Enable left-hand mode check box, then click OK. -
Page 9: Installing The Keypad Cover
Installing the Keypad Cover The keypad cover is removable so you can set the keyboard orientation. Once the keyboard is set to either right-hand mode or left-hand mode, install the keypad cover so the buttons are labeled correctly. 1. Ensure the keyboard is in the correct orientation: Right-hand mode: jog shuttle >... -
Page 10: Cleaning
Cleaning Body Use neutral soap diluted with water and a soft cloth to clean the keyboard body. CAUTION — Do not use strong or abrasive detergents which may irreparably damage the surface. Cleaning... -
Page 11: Troubleshooting
Troubleshooting Installation Error If an error occurs during installation, you can remove the keyboard from your system and attempt to install again. 1. Ensure your keyboard is connected to your computer. 2. On your computer, open the Windows Device Manager. 3. -
Page 12: Specifications
Specifications Mechanical Dimensions WxHxL 379 mm x 89 mm x 224 mm (15" x 3.5" x 8.8") Weight 1.35 kg (3.0 lbs) USB Cable Length 1.5 m (59") Electrical Power Source USB Port Power Consumption 350 mA max Environmental Operating Temperature 0°C to +45°C (32°F to 113°F) Certifications EN 55022 Class B, EN50130-4, EN, EN6100-6-3,... -
Page 13: Limited Warranty & Technical Support
Limited Warranty & Technical Support Avigilon warranty terms for this product is provided at avigilon.com/warranty. Warranty service and technical support can be obtained by contacting Avigilon Technical Support: avigilon.com/contact-us/. Limited Warranty & Technical Support...
