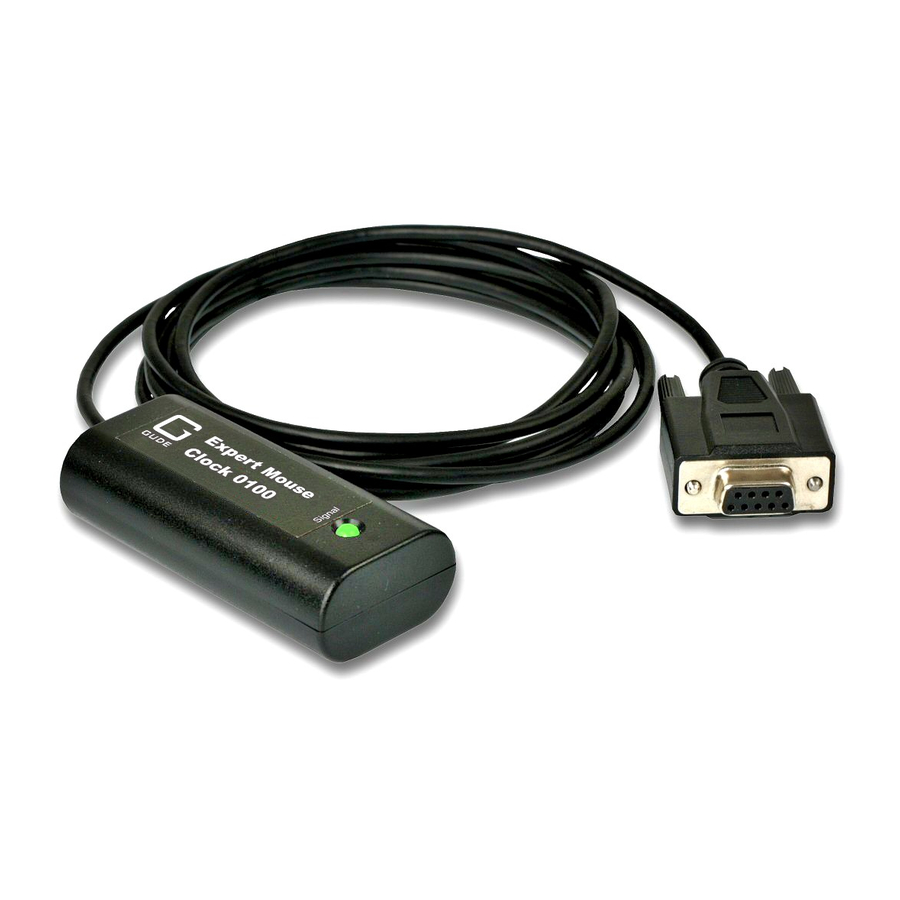

Gude Expert Mouse Clock 0100 User Manual

4. Alignment of Expert Mouse Clock

After successful hardware and software installation, LED
of Expert Mouse Clock shines green and fl ashes red once
per second. If
the LED does
not shine, ple-
ase check the
connection of
the device. Irre-
gular blinking
indicates a bad
reception or a
disturbance of
the signal. Mo-
nitors or other
electrical de-

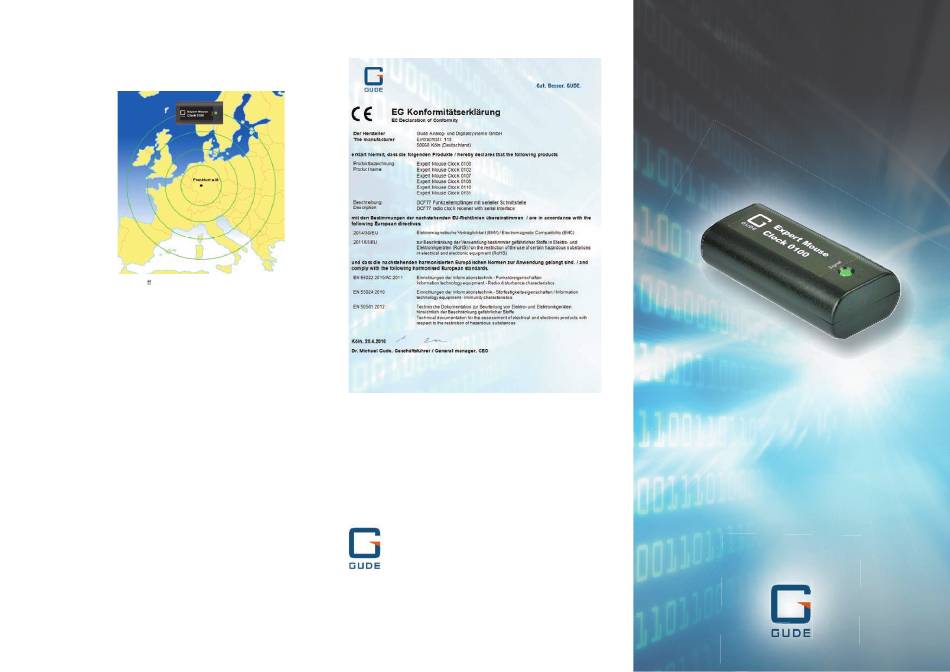

Fig. 2: Di usion of the DCF77 signal
vices can be the
Since the time signal spreads out in circles from
reason. In these
the sender in Frankfurt a. M., you will get best
signal reception if Expert Mouse Clock is placed
cases change
as shown in the image.
the position of
the module. Also rotating Expert Mouse Clock can improve
signal reception signifi cantly (compare Fig. 2). After having
found an optimum position, fi xate Expert Mouse Clock.
The PC clock will be synchronised after two or three minu-
tes.

5. Support

Our Windows software contains a help fi le. There you
fi nd detailed information on features and operations of
Expert Mouse Clock as well as a FAQ list. Under
nc/support/downloads the latest driver and software of
Expert Mouse Clock is available for download. For further
questions, please have a look at gude.info/wiki
to contact our service team.

6. EU Declaration of Conformity

gude.info/
or feel free
Gude Analog- und
Digitalsysteme GmbH
Eintrachtstrasse 113
50668 Köln
Good. Great. GUDE.
T
+49.221.912 90 97
F +49.221.912 90 98
mail@gude.info
www.gude.info
v.0.41
Manual
Expert Mouse Clock 0100,
102, 0107, 0108, 0131
DCF77 Time Receivers for the PC
