Kamco COMBIMAG User Manual

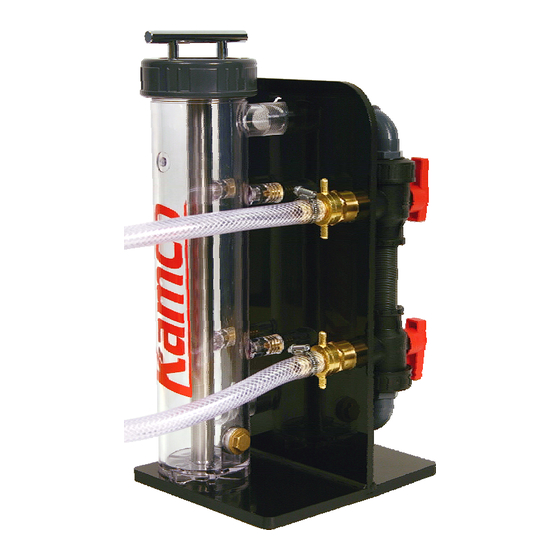

The CombiMag filter increases power flushing
efficiency by removing circulating black iron
oxide contamination from the system water. The
filter is simply installed in line between the
heating system and the power flushing pump.
The CombiMag controls the flow of water to give
a high residence time within the cylinder, to
ensure that the maximum amount of black iron
oxide is extracted from the water by the
powerful magnet.
The design is such that even at maximum
capacity, there is always a clear passage for the
circulating water.
The transparent cylinder enables progress of a
power flush to be visually monitored, and
enables the engineer to quickly check if the
magnet requires cleaning.
The built in bypass enables the magnet to be
cleaned without the need to temporarily stop the
power flushing process.
Issue: July 2008
COMBIMAG POWER FLUSHING FILTER
Operating Instructions – CombiMag
Benefits
Reduces dumping time by removing solids from
the water whilst circulating.
Collects circulating deposits that could lead to
blockages in restricted areas, and prevents
them re-entering the system.
Protects the boiler during power flush.
By-pass enables the magnet to be inspected
without the need to interrupt the power flush.
Reduces environmental contamination by
collecting the iron oxide and reducing the
amount of water consumed.
Provides an impressive
visual aid to both the
householder and the
engineer by showing the
quantity of sludge removed
from the system, and
confirming the need for a power flush.
Demonstrates why a permanently installed
magnetic filter may be beneficial.
Specification
Magnet: 11,000 gauss neodymium rare earth
magnet, sleeved in stainless steel.
Maximum magnetic iron oxide capacity: 2.1 kg
Long water residence time within the cylinder.
Collects small as well as large particles.
Dual three-port by-pass valve system.
Wipe clean magnetic
surface to minimise
cleaning time and
effort.
