FUNCTION
The LM2 Lamp Module is a high quality plug-in home
automation load controller that is capable of controlling two
channels of 120VAC incandescent lamps based on digital
commands received over the power wiring from a remote
UPB (Universal Powerline Bus) controller. The module will
turn lamps ON and OFF, and will also act as a light dimmer.
UPB controllers and modules can be freely located anywhere
throughout the home. No additional wiring is required and
no radio frequency signals are used for communication.
IMPORTANT SAFETY INSTRUCTIONS
When using electrical products, basic safety precautions
should always be followed, including the following:
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
2. Keep away from water. If the product comes in contact
with water or other liquid, turn off the circuit breaker and
unplug the product immediately.
3. Never use products that have been dropped or
damaged.
4. Do not use this product outdoors.
5. Do not use this product for other than its intended
purpose.
6. Do not connect multiple lamps that, when combined,
exceed the maximum load ratings of the product.
7. To avoid any risk of fire, burns, personal injury or electric
shock, install this product out of the reach of small
children.
8. Do not cover this product with any material when in use.
9. This product uses grounded plugs and sockets to reduce
the risk of electric shock. These plugs and sockets fit only
one way. If they do not fit, consult an electrician.
10. SAVE THESE INSTRUCTIONS.
Model: LM2
Lamp Module
INSTALLATION
The Lamp Module is designed for indoor use with devices that
plug into a grounded power outlet. To install the LM2 module:
1. Locate the lamp(s) to be controlled and unplug them from

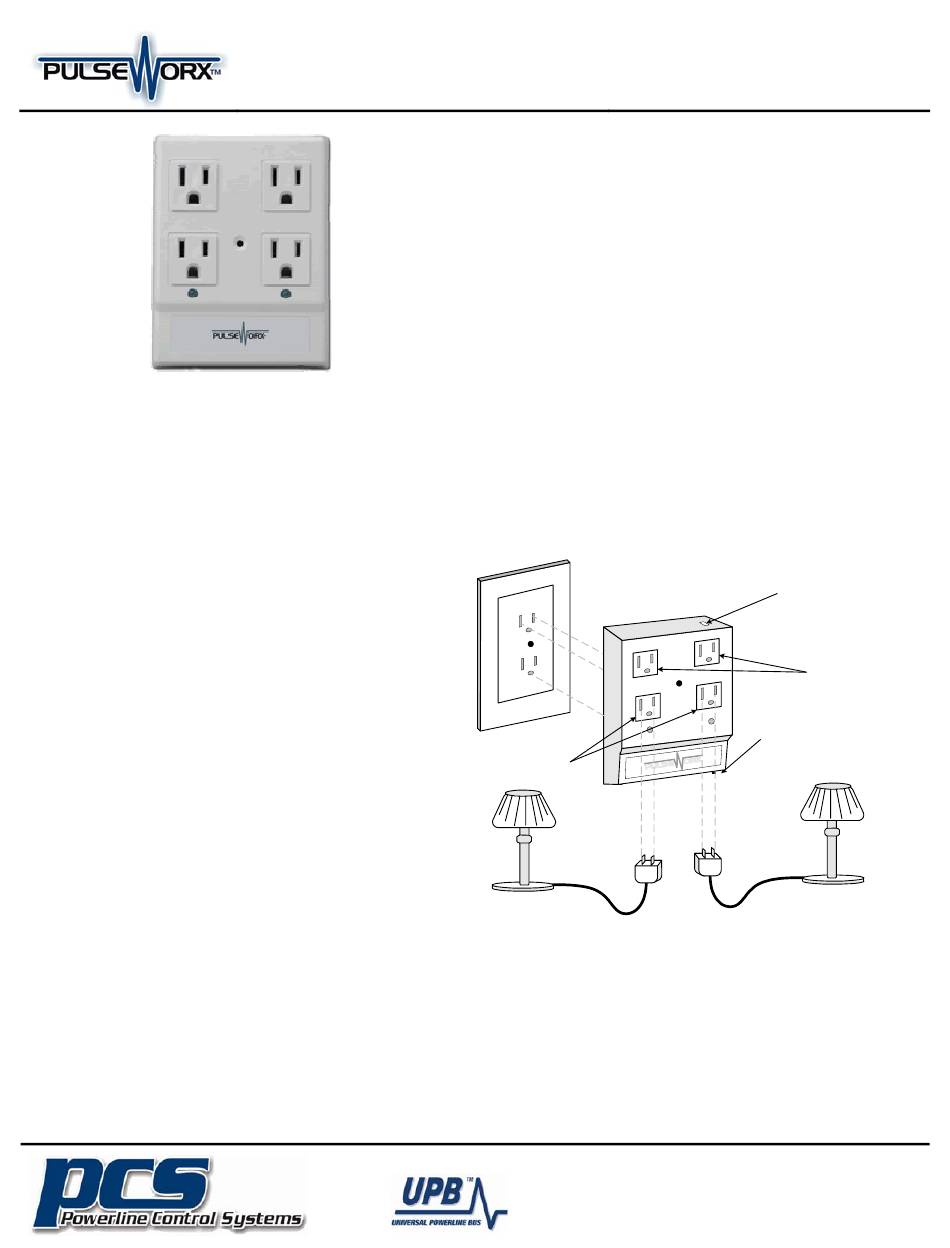

2. Plug the LM2 into the wall outlet (see illustration below). An
3. Plug the lamp(s) into the socket on the bottom of the lamp
4. Turn the lamp power switch(es) to their ON position.
If desired, other devices can be plugged into the pass-thru outlet
sockets on the front of the lamp module, which are always
powered.
CAUTION: Do not insert metal objects into the module while it is
connected to power.
The Inventors Of:
Installation Guide and
Owner's Manual
the wall outlet.
optional screw is provided for securing the LM2 to the
center screw hole of the wall outlet.
module. The lamp rating (or combined rating of multiple
connected lamps) must not exceed 800 watts.
Wall
Outlet
Controlled
Outlets
19201 Parthenia St. Suite J
Northridge, CA 91324
(Phone) 818-701-9831 (Fax) 818-701-1506
sales@pcslighting.com www.pcslighting.com
Status
LED
Pass-Thru
Outlets
(always on)
Program
Button
