3 C Int ell i ge nt I nduct ion Cl eaner

Qui ck S t ar t Gui d e

Patent Pending

Rev: 9.27.18

ALWAYS use proper safety precautions:

Wear eye protection and use nitrile or latex gloves at all times.

Have a fire extinguisher available in the area. Run the vehicle outside or in a well ventilated area. The 3C will

start and stop automatically. To manually stop the 3C mid-cleaning push the Emergency Stop Switch located

on the front panel. Before performing a cleaning with the 3C check the vehicle's engine oil and coolant levels

and top off if needed. If the vehicle's engine is making any unusual noise check and repair prior to cleaning.

Check for both pending and hard DTC's. Always use common sense when using the 3C system.

FOR PROFESSIONAL USE ONLY

If you need help or have questions call ATS at (800) 572-6112 for assistance.

This technology has been under development for over 4 years. It is extremely important to follow these directions.

ATS cannot be responsible for any action taken by a shop or technician that is not stated in the following information.

Doing any procedure that is not specifically stated by ATS is at the users own risk.

DO NOT USE THE 3C INDUCTION CLEANER ON ANY EXOTIC ENGINES such as, but not limited to;

Ferrari, Maserati, McLaren, Bugatti, Koenigsegg, Lamborghini, etc. Additionally Do not Clean

BMW N63-S63 V8 Twin Turbo engines

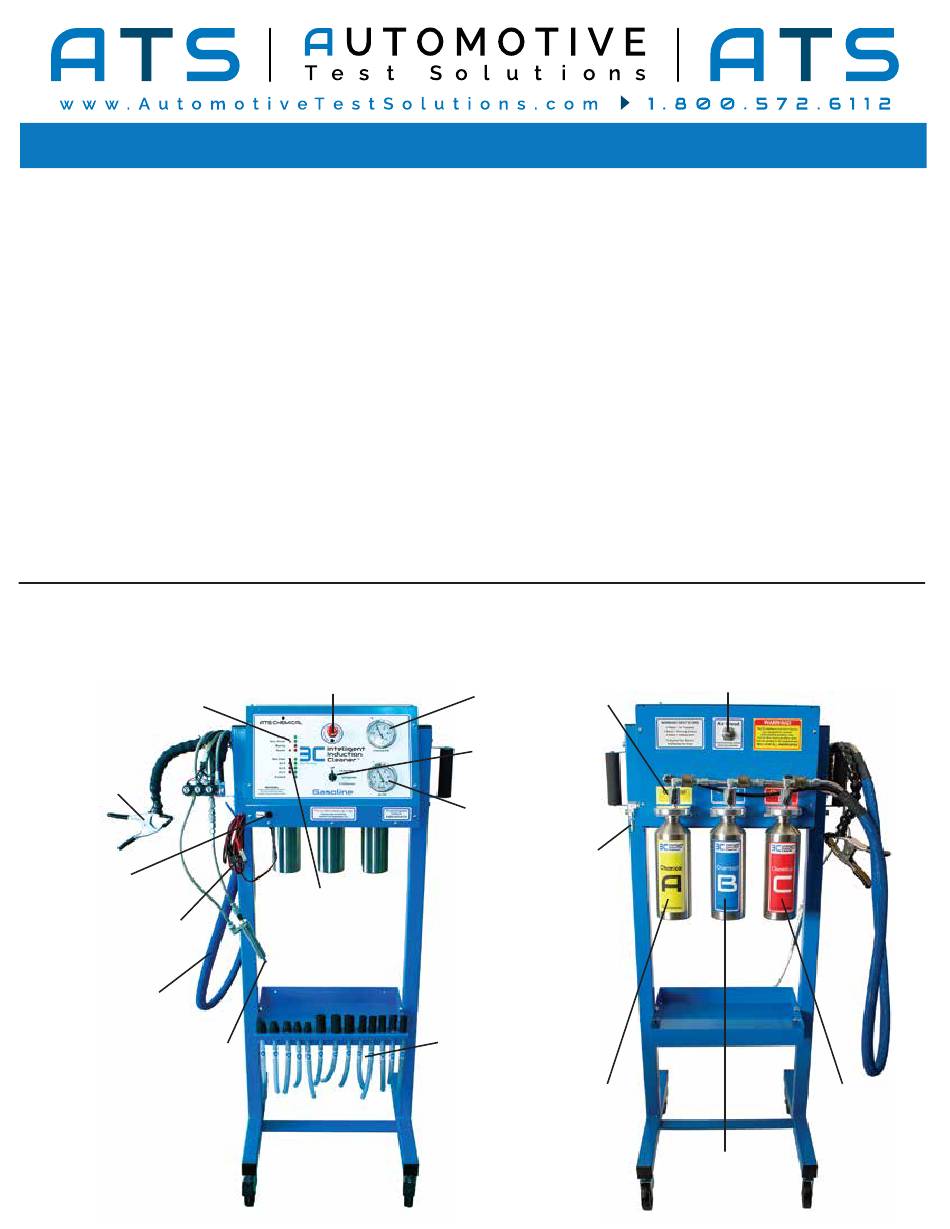

Getting to know your 3C

Manual

Air Bleed

Emergency

Chemical

Valve

Stop Switch

Chemical PSI

Arm/Disarm

Shut Off

Button

Cylinder

Selection

Holding

Switch

Clamp

Air PSI

Compressed

2 Amp

Air Plug

fast-blow fuse

Start

Battery

Clean

Leads

Button

3C Cleaning

Hose Assembly

Intake

Adapter

Hoses

Injection Nozzle

Chemical

Reservoir A

Reservoir C

Chemical

Reservoir B
