Sun Glow Atlas Installation Instructions

NOTE: Refer to regular shade system installation instructions before installing the Atlas system.

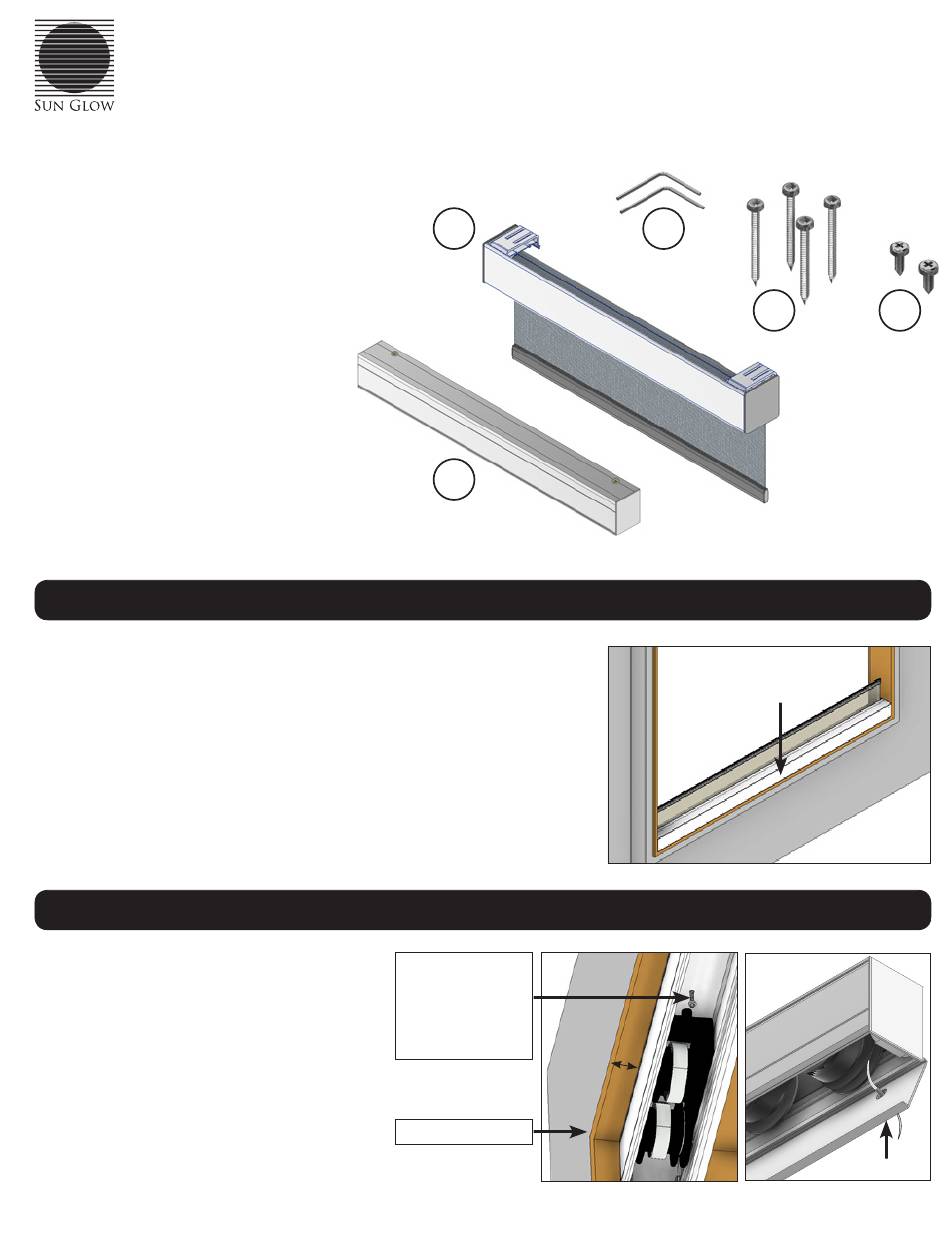

Components

• A = Motorized roller shade system
[must be a bottom mount installation]
• B = Spring box (under tension)
[must be a ceiling mount installation]
• C = Spring locking pin
• D = 1.5" Mounting screws
• E = Cable lock screws
Install the Motorized Shade System (A) on the bottom of the window frame.
The cassette should be flush with the front of the window frame (refer to image
at right).
This system must be ceiling/bottom mounted only.
NOTE: BE CAREFUL NOT TO DAMAGE FABRIC AS EXCESS FABRIC MAY
DRAPE OVER THE CASSETTE.
With the spring cover folded back, ceiling mount
the Spring Box (B) using the screws provided (D).
Mounting holes are pre-drilled on the Spring Box
(refer to image).
After mounting the Spring Box (B), snap the
spring cover back into place.
Installation Instructions
A
B

STEP 1: ROLLER SHADE SYSTEM INSTALLATION

STEP 2: SPRING CHANNEL INSTALLATION

typ. 1.5" mounting
screw
Other screws can be
used depending on
site conditions
Front of window
Atlas
7/8"
C
D
Motorized roller
shade system
1 of 3
14/8/2018
E
interior space
spring cover
