Summary of Contents for AccessPRO SF101
-
Page 1: Installation Manual

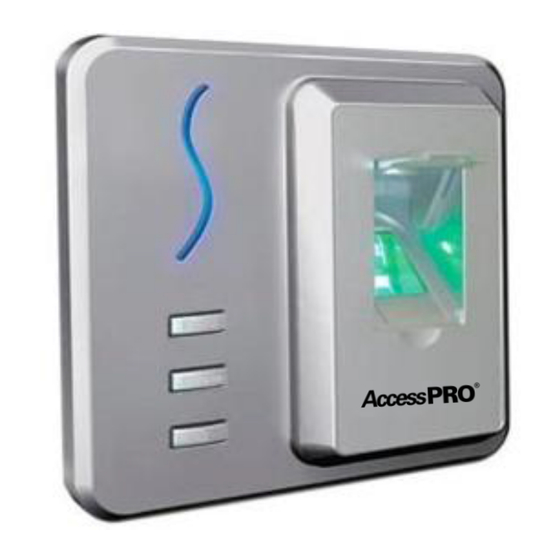

Installation Manual SF101 SF101 Fingerprint Reader / Proximity Reader Installation Manual... -
Page 2: Device Installation
Installation Manual SF101 1. Device Installation. 1.1. Using the mounting paper as 1.2. Gently remove the sensor reference make the perforations cover. in the wall for the included anchors. 1.3. Before screwing, put on 1.4. After screwing the device, the rubber protection and place the sensor cover. - Page 3 Installation Manual SF101 2. Reader Parts 2. The parts of the SF101 are described below: Led Indicator Enroll Button Fingerprint Reader (User Registry Delete Button (Delete Users Reader cover Bell Button USB Connection Reset Button...
- Page 4 Installation Manual SF101 3. Connections 12VCD AGND AGND AGND 485A GREEN 485B BUZZER BELL+ BELL- FUNCTION FUNCTION FUNCTION 12VCD+ RS232 RX Door Sensor AGND 12VCD- RS232 TX AGND Ground Wiegand Output D0 485A RS485 + Output Button Wiegand Output D1...
- Page 5 Installation Manual SF101 3. Connections 3.1. Connection Diagram of the SF101 with a Magnetic Sheet Sharing the Same Source: Nota: The exit button and door sensor share the GND as common. N.C. Door Sensor AGND AGND AGND N.A. Exit Button...
- Page 6 Installation Manual SF101 3. Connections 3.2. Connection diagram of the SF101 with a counterstrike sharing the same source: Note: The exit button and door sensor share the GND as common N.C. Door Sensor AGND AGND AGND N.A. Exit Button 485A...
- Page 7 Installation Manual SF101 3. Connections 3.3. Connection diagram of the SF101 with an Access Control Panel: Cable AWG .22 AGND Access Control Panel GREEN BUZZER 3.4. Connection diagram of the SF101 with the PC via USB:...
- Page 8 Installation Manual SF101 4. Characteristics • Optic sensor. • Communications: RS232, RS485 and USB. • Built-in proximity reader. • Voltage: 12 VDC. • Operating temperature: 0 - 45 ºC. • Dimensions: 120 x 120 x 35.1 mm. More Information: Youtube Channel...
