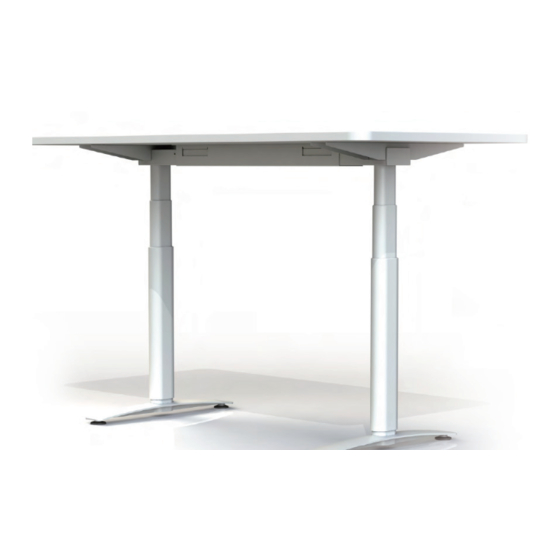

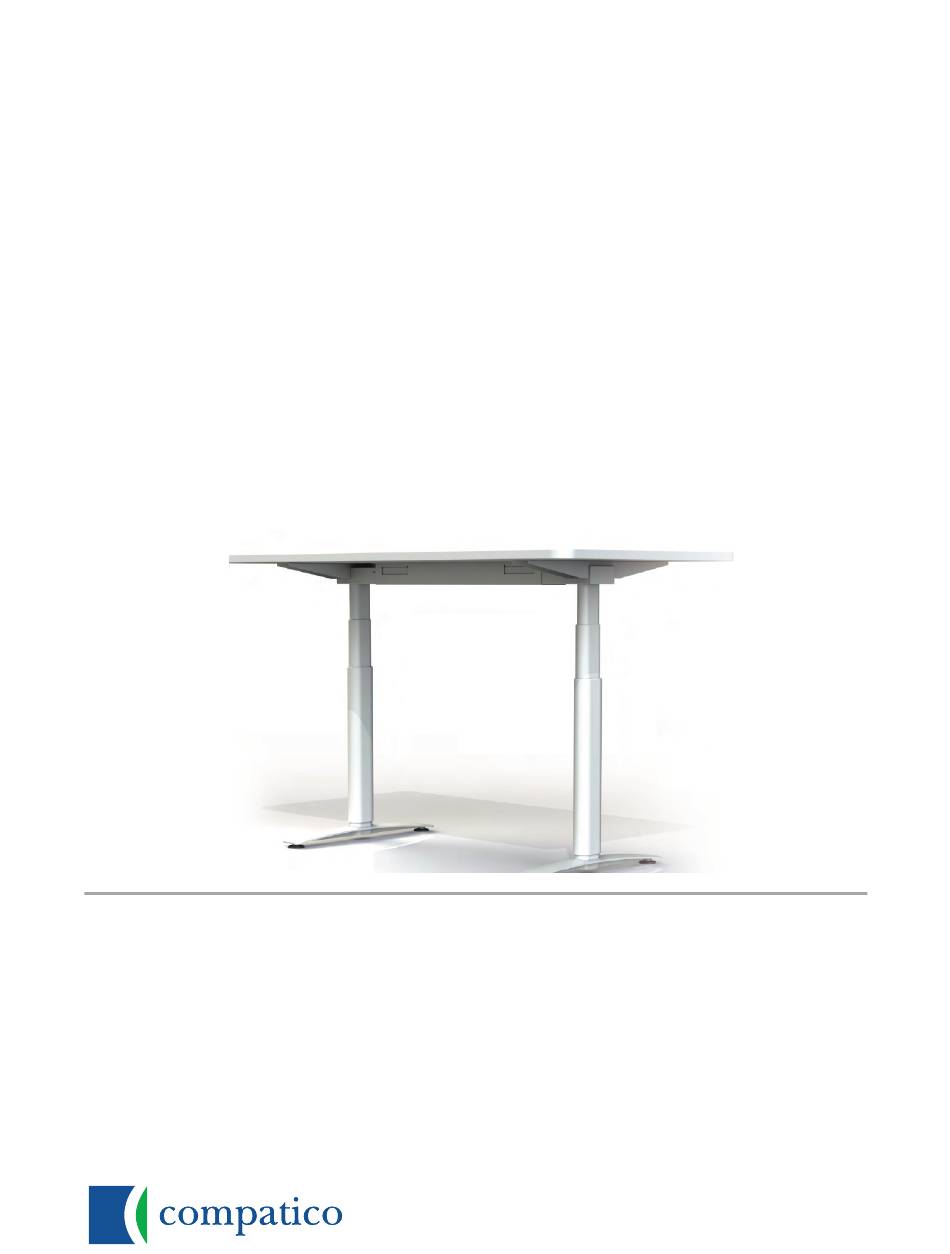

- Page 1 CHAT ™ Compatico Height Adjustable Table Installation Instructions for 2-Leg Base...
- Page 2 aUtion nforMation Make sure no obstacles are in the desk’s path. Make sure the desktop is not touching any walls. Make sure all cords are appropriate length to accommodate the change in height. Keep children away from electric height-adjustable desks, control units and handsets.
- Page 3 CHAT Assembly Instructions (2-Leg) & t arts ools PART # DESCRIPTION HA-OMXTB-251.4 Crossbeam 1 HA-OMXTB-251.3 Slide Crossbeam Handset HA-TSB-263.2 Side Bracket HA-TSB-263.1 Column Leg HA-RLF-294 Foot Glide HA-CB-250 Control Box HA-USCT-245 Control Box Bracket OBS-SCREW-124 Machine Screw...
- Page 4 STEP 1 STEP 2 Fix HA-OMXTB-251.4 and HA-OMXTB-251.3 together with Eight OBS-SCREW-124, two HA-TSB-263.1, two HA-RLF-294, four OBS-SCREW-124 and four Glides STEP 4 STEP 3 Just insert the HA-OMXTB-251.3 into the HA-OMXTB-251.4 Two HA-TSB-263.2, HA-USCT-245 and ten OBS-SCREW-124. and fix together with OBS-SCREW-124. STEP 5 STEP 6 Electrical connection as shown...
- Page 5 CHAT Assembly Instructions (2-Leg) IMPORANT! DO NOT ATTEMPT ANY OF THE BELOW STEPS BEFORE COMPLETING THE BELOW: First-time set (manual reset): Press M button, the display will flash, then press DOWN button and display will show “CAL” until the desk reaches minimum height, slightly bounced and stopped. “SUC” will be shown on display. Your desk is ready to use now.
- Page 6 01.2018 5005 Kraft Ave SE, Suite A | Grand Rapids, MI 49512 P: 800.336.1772 moreinfo@compatico.com | www.compatico.com...
