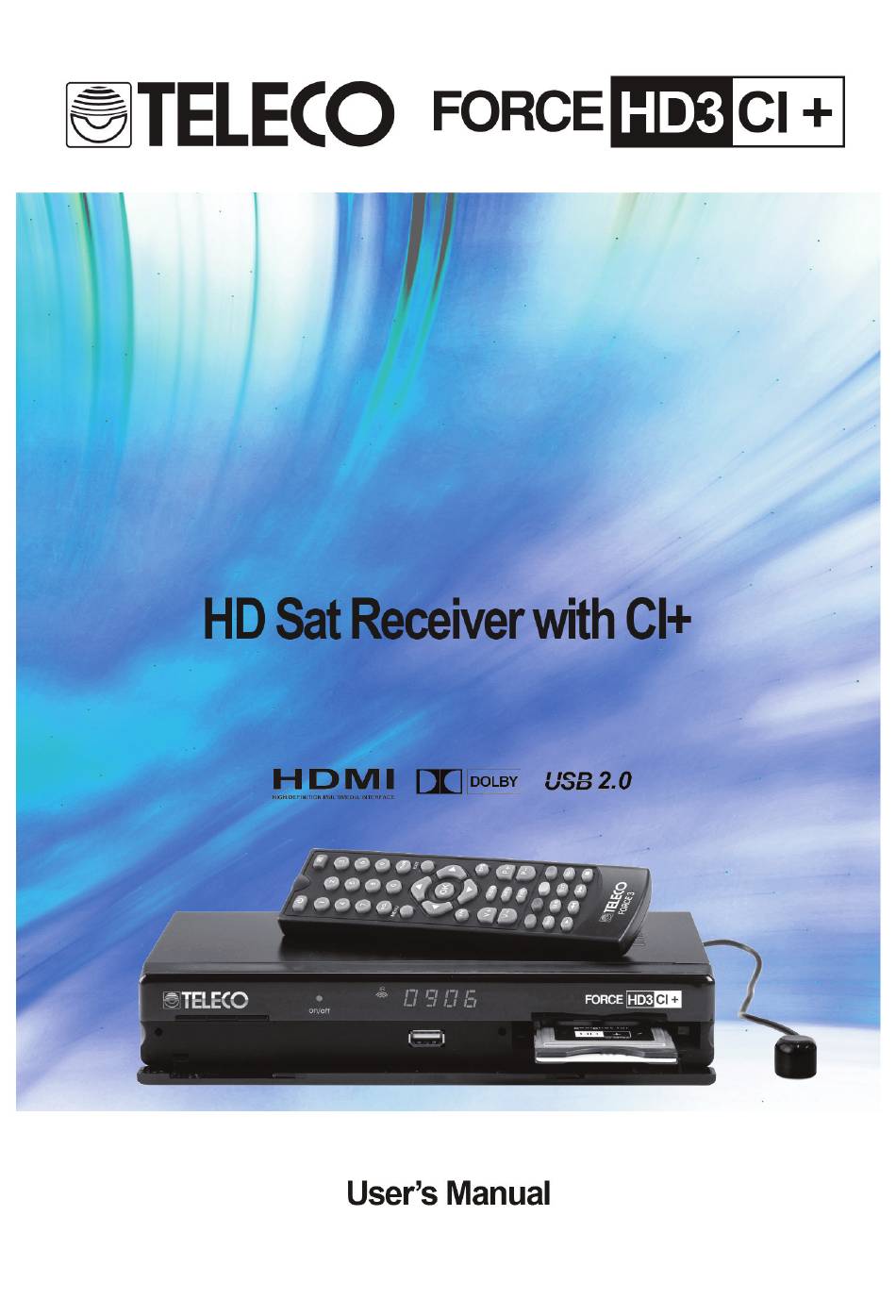

Teleco FORCE HD3 CI+ User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FORCE HD3 CI+ and is the answer not in the manual?

Questions and answers

Summary of Contents for Teleco FORCE HD3 CI+

  • Page 2: Main Features

    Main Features • Your Set-Top-Box’s main features includes the following items: • Supports MPEG-2, MPEG-4(H.264) and fully DVB-S2 compliant • Supports Common Interface, and Common Interface Plus • DiSEqC 1.0, 1.1, ToneBurst, None • Fast channel filtering by first letter of channel name •...

  • Page 3: Table Of Contents

    Contents 1. Your receiver ............2 Front Panel .

  • Page 4: Rear Panel

    Rear Panel 1. SAT IN: Connect the Satellite Dish LNB. 2. SAT OUT: Output loop-through LNB signal. 3. IR: IR extended interface. 4. AUDIO Right and Left: These connectors give you the ability to connect the audio signal to an external amplifier or audio input on your TV.

  • Page 5: Remote Control Unit

    Remote Control Unit All features of the decoder can be controlled with the remote. Switch between operation and standby modes. Press to temporarily mute. 0-9: To enter a number or select a channel number to watch. LIST: list the Satellite’s channel. TV / R: Changes between TV and Radio modes.

  • Page 6: Connections

    Connections Note: Before connecting this STB to other devices, power off all the devices. Connecting to TV 1. Connect the satellite signal from the LNB to the SAT IN connector. 2. Connect the TV using an AV cable. 3. Connect the TV using an HDMI cable. 4.
  • Page 7 Connecting multiple fixed dishes to your receiver using a DiSEqC 1.0 switch If you want to watch programs from several satellites (For instance from Astra and from Hot Bird) it is advisable to use fixed dishes and a DiSEqC 1.0 switch. Have your Dealer aim the dishes at the requested satellites and connect the LNBs with coax cables to the IN connectors of the DiSEqC 1.0 switch.

  • Page 8: Functionalities Introduction

    1. Connect the satellite signal from the LNB to the LNB IN connector. 2. Connect the SCART lead between the main SCART socket on the TV and the TV SCART socket on the receiver or Connect the TV using an AV cable. 3.
  • Page 9 Select Operator The operator include CanalDigitaal, TV VLAANDEREN , TéléSAT, HD Austria , Skylink , Hello. you can press the OK key to select the operator and the next step will enter sublist interface, you can choose sub operator for fast scan, or you can select “other” option, in the case , you don’t need to set the sublist.
  • Page 10 Select SubList The optional sublist include SD zenderlijst, HD zenderlijst Belgique, Luxembourg, Seznam kanálů pro Česko, Seznam kanálů pro Slovensko, HD Austria, Hello,according to your need to select sub operator for searching the fast scan program. Set Default Setting Default language and Output option, include set osd language, audio language, second audio language, subtitle language, SD Output and HD Output.
  • Page 11 Antenna Configuration In this menu, you can set antenna type, there are three type you can select, include Fixed, Automatic Sat System Smart, Automatic Sat System Smart EVO, when you select fixed type, you can press the “BLUE” key to edit the satellite’s LNB parameter. Satellite Name: if you press the OK key in Satellite Name, the satellite list is displayed.
  • Page 12 LNB Type: to set LNB type. Include universal, 5150, 5750 customized etc. Low Freq: to set LNB Frequency. High Freq: to set the transponder. LNB Power: to set the switch of LNB power. LNB 22K: to set the switch of LNB 22K ON or OFF Switch Type: to set the switch type, include None, ToneBurst, DisEqC1.0, DisEqc1.1.
  • Page 13 If not fast scan mode, the search interface will be as below. You can press the “BLUE” key , receiver will enter this menu then it will jump to the view interface When the satellite searching is completed.

  • Page 14: Main Menu

    Main Menu All the important settings and features of your receiver can be operated in Main Menu. The Main Menu consists of six sub-menus which are "Guide", “Media”, "Channels", "Install" ,"Common interface", and “Setting”. Press the MENU key when the menu is off, the MAIN MENU screen will appear. Guide: this part allows user to check EPG information, book record and play, extend EPG information.
  • Page 15 Guide From the main menu, you can press UP/DOWN or LEFT/RIGHT to select the “Guide” icon. EPG shows the event information for the current channel by time zone. Press the “Left/Right” key to select program or event. Press the OK key to play channel. When you select an event you can press the “Booking Record”...
  • Page 16 Media From the main menu, you can press “UP/DOWN” or “LEFT/RIGHT” to select the “Media” icon, user can check USB device’s file list and delete files, Press the OK key to play recording file, music, or show pictures. Press the “RED” key to delete the selected file.
  • Page 17 Channels From the main menu, you can press “UP/DOWN” or “LEFT/RIGHT” to select the “Channels” icon, in this menu, you can edit channel,and favourite group and the user also can be sorted the channel list. Press the OK key to select which one you want to configure. Channel Edit In this menu, you can press the “RED”...
  • Page 18 In the channel edit menu, you can press the OK key to edit the selected channel, then Press the “RED” key to delete the selected channel. you can press the “GREEN” key to set the channel’s lock flag, press the “YELLOW” key to set the channel’s skip flag. You also can press the “BLUE” key to rename the channel’s name.
  • Page 19 Channel Sort In this menu, you can move or exchange channel’s position, and sort program by Sort Mode, the sort mode include Nam A-Z , Name Z-A, Favorite group, TP, LCN, Scramble, and Lock flag. From the Channel Sort menu, you can sort programs by press the “GREEN” key to chose different sort mode.
  • Page 20 You can select channel by press the “UP/DOWN” key, then press the “RED” key to mark the selected channel and press the “UP/DOWN” key to chose a new position, press the OK Key to move the marked channel to the new position; press the “YELLOW” key to exchange two channel’s position. Exchange operation is similar to the operation of move.
  • Page 21 Antenna Configuration In this menu, you can set antenna type, there are three type you can select, include include Fixed, Automatic Sat System Smart, Automatic Sat System Smart EVO, when you select fixed type, you can press the “BLUE” key to edit the satellite’s LNB parameter. The operation in this interface is the same as the operation in the wizard’s antenna configuration interface.
  • Page 22 In the Manual Scan menu, you can edit satellite and transponder parameters by press the “YELLOW” key. The press “LETF/RIGHT” to select edit satellite or transponder. In satellite edit menu, press the “UP/DOWN” key to select satellite or transponder. Press the “PAGE” key to change page, Then press the OK key to edit it.
  • Page 23 Auto Scan In the Manual Scan menu, you can edit satellite or transponder by press the “YELLOW” key. Those setting is the same as Manual Scan menu’s setting. In this menu, you can press the “BLUE” key to scan program. When the scan is completed, it will jump to view interface.
  • Page 24 OTA Upgrade In the OTA Upgrade menu, you can select satellite and transponder to Upgrade by OTA. Press the “UP/DOWN” key to move the cursor on the satellite or transponder, then press the OK key to select satellite/transponder from satellite list or transponder list. You also can edit satellite or transponder by press the “YELLOW”...
  • Page 25 Upgrade Channel List This interface is only appear in fast scanning mode, In this menu, you can press the OK key to start upgrade channel list, or press the ”Exit” key to leave this interface. Common Interface From the main menu, you can press “UP/DOWN” or “LEFT/RIGHT” key to select the “Common Interface”...
  • Page 26 Setting From the main menu, you can press “UP/DOWN” or “LEFT/RIGHT” to select the “Setting” icon, in this menu, you can set various parameters of OSD display, language, country time zone, factory reset, Timer, Parental Control, DVR and check system information. Output Setting In this menu press the “UP/DOWN”...
  • Page 27 Language In this menu press the “UP/DOWN” key to select Language option, then press the OK key to language setting menu, you can set OSD language, audio language, second audio language and subtitle language.You can press “UP/DOWN” to select it, Then press the “LEFT/GIRHT” or OK key to chose the corresponding options.
  • Page 28 System In this menu press the “UP/DOWN” key to select System option, then press the OK key to System menu, you can check system information, set time of auto-Standby, and restore factory settings, You can press “UP/DOWN” to select it, Then press the OK key to chose the corresponding options.
  • Page 29 Parental Control In this menu press the “UP/DOWN” key to select Parental Control, then press the OK key to Parental control menu, but you need to input current PIN code or you can’t enter this menu. In parental control menu, you can set Menu Lock, change PIN code and parental rating. You can press “UP/DOWN”...
  • Page 30 In this menu press the “UP/DOWN” key to select DVR, then press the OK key to DVR menu,Only insert USB device can enter the menu. you can set time shifting’s time, encrypt switch and USB Device information. You can press “UP/DOWN” to select it, Then press the “LEFT/RIGHT” or OK key to chose the corresponding options.

  • Page 31: Other Functionalities Introduction

    Timer In this menu press the “UP/DOWN” key to select Timer, then press the OK key to Timer menu. you can add, delete and edit timer . Press the “RED” key you can delete timer, press the “YELLOW” key you can add a timer, you also can edit timer by press the “GREEN” key. Note that add a timer must not be out of date.
  • Page 32 In OKList menu, you can press the “RED” key add channels to favorite group or remove channels favorite group. you can press the “BLUE” key to filter by name.
  • Page 33 In the playing interface, you can press to record program. In the playing interface, you can press to time shift.

  • Page 34: Troubleshooting

    5. Troubleshooting In case of failures which are not necessarily breakdowns of the receiver. Before they are sent for repair, please check as per the following table: Failure Possible cause Troubleshooting method After startup, there’s nothing Power plug is not connected. Insert the plug into the socket display on the front panel.
  • Page 35 CONFORMITY CERTIFICATE The manufacturer Teleco Spa Via Majorana nr. 49, 48022 Lugo ( RA ) Declares under its own responsibility that the following products: FORCE HD3 CI+ which are the subject of this certificate, conform to the following norms EN 60065: 2002 EN 55013: 2001 + A1: 2003 EN 61000 –...
  • Page 36 21_01_2016...
