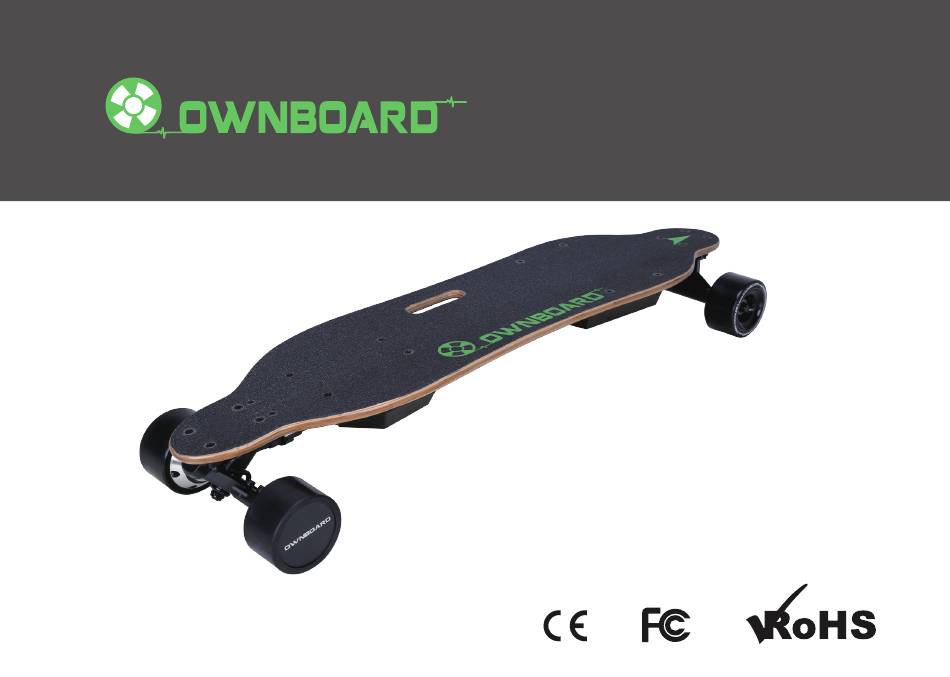

- Page 1 USER MANUAL E-SKATEBOARD The manual applies to W-series, C-series and MINI-series of OWNBOARD e-skateboard...
-
Page 2: Table Of Contents
Contents Contents Introduction Included in the Box Features and Specs Charging the Battery Power Indicators 08-09 Operating the E-Skateboard Safe Ridiing 11-12 Care and Maintenance 13-14 Safety Warnings Warranty www.ownboard.net... -
Page 3: Introduction
Congratulations on your new OWNBOARD E-Skateboard! The E-Skateboard is an innovative and fun electric Skateboard, ready to take on everyday use. Before your first ride, check whether the wheels are damaged, or parts are loose. If there are any abnormalities, please contact OWNBOARD Customer Support or email us at ownboard@hotmail.com. -
Page 4: Included In The Box
E-Skateboard Remote Control Tools USB Cable Charger 1.Accelerate/Brake 1.Deck 2.Forward/Backward Switch C 2.Battery 3.Button A/Power Switch 3.ESC 4.Button B for Changing Gears 4.Motor Wheels 5.USB Port 5.Wheels 6.Board Power Indicator 6.Power Button 7.Signal Indicator 7.Charging Port 8.Remote Power Indicator www.ownboard.net... -
Page 5: Features And Specs
~14 miles(~22.5 km) Size：90*54mm Sanyo 8.1Ah ~19 miles(~30.5 km) Motor Material：High-elastic PU wheel 85A Measured by 70 kg rider ,and the actual range will be affected by road conditions, Parameter Power：250W*2 the rider weight, temperature (via affect battery cell performance) .etc www.ownboard.net... -
Page 6: Charging The Battery
Light on the Remote Control will turn RED when charging, and will turn to GREEN when fully charged. NOTE: The remote should be charged within 5 V ,1 A charger, or you can use the computer USB interface to charge it, Charging voltage over 5 V will do harm to the remote battery. www.ownboard.net... -
Page 7: Power Indicators
Press the Button A at any time can re-trigger the display of the power of the remote & the board. the remote only displays the power of the remote when the board is not connected (to the remote). Attention! “●” means “solid”, “☉” means “flash” and “○” means “die out”. www.ownboard.net... -
Page 8: Operating The E-Skateboard
Note: when using a new remote and a new board, there is no need to press either the Power button (on the board) or the Button A (on the remote) for 5 seconds to bind them. They enters into the binding mode when they are powered on. www.ownboard.net... - Page 9 1st gear now. Note: this operation effects only when the “throttle scroll wheel” is at the neutral position. The specific gear and speed can be adjusted by the specific ESC the user uses. www.ownboard.net...
-
Page 10: Safe Ridiing
Turns: The turns on the E-Skateboard are commanded by the direction you lean on the Deck. SPEED MODE Press the Speed Mode Button to cycle through the 2 different modes (Beginner, and Advanced). Some series have 3 speed modes(Fast, Middle, Slow) It is recommended you start with Beginner or Slow mode. www.ownboard.net... -
Page 11: Care And Maintenance
To clean the bottom of the Deck and the Wheels, carefully wipe with a damp cloth, then dry with a dry cloth. Do not wipe down the top of the Deck. Do not use water to clean the E-Skateboard, as the electrical and electronic systems may get wet, resulting in personal injury or malfunction of the E-Skateboard. www.ownboard.net... -
Page 12: Care And Maintenance
• Protect the E-Skateboard from water or moisture. • Never disassemble the E-Skateboard or its battery. • If there are any issues with the battery, please contact OWNBOARD Customer Support or email us at ownboard@hotmail.com STORAGE • If you plan on storing the E-Skateboard for a substantial period of time, please make sure you fully charge the battery before storing.The battery should be fully charged once a month after this. -
Page 13: Safety Warnings
• Do not ride on roads with obstacles (such as litter, small stones, etc.). • Avoid riding in narrow spaces or on steep slopes. • Avoid riding around flammable gas,steam,liquid,or dust that could cause fire. • Never operate the product barefooted and keep shoelaces tied. www.ownboard.net... -
Page 14: Safety Warnings
MODIFICATIONS Do not attempt to disassemble, modify, repair, or replace the E-Skateboard or any components of the unit without instruction from OWNBOARD Customer Support. This will void any warranty, and can lead to malfunctions which may cause injury. ADDITIONAL OPERATION CAUTIONS Do not lift the E-Skateboard off the ground while it is on and the wheels are in motion. -
Page 15: Warranty
All Ownboard Boards come standard with a 90-Day Warranty which covers any manufacturing defects. Ownboard boards are built using the best configuration of motors, controllers, and batteries. We test all individual parts and run each Ownboard Board for 210 minutes before packaging it up for shipment. - Page 16 FACEBOOK WEBSITE...
