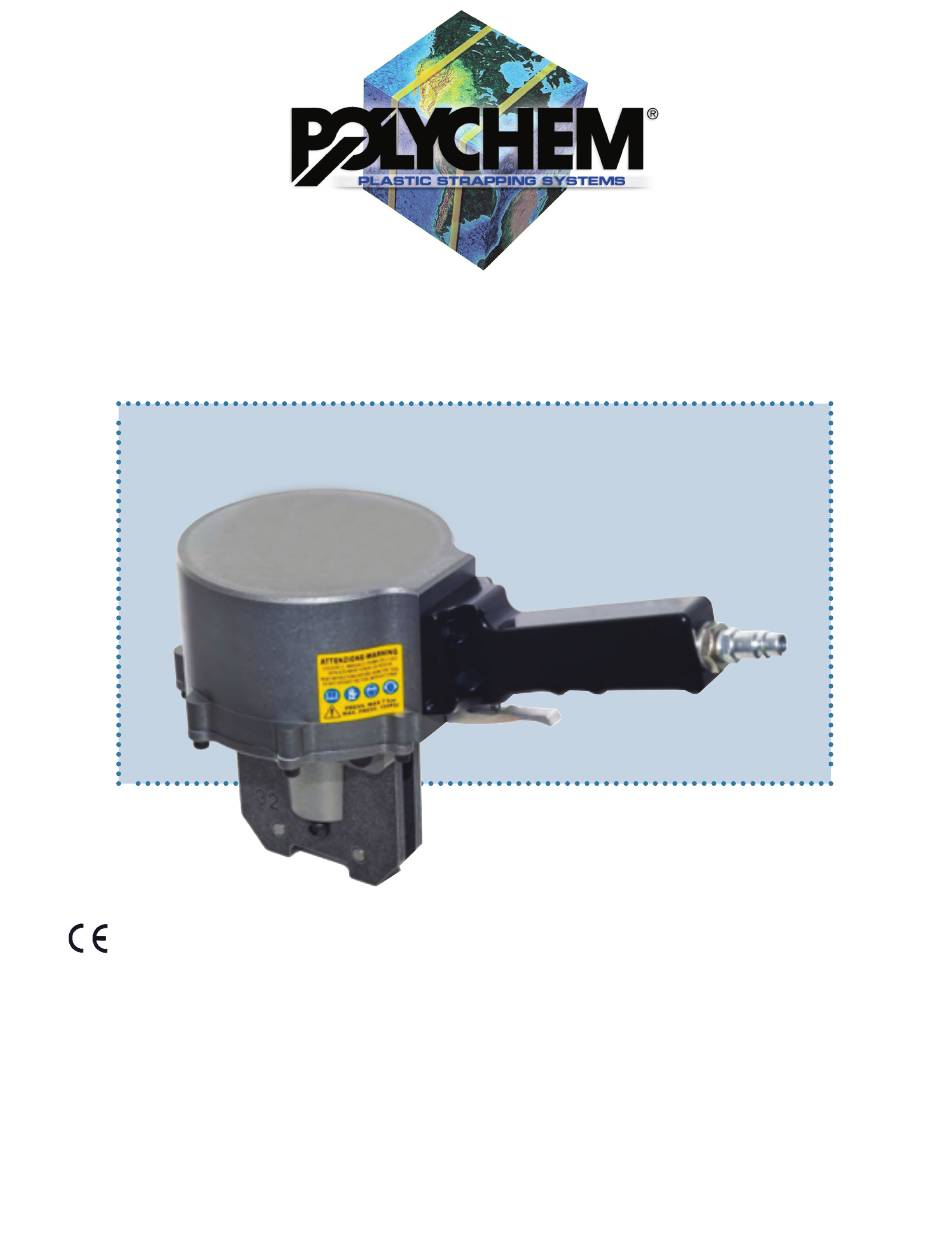

- Page 1 SP6119 / SP6132 OPERATION MANUAL | SPARE PARTS LIST PNEUMATIC SEALER FOR STEEL STRAP WITH SEAL JOINT READ ALL INSTRUCTIONS BEFORE OPERATING THE TOOL POLYCHEM CORPORATION 6277 HEISLEY ROAD, MENTOR, OHIO 44060 PHONE: 440.357.1500, FAX: 440.352.9553 WWW.POLYCHEM.COM ED.10/11...
-
Page 3: General Safety Instructions
TABLE OF CONTENTS 1) Safety instructions 2) Technical data 3) Warranty and liability 4) Installation-accessories 5) Operating elements / adjustments 6) Operation 7) Troubleshooting 8) Layout – spare parts list SAFETY INSTRUCTIONS READ THE OPERATING INSTRUCTIONS CAREFULLY WEAR EYE, FACE, AND HAND PROTECTION WHEN OPERATING THE TOOL. -
Page 4: Installation
0.025” – 0.031” WARRANTY CONDITIONS AND LIABILITY Polychem Corporation warrants all its tools and battery chargers during a period of 6 months from the shipping date document. Wear parts are warranted for 45 days, otherwise wear parts are excluded from regular warranty, wear parts are shown on spare parts list (in tool manual). -
Page 5: Troubleshooting
OPERATING ELEMENTS AND ADJUSTMENTS OPTION: The operator can change the position of the jaw to seal at 45° or 90°. Disconnect the sealer from the air supply, then remove screws (part # 401-0141) (see the SPARE-PARTS LIST) .After removing the screws, turn the jaw to desired position and reinstall the screws. Place the jaw of the sealer on top of the seal and pull the sealing lever (it’s possible to repeat this operation to make more than one notch on the same seal) (fig.C1). - Page 6 SPARE PARTS LIST Ed. 06/17 POLYCHEM ITEM DESCRIPTION PART # 189799 A000101 CYLINDER GROUP 189779 B100136 ALLUMINIUM GASKET 5/8" 189780 B100305 REDUCER 3/8"-1/4" 189672 B200104 BASE LANTERN CAMOZZI 458-3319 VALVE 189674 B200105 MIDDLE LANTERN CAMOZZI 458-3319 VALVE 189105 B200309 AIR FITTING 1/4"...
- Page 7 SP6119 / SP6132...
-
Page 8: Machine Type
Polychem Corporation declares under own responsibility that the under mentioned machinery, to which this declarations refers, is in conformity with 2006/42/CE Directive and successive modifications, as well as with standards EN12100-1 / EN12100-2 MACHINE TYPE: POLYCHEM CORPORATION 6277 Heisley Road Mentor, Ohio 44060 Tel.:440-357-1500...
