Equipment Manual
Tommy Vacuums | Equipment Manual
Tommy Car Wash Systems
Part No:
"Tommy Vacuum" (Various Configurations)
Description: Dual Drop Vacuum Systems
Updated: 10.2.18
Tommy Car Wash Systems | TOMMYCARWASH.COM | (616) 795-4892 for Support
581 Ottawa Ave. Suite 300 | Holland, MI 49423 | (616) 494-0771
Vacuum Stations
Page 1 of 19

Advertisement

loading
Need help?

Need help?

Do you have a question about the Tommy Vacuum and is the answer not in the manual?

Questions and answers

Summary of Contents for Tommy Car Wash Systems Tommy Vacuum

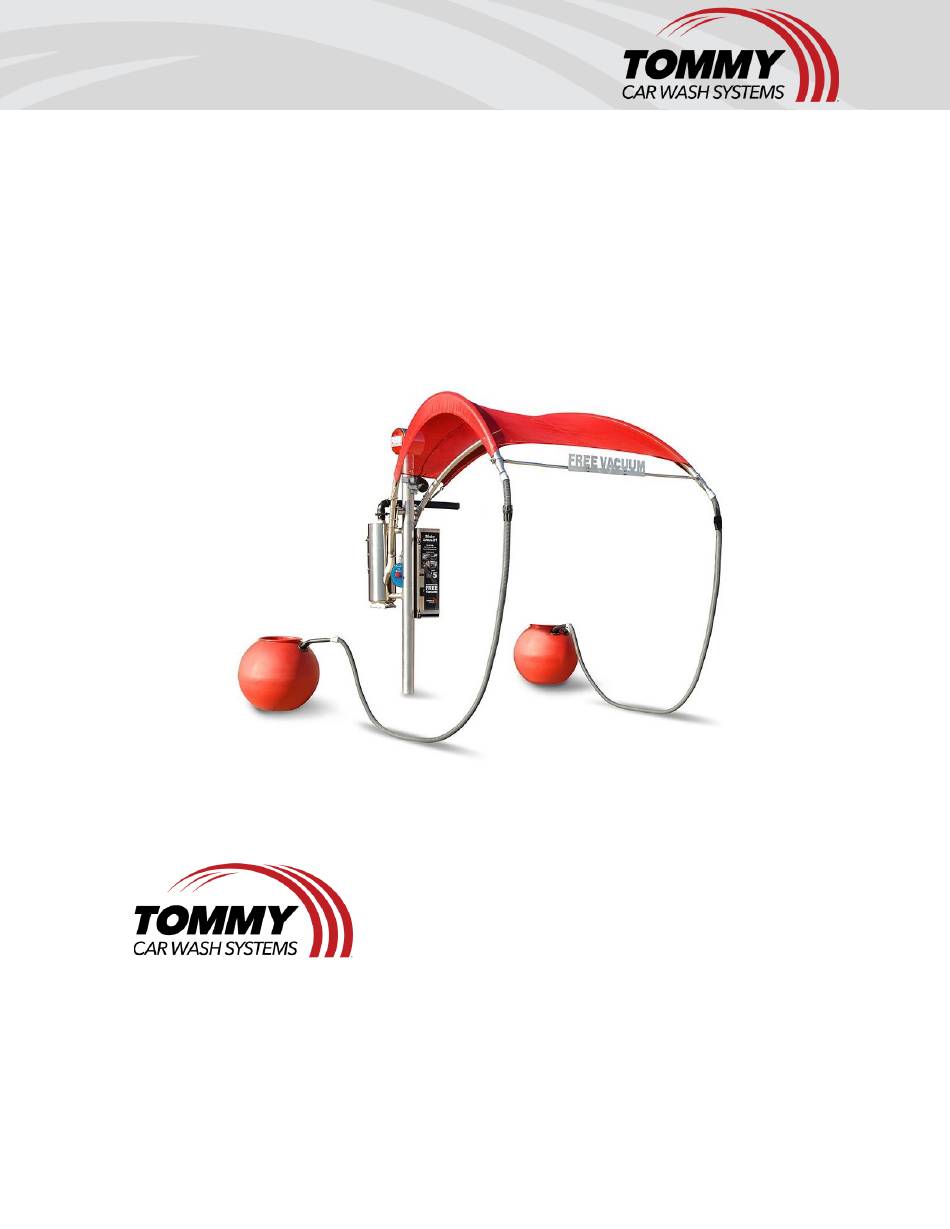

  • Page 1 Part No: “Tommy Vacuum” (Various Configurations) Description: Dual Drop Vacuum Systems Updated: 10.2.18 Tommy Car Wash Systems | TOMMYCARWASH.COM | (616) 795-4892 for Support 581 Ottawa Ave. Suite 300 | Holland, MI 49423 | (616) 494-0771 Page 1 of 19...

  • Page 2: P-Vac

    Product Description & Specification System Description: Each Tommy Car Wash Systems' dual drop vacuum station offers two full-size vacuum hoses, allowing customers to vacuum out both sides of their vehicle without dragging a single hose back and forth, reducing effort, wear, and tear. The stainless steel stanchion design is 100% weatherproof for all-climate use.
  • Page 3 All WARNINGS, CAUTIONS, AND ADVISEMENTS below concern the safe installation, operation, and service of your Tommy Car Wash Systems equipment. This safety information is included for your protection and should be reviewed thoroughly prior to working with or near this equipment.

  • Page 4: P-Vac

    7. P-VAC-224 Vacuum Adapter Cuff - 1.5" x 1.5 8. P-VAC-105NZL Crevice Tool Tommy Car Wash Systems | TOMMYCARWASH.COM | (616) 795-4892 for Support 581 Ottawa Ave. Suite 300 | Holland, MI 49423 | (616) 494-0771 Page 4 of 19...
  • Page 5 14. P-VAC-2035 Standoff Brackets 15. P-VAC-2030 Suction Hose 16. E-VAC-209 Push Button Kit Tommy Car Wash Systems | TOMMYCARWASH.COM | (616) 795-4892 for Support 581 Ottawa Ave. Suite 300 | Holland, MI 49423 | (616) 494-0771 Page 5 of 19...

  • Page 6: Table Of Contents

    7. P-VAC-2035 Standoff Brackets 8. P-VAC-2032 Neoprene Foam Rubber Disk 9. P-VAC-246 Dump Door Tommy Car Wash Systems | TOMMYCARWASH.COM | (616) 795-4892 for Support 581 Ottawa Ave. Suite 300 | Holland, MI 49423 | (616) 494-0771 Page 6 of 19...

  • Page 7: P-Vac

    Foam Gasket 12. P-VAC-234 Brush Kit for Motor (110 or 220V) 13. E-VAC-107/8/9/10 Timer Tommy Car Wash Systems | TOMMYCARWASH.COM | (616) 795-4892 for Support 581 Ottawa Ave. Suite 300 | Holland, MI 49423 | (616) 494-0771 Page 7 of 19...

  • Page 8: P-Vac

    3” Pipe Sweep Tee 6. P-VAC-251 3” Pipe Tee 7. E-VAC-222-CV Separator Assembly for Semi-Central Vacuum Tommy Car Wash Systems | TOMMYCARWASH.COM | (616) 795-4892 for Support 581 Ottawa Ave. Suite 300 | Holland, MI 49423 | (616) 494-0771 Page 8 of 19...

  • Page 9: P-Vac

    Waterproof Speaker 7. P-VAC-258 Motion Light Mounting Adapter 8. P-VAC-2033 Motion Activated Flood Light Tommy Car Wash Systems | TOMMYCARWASH.COM | (616) 795-4892 for Support 581 Ottawa Ave. Suite 300 | Holland, MI 49423 | (616) 494-0771 Page 9 of 19...
  • Page 10 ** Optional Wiring Access Point -Updated Style **Connections by General Contractor Tommy Car Wash Systems | TOMMYCARWASH.COM | (616) 795-4892 for Support 581 Ottawa Ave. Suite 300 | Holland, MI 49423 | (616) 494-0771 Page 10 of 19...
  • Page 11 Tommy Vacuums | Equipment Manual Push to Start Wiring & Programing Vacuum Stanchion Wiring Tommy Car Wash Systems | TOMMYCARWASH.COM | (616) 795-4892 for Support 581 Ottawa Ave. Suite 300 | Holland, MI 49423 | (616) 494-0771 Page 11 of 19...
  • Page 12 (Fig. 4). Tighten clamps securely. Tommy Car Wash Systems | TOMMYCARWASH.COM | (616) 795-4892 for Support 581 Ottawa Ave. Suite 300 | Holland, MI 49423 | (616) 494-0771 Page 12 of 19...
  • Page 13 7. The canopies will stretch after about 3 weeks. Retighten the turnbuckles at that point. Tommy Car Wash Systems | TOMMYCARWASH.COM | (616) 795-4892 for Support 581 Ottawa Ave. Suite 300 | Holland, MI 49423 | (616) 494-0771...
  • Page 14 Sat30 loudspeakers. Do not use the A and B channels on your receiver to hook up two pairs of Sat30 loudspeakers, as this may overload and damage your receiver/amplifier circuitry. Tommy Car Wash Systems | TOMMYCARWASH.COM | (616) 795-4892 for Support 581 Ottawa Ave. Suite 300 | Holland, MI 49423 | (616) 494-0771...
  • Page 15 Tommy Vacuums | Equipment Manual Motion Sensor Light Assembly Procedures Tommy Car Wash Systems | TOMMYCARWASH.COM | (616) 795-4892 for Support 581 Ottawa Ave. Suite 300 | Holland, MI 49423 | (616) 494-0771 Page 15 of 19...
  • Page 16 Tommy Vacuums | Equipment Manual Tommy Car Wash Systems | TOMMYCARWASH.COM | (616) 795-4892 for Support 581 Ottawa Ave. Suite 300 | Holland, MI 49423 | (616) 494-0771 Page 16 of 19...
  • Page 17 Clean Out Stainless Steel Arch Lubricate Locks Polish Stainless Steel Surfaces Check Hose Suction Tommy Car Wash Systems | TOMMYCARWASH.COM | (616) 795-4892 for Support 581 Ottawa Ave. Suite 300 | Holland, MI 49423 | (616) 494-0771 Page 17 of 19...
  • Page 18 Tommy Vacuums | Equipment Manual Maintenance Schedule – Central Vacuum Producers: The Tommy Car Wash Systems Semi Central Vacuum system is virtually maintenance free. Interior filters are cleaned automatically with a reverse pulse jet, no oil is used for the motor function, and there are no brushes to replace during the life of the system.

  • Page 19: P-Vac

    Push Button Timer Select Voltage For Optional Vending Unit P-DET-KIT Interior Cleaning Vending Kits Tommy Car Wash Systems | TOMMYCARWASH.COM | (616) 795-4892 for Support 581 Ottawa Ave. Suite 300 | Holland, MI 49423 | (616) 494-0771 Page 19 of 19...
