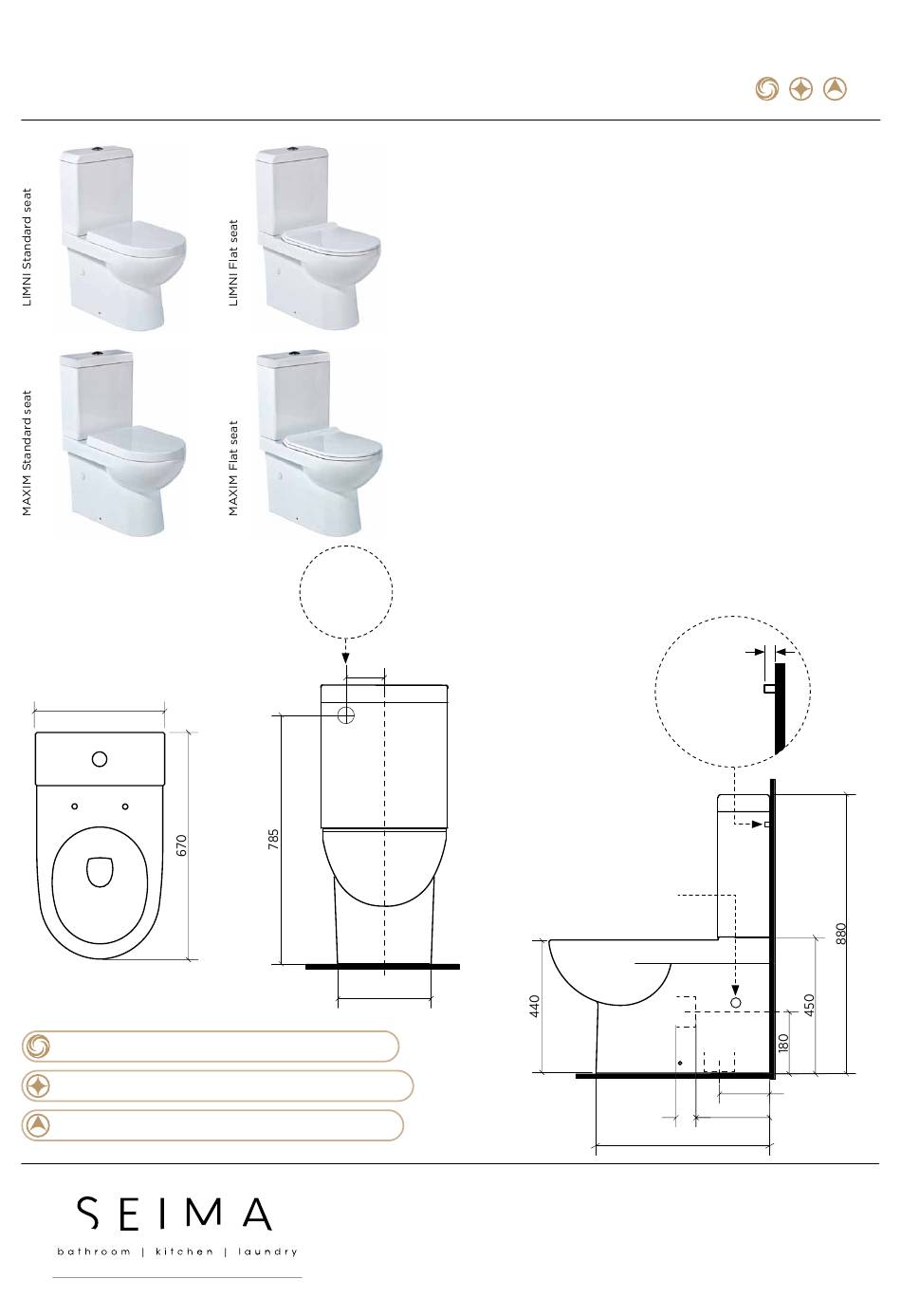

I N S TA L L AT I O N G U I D E
limni sto-301 + mAXim sto-302
385
Rimless Clean Flush pan design – for an efficient, powerful flush
Nanoglaze surface – ultra-smooth and anti-bacterial, easy to clean
Easy care pan height – making it easier to get on and off the seat
s e i m a . c o m . a u
ceramic wall faced toilet suite
clean Flush, nanoglaze, easy care height
Clean Flush rimless pan design for an efficient, powerful flush
White vitreous china with nanoglaze surface, easy to clean
Easy care height, pan height 440 mm
Easy-clean quick release seat with stainless steel pins
Soft closing seat
Choice of two seat designs: standard or flat
ORDER CODE
CISTERN
PaN
TRaPS
SEaT
WELS
SETOUT
FIxINg
BaCK ENTRY
OPTION:
setout position for
½" BSP nipple
120
280
Please note
Installation shall be in accordance with AS/NZS3500.
All measurements are in millimetres. Height dimensions are to base of pan. Make allowance for bedding.
Bedding: Fix pan to floor using a sand cement mixture of 3:1 to a depth of 60mm. Do not use lime or fast-drying cement.
Bracket fixing: The pan should be bedded with an acetic cured silicone sealant and fixed with the brackets supplied.
Dimensions are nominal and subject to normal ceramic manufacturing variations.
Specifications may vary without notice as part of our continuous improvement practices.
Clean with a damp cloth. Do not use abrasive cleaners, liquids or pastes.
LIMNI
STO-301-00
standard seat, bottom entry plumbing
STO-301-01
standard seat, back entry plumbing
STO-301-02
flat seat, bottom entry plumbing
STO-301-03
flat seat, back entry plumbing
MAXIM
STO-302-00
standard seat, bottom entry plumbing
STO-302-01
standard seat, back entry plumbing
STO-302-02
flat seat, bottom entry plumbing
STO-302-03
flat seat, back entry plumbing
Suits back entry inlet or bottom entry plumbing. Left and right
bottom entry inlet points.
Wall faced close coupled with rimless pan design.
Universal trap, suitable for S or P trap installations.
Quick release seat with stainless steel hinges, soft closing. Standard
seat or flat seat available.
4 star rating 4.5/3 litre water saving flush.
Variable 90-190mm using supplied connector; 150mm recommended.
This is a close coupled toilet suite — the cistern is fixed directly to the
pan and does not require wall fixing.
Pan may be bedded with cement base or using silicone sealant.
BaCK ENTRY
INLET OPTION:
½" BSP nipple
approx 22mm
projection from
finished wall
BOTTOM ENTRY OPTION:
port hole for flexible hose
60
535
22
150 rec
150 setout
recommended
220
(range 90-190)
© Seima
IN-STO-301-302 | v 1.0 | page 1 of 4
