GE JB655DK Dimensions And Installation Information

JB655DK
GE Appliances 30" Free-Standing Electric Range
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

RECEPTACLE LOCATIONS

Locally approved flexible service cord or conduit must be used
because terminals are not accessible after range installation.

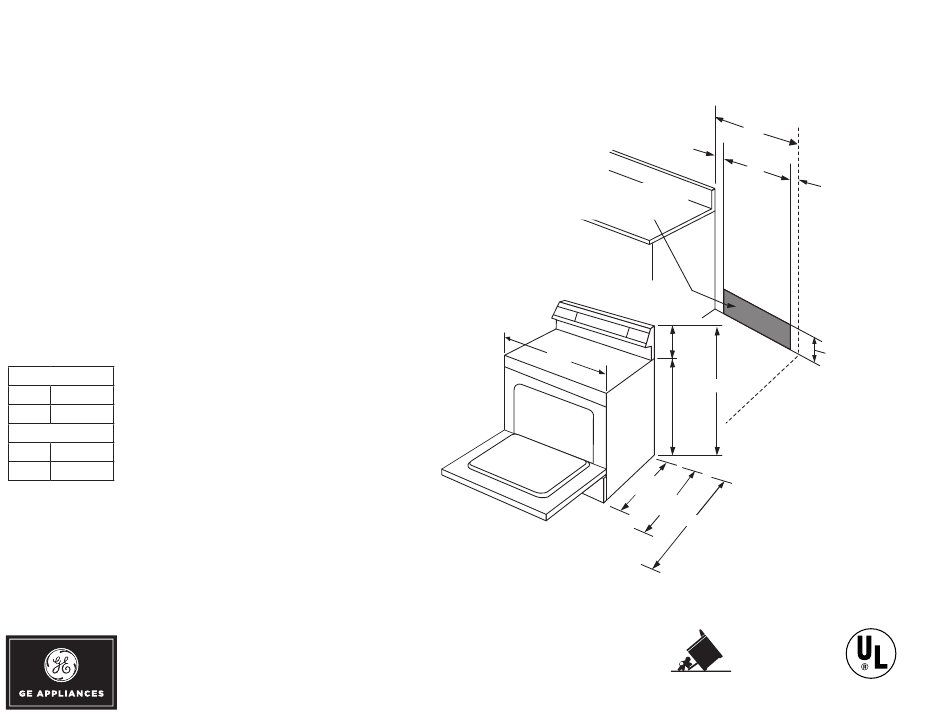

See shaded area in drawing for location of electrical outlet
box. Recommended outlet locations allow range to be installed
directly against wall.
NOTE: This appliance has been approved for 0" spacing
to adjacent surfaces above the cooktop. However, a 6"
minimum spacing to surfaces less than 15" above the
cooktop and adjacent cabinet is recommended to reduce
exposure to steam, grease splatter and heat.
INSTALLATION INFORMATION: Before installing,
consult installation instructions for current dimensional
data and additional requirements.

KW RATING

240V 12.5
208V 9.4

BREAKER SIZE

240V 40 Amps †
208V 40 Amps †
NOTE: Check local codes for required breaker size.
†
For answers to your Monogram, GE Café
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center
™ Series, GE Profile ™ Series or
® Service, 800.626.2000.
2-1/2"
ACCEPTABLE ELECTRICAL
OUTLET AREA
29-7/8"
25-3/8"
w/o handle
28"
w/handle
30"
25"
2-1/2"
11"
7-1/2"
47"
35-3/4"
to
36-1/2"
47-5/8"
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Revised 2/16
Listed by
Underwriters
Laboratories
