Hardware Installation Guide
HotClient

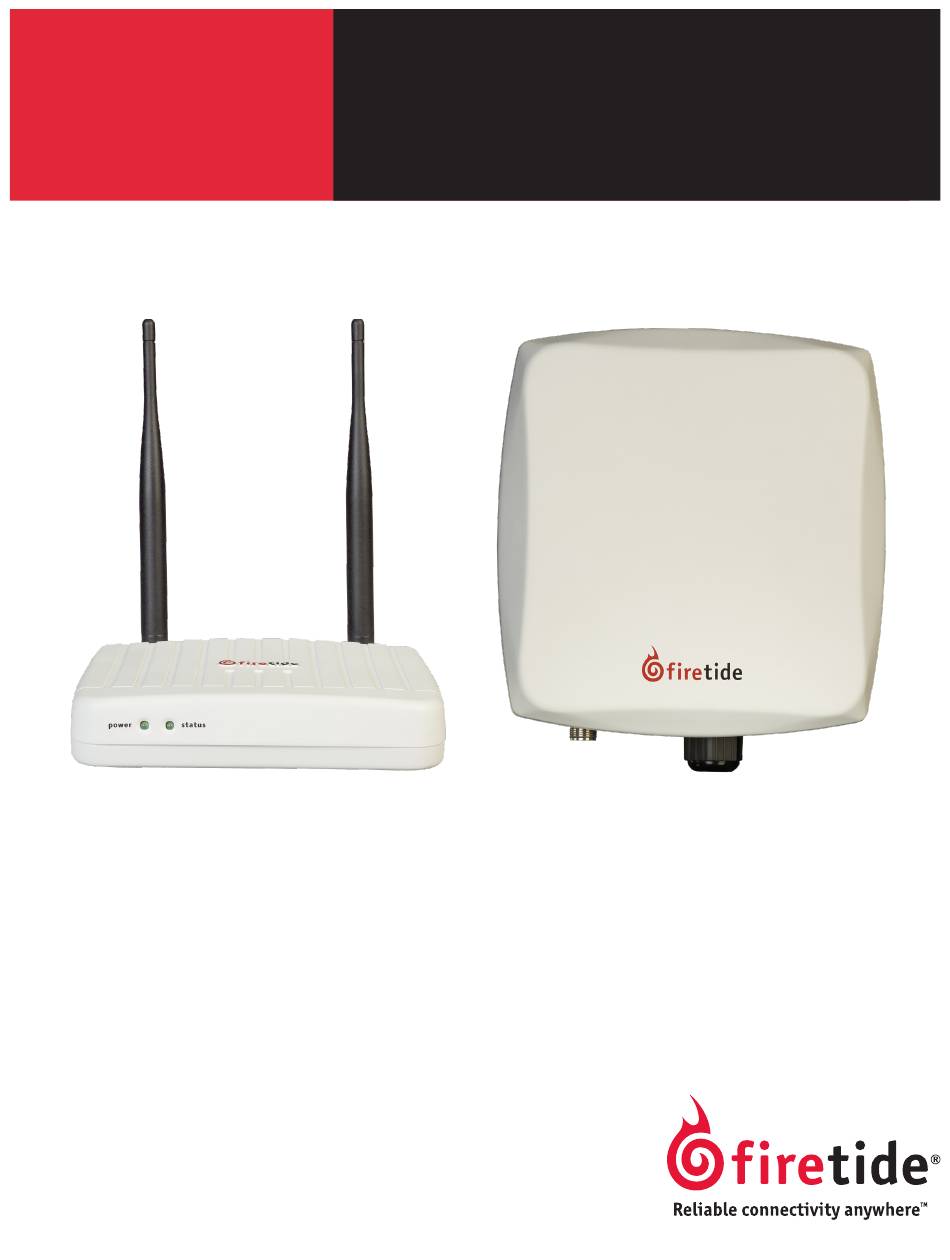

HotClient 2100 / 2200
Customer Premises Equipment
Model 2100 Indoor CPE
Model 2200 Outdoor CPE
Manual Revision 1.0 011108
The contents of this Installation Guide are subject to change without notice.
Please refer to the Firetide partners web site, partners.firetide.com, for current versions.
Advertisement
Related Manuals for Firetide HotClient 2100
Summary of Contents for Firetide HotClient 2100
- Page 1 HotClient 2100 / 2200 Customer Premises Equipment Model 2100 Indoor CPE Model 2200 Outdoor CPE Manual Revision 1.0 011108 The contents of this Installation Guide are subject to change without notice. Please refer to the Firetide partners web site, partners.firetide.com, for current versions.
- Page 2 Firetide has been advised of the possibility of such damages.
-
Page 3: Chapter 1. Setting Up Your Equipment
Antenna 1 Ethernet Power Reset Antenna 2 The Firetide device needs about two minutes to boot itself and then find the wireless signal. When it completes this process, the Status LED will turn green. Firetide Instant Mesh Networks 3 December 2007... - Page 4 The installer will have provided a hard-wired Ethernet connection into your home or place of business. The Firetide HotClient does require power. Power is fed to it via the Ethernet cable. Connect the power-feed unit to AC power. The ON light should turn green. Plug the cable from the HotClient into the port marked OUT.
-
Page 5: Chapter 2. Outdoor Installation
Please be careful. Unpacking and Setup - Outdoor The Firetide HotClient device is packed as shown in Figure 4. Note that an Ethernet cable is NOT included. You should obtain a weatherproof 4-pair cat-5 cable long enough to reach from the HotClient unit to the indoor location where you will connect with a PC, Ethernet switch, or other equipment. - Page 6 Note that the antenna is built in to the HotClient. In general, the HotClient should face the equip- ment it is intended to connect with. Typically this is a Firetide HotPoint AP. There is an external antenna connector, but in most applications it is not needed. Keep the plastic cover on this connected to prevent water from getting into the unit.
- Page 7 LED as a guide. When you receive the strongest signal, tighten the nuts. Figure 9 shows how the bracket can be used to tilt the unit. Figure 9. Tilting the Unit for Signal Alignment Firetide Instant Mesh Networks 7 December 2007...
-
Page 8: Appendix A Specifications
Transmit Power Control (TPC) capable in conjunction with Firetide Software application. Security & Encryption WPA—64/128/256 w/TKIP, AES, IEEE 802.1x (LEAP). Regulatory Agency Contact your Firetide dealer for product availability and certifications for your country. Certifications Series 2100 Indoor Unit Specifications Network Port One 10/100 Mbps Ethernet port. - Page 9 Unit power dissipation < 9W. Environmental Specifications Operating temperature: -40º C to +60ºC. Storage temperature: -40º C to +70º C. Humidity (non-condensing): 10% to 90%. Storage humidity (non-condensing): 5% to 95%. Maximum altitude 15,000 feet (4600 meters). Firetide Instant Mesh Networks 9 December 2007...
-
Page 10: Appendix B Regulatory Notices
Installers and end users must follow these installation instructions. Modifications Any modifications made to this device that are not approved by Firetide, Inc. may void the author- ity granted to the user by the FCC to operate this equipment. Installation Antenna(s) for the Model 2200 outdoor unit must be installed by a qualified professional.
