Seastar Solutions HA5417 Installation Instructions

NOTICE
For helm pumps produced after
ctober 2008 use Mounting Kit
Part # H 5478.
2
Figure .
ITEM PART# QTY
1 766815 1
2 185624 4
3 766723 1
4 067528 8
© 1999 Marine Canada Acquisition Inc. DBA SEASTAR SOLUTIONS 3831 No. 6 Road, Richmond, B.C. Canada V6V 1P6
INSTALLATION INSTRUCTIONS
Copy Part# 767628, Rev. I, 12/2013

MOUNTING KIT #HA5417

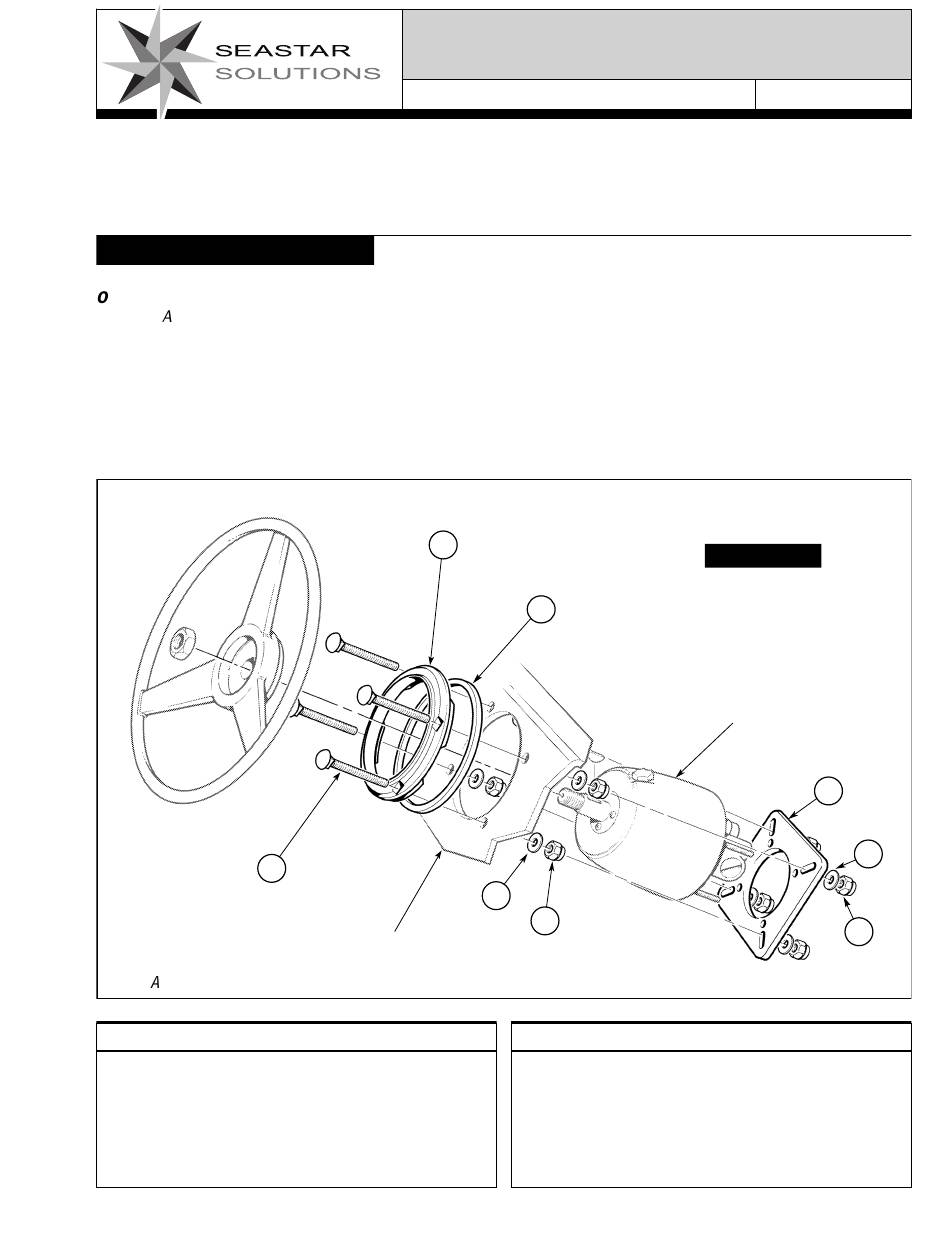

Standard Helm – Round Bezel Back Mount
• Drill mounting holes and provision for helm using the template
on page 2.
• Assemble the mounting bezel (item 1) with the carriage bolts
(item 2) and the rubber seal (item 3) according to the diagram.
• Secure the assembly to the mounting surface using the washers
(item 4) and the nuts (item 5). Torque to 75in-Ib (8.67Nm).
• Insert the helm pump from behind the dash through the hole in the
mounting surface and secure using the mounting plate (item 6)
and remaining nuts (item 5). Torque to 75in-Ib (8.67Nm).
1
DASH
DESCRIPTION
Mounting Bezel
Carriage Bolts 1/4"x 3-1/2"
Rubber Seal
Washer 1/4" Flat
3
4
*
5
ITEM PART# QTY
*5 067424
6 764233
Fax: 604.270.7172
Page 1 of 2
NOTICE
* Item 5: Torque to
75in-lb (8.67Nm).
HELM PUMP
6
*
DESCRIPTION
8 Locking Nut 1/4" NC
1 Anchor Plate
Web: www.seastarsolutions.com
4
5
