IMPORTANT NOTICE - At no time should personnel be allowed to climb or stand on shelving product. Safe access to all shelving levels
should be provided with ladders and/or other devises which are in accordance with applicable OSHA regulations.
WARRANTY
Borroughs Corporation extends to the original purchaser from the date of purchase a five-year limited warranty against manufacturing defects in material and workmanship. If a Borroughs
product fails to perform because of a manufacturing defect, Borroughs will examine it. If found defective, it will be repaired or replaced at our option. This warranty does not apply to
any product which has been subject to misuse, negligence, or accident; has been damaged in shipment, storage, or installation; has been misapplied or has been modified or repaired
by unauthorized persons or been repaired with non-standard Borroughs replacement parts. This warranty specifically excludes claims for indirect, incidental, or consequential damages
arising in any way from a product defect. This warranty is exclusive, and exists in lieu of all other warranties, either expressed or implied. To obtain warranty service, contact your Bor-
roughs Selling Dealer. You must make a written claim. Provide a copy of your purchase record and a written description of the warranty problem with your claim. If you are unable to
contact your Dealer, contact: Borroughs Corporation, Customer Service Manager, 3002 N. Burdick St., Kalamazoo, MI 49004-3483.
3002 N. BURDICK STREET KALAMAZOO, MI 49004-3483
800-748-0227 FAX: 269-342-4161 www.borroughs.com

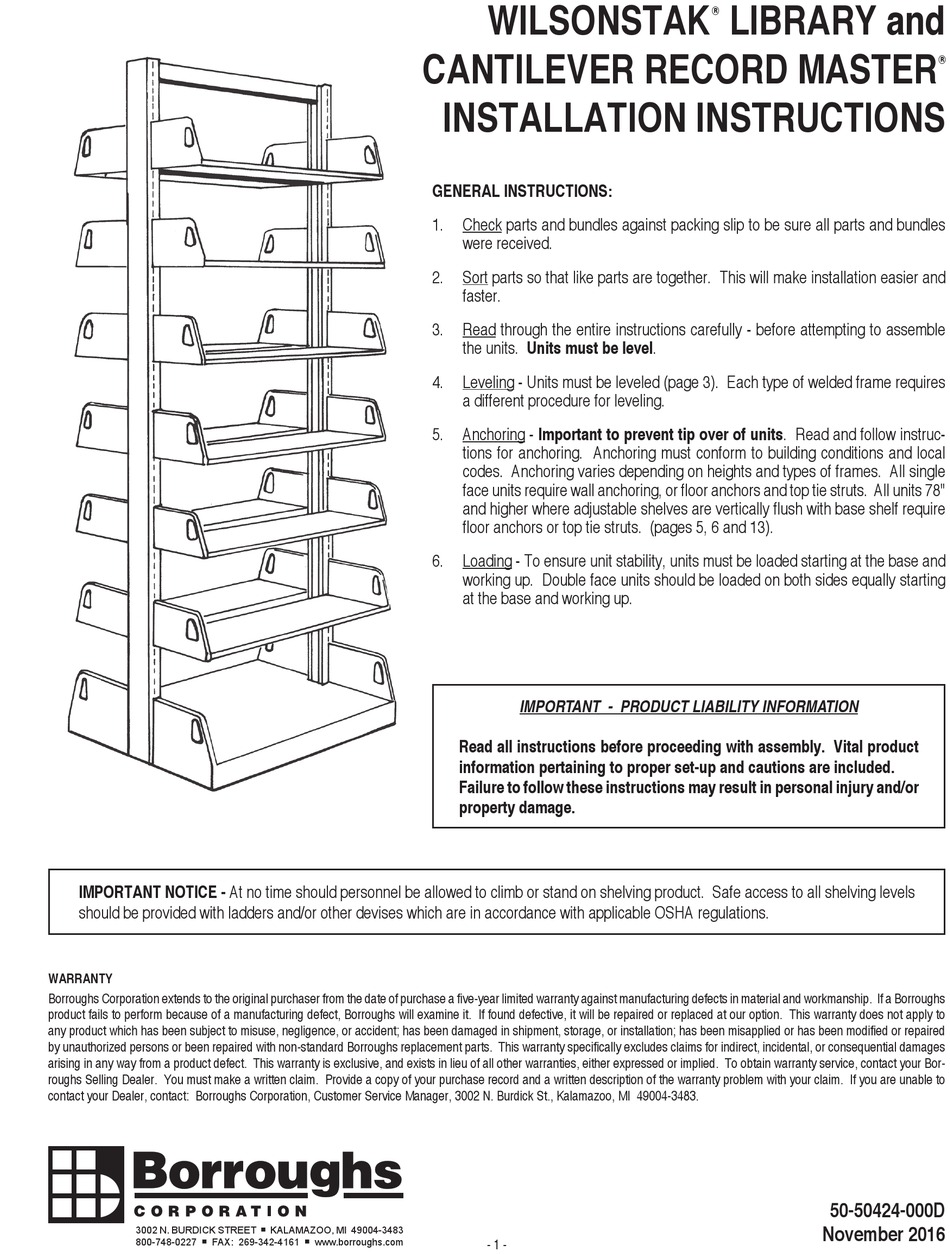

WILSONSTAK LIBRARY and
CANTILEVER RECORD MASTER
INSTALLATION INSTRUCTIONS
GENERAL INSTRUCTIONS:
1.
Check parts and bundles against packing slip to be sure all parts and bundles
were received.
2.
Sort parts so that like parts are together. This will make installation easier and
faster.
3.
Read through the entire instructions carefully - before attempting to assemble
the units. Units must be level.
4.
Leveling - Units must be leveled (page 3). Each type of welded frame requires
a different procedure for leveling.
5.
Anchoring - Important to prevent tip over of units. Read and follow instruc-
tions for anchoring. Anchoring must conform to building conditions and local
codes. Anchoring varies depending on heights and types of frames. All single
face units require wall anchoring, or floor anchors and top tie struts. All units 78"
and higher where adjustable shelves are vertically flush with base shelf require
floor anchors or top tie struts. (pages 5, 6 and 13).
6.
Loading - To ensure unit stability, units must be loaded starting at the base and
working up. Double face units should be loaded on both sides equally starting
at the base and working up.
IMPORTANT - PRODUCT LIABILITY INFORMATION
Read all instructions before proceeding with assembly. Vital product
information pertaining to proper set-up and cautions are included.
Failure to follow these instructions may result in personal injury and/or
property damage.
- 1 -
®
50-50424-000D
November 2016
®
.
Advertisement
Related Manuals for Borroughs WILSONSTAK
Summary of Contents for Borroughs WILSONSTAK
-
Page 1: Installation Instructions
Borroughs Corporation extends to the original purchaser from the date of purchase a five-year limited warranty against manufacturing defects in material and workmanship. If a Borroughs product fails to perform because of a manufacturing defect, Borroughs will examine it. If found defective, it will be repaired or replaced at our option. This warranty does not apply to any product which has been subject to misuse, negligence, or accident;... -
Page 2: Standard Installation
STANDARD INSTALLATION STANDARD WELDED FRAMES Standard welded frames are furnished with two adjustable leg levelers and two snap fit cap floor glides. Carpet pins can be substituted for levelers when specified. See page 4 for details. 00954-30 FIGURE 3 00954-70 FIGURE 1 00954-30 FIGURE 4... - Page 3 LEVELING 14993-00 After all frames are joined in a range, stretch a nylon line from one 07742-00 end of the range to the other end, at eye level. Adjust leg levelers so that they are all bearing on the floor surface and slots in the frame uprights are in line horizontally across face of range.
-
Page 4: Optional Installation
OPTIONAL INSTALLATION (ADDITIONAL COMPONENTS REQUIRED) MUST BE SPECIFIED AS 4-POINT LEVELING SYSTEM WELDED FRAMES WITH CARPET PINS CARPET PINS MUST BE ORDERED SEPARATELY Insert carpet pins into clip nuts in bottom rail of welded frame as shown in Figures 9A and 9B. Screw into threads only enough to firmly engage nut with pin. - Page 5 WALL ANCHORING Wall anchor angles are provided with each single faced unit for securing to wall. Fasten wall anchor angle to upright of frame by using a tie-down clip and 31382-50 a 1/4 x 5/8 Phillips pan head sheet metal screw. See Figure 11. 00953-10 Unit is now ready to be secured to wall using lag or anchor of the installer's choice.
- Page 6 TRIANGULAR GUSSETS (optional) Before joining welded frames side-by-side, sandwich triangular gussets between frames and base brackets and fasten with 1/4-20 x 1/2 Phillips pan head machine screws. See Figure 13. Plumb uprights by installing shims under either side of gusset. Secure welded frames together with 1/4-20 x 1/2 Phillips pan head machine screws and 1/4-20 x 5/8 Phillips pan head machine screws with 1/4-20 Keps nuts as shown.
- Page 7 T-BAR LEG BASE FRAME NOTE: Applies to either leg leveler or carpet pin installation. Assemble snap fit cap to leg levelers (see Figure 1, page 2). Screw leg levelers or carpet pins into T-bar leg base in holes provided. See Figure 16. Screw leg levelers up against bottom of base.
- Page 8 BASE SHELF - SINGLE or DOUBLE FACED Place base shelf between base brackets tilted at a slight angle. Carefully align shelf notch with upright to avoid scratching. See Figure 19. Lower opposite side in place exercising care not to scratch paint. Once shelf is parallel, tap edges into tabs in base bracket.
- Page 9 STEEL CANOPY TOPS Install canopy brackets in the top slots 07742-00 of the frame uprights. See Figure 21. Single Frame Assembly: Set canopy top over the frame with the brackets on the outside of canopy top. Secure with 1/4-20 x 1 Phillips truss head machine screws and 1/4-20 hex 07789-00 nuts.
- Page 10 FIXED PERIODICAL SHELF Secure the fixed periodical shelf to fixed periodical end brackets with #10-24 x 07732-00 3/8 Phillips truss head machine screws and #10-24 hex nuts. Set assembled shelf on uprights of frame by fitting tabs of the brackets into slots of the frame upright.
- Page 11 HINGED PERIODICAL SHELF The hinged periodical shelf end bracket is similar to a regular adjustable shelf end bracket except a pivot hole has been punched into it. See Figure 26A. Assemble an adjustable shelf as outlined in section ADJUSTABLE or DIVIDER SHELVES on page 9 using hinged periodical end brackets. There are four (4) holes provided in the face of the shelf pan (at each end) so that 12"...
- Page 12 HINGED PLEXIGLASS COVERS NOTE: Complete the assembly of the hinged periodical shelf before installing the plexiglass covers. Installation is the same for both the one-piece and the two-piece covers. See Figure 27A. Hinged periodical shelves are provided with the piano hinges welded NOTE: Steps 3 and 4 below can be replaced by using double-sided tape on the underside of the hinge to fasten plexiglass cover.
- Page 13 TRANSVERSE TOP STRUTS Top struts are used with non-freestanding and open-base bookstacks to tie units together and add stability. See Figure 30. Top struts are fabricated with different dimensions on each end. Insert narrow end of one into wider end on the next top strut. See View Z-Z. Use one (1) 1/4-20 x 3/4 Phillips truss head machine screw and one (1) 1/4-20 hex nut to secure top struts together.
- Page 14 DIVIDERS Dividers are set in shelf by first hooking the front hook of divider into the slot at the front of the shelf. See Figure 32. Then, insert rear hook of the divider into the slot in the divider shelf back stop. Tab at the back of the divider should fall into the slot at the back of the shelf as shown.
- Page 15 LAMINATED or WOOD END PANELS DOUBLE FACED END PANELS Stand end panel against welded frame and center over frame upright. Using holes in web of frame, attach wood panel to frame with wood or sheet metals screws. Screws not provided. See Figure 36. Attach end panel at top through canopy top bracket holes.
- Page 16 SLIDING SUPPORT SYSTEM ® SLIDING SUPPORT SYSTEM ® To engage sliding support, place slider block directly over rail and snap in place. See Figure 39A. DO NOT attempt to move sliding support by grasping wire. The support is designed to lock in place when force is applied to the wire. DO grip support by the plastic slider block to move it in either direction.
- Page 17 RANGE FINDER Install range finder by placing it at the desired location and securing it with two (2) #10 16118-00 x 5/8 Phillips head sheet metal screws. See Figure 41. FIGURE 41 CARD HOLDERS Cardholders are supplied with double-sided tape. Location of card holder is individual customer preference.
- Page 18 INTERMEDIATE WALL FILLERS Attach the three pieces of the filler to the various welded frame uprights through the holes provided using 1/4-20 x 5/8 Phillips pan head machine screws and 1/4-20 hex nuts. See Figure 44. Join the fillers together at the slip joints along vertical edge. Place the top cap in position.
- Page 19 NEWSPAPER RACKS Secure support members to newspaper rack end brackets, one at lower rear and one at lower front of end brackets, using 1/4-20 x 3/4 Phillips truss head machine screws and 1/4-20 hex nuts. See Figure 45A. Install newspaper rack end brackets in slots on frame uprights equal distance from the floor. See Figure 45B. 14993-00 07742-00 FIGURE 45A...
- Page 20 3002 N. BURDICK STREET KALAMAZOO, MI 49004-3483 800-748-0227 FAX: 269-342-4161 www.borroughs.com ISO 9001:2000 Registered - 20 -...
