U-Prox IP500 Installation Manual

Smart handle
Hide thumbs Also See for IP500:

Advertisement

Features

Power 3 AAA alkaline batteries
32000 openings after battery replacement
2 years operation after battery replacement
Built-in ASK and FSK reader
Direct operation with U-Prox IC L panel at 915.5-927.5 MHz
o
Guaranteed range 6 - 20 m
o
U-Prox HE and U-Prox HW repeaters for range extension
Door contact input
Request-to-exit on inner door handle
Adjusted with U-Prox IP software
Real-time clock
Non-volatile memory:
Temperature range: 0 - +55
Maximum relative humidity 80% without condensation

Changing the locking side

It is possible to install U-Prox IP 500 Smart Handle both on right hand door or on left hand door (see examples on Fig. 1)
RIGHT HAND
U-Prox IP 500 Smart Handle supplied for without defined door side. To set handles into position for installation on desired door side
proceed:
A.
Outer escutcheon (See Fig. 2)
1.
Release stopper rotating it on 90
2.
Alter handle position
3.
Return stopper to initial position
B.
Inner escutcheon
1.
Alter handle position
2.
Fix it with handle fixing screw
U-Prox IP500 Smart Handle
Installation manual
IDs
3000
Permanent
1000
Temporary
2000
Events
6000
0
C at 80% relative humidity.
LEFT HAND
RIGHT HAND
REVERSE

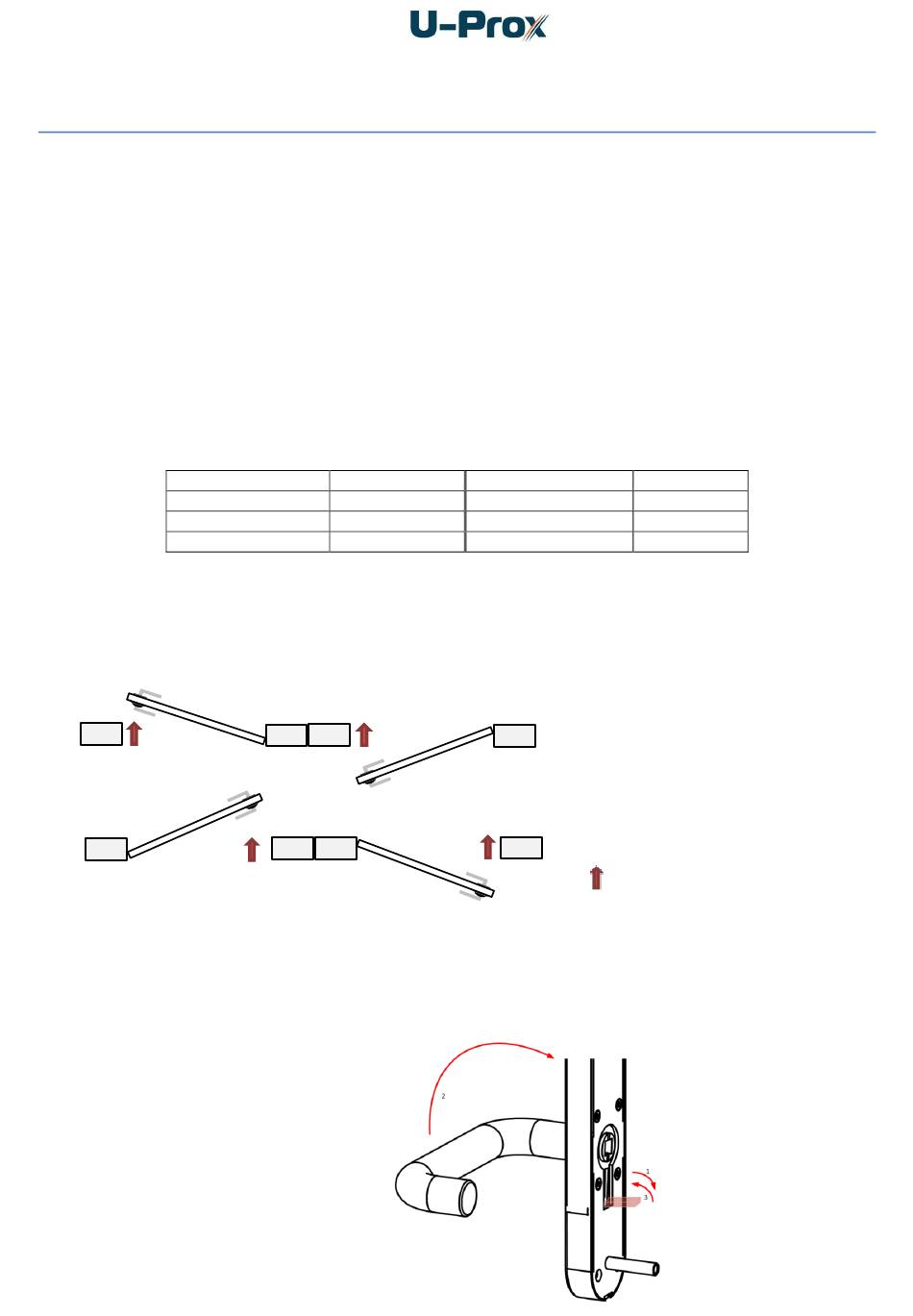

Fig.1. Handing Examples
0
Fig. 2. Alter handle position for outer
escutcheon
Time zones
Weekly schedules
Holidays
LEFT HAND
REVERSE
- Direction of access
250
250
250
