Xeline SU-200B Installation Manual

Plc slave unit

Advertisement

Quick Links

SU-200B
Installation Manual
(For Technicians Only)
PLC Slave Unit
Plug into the future
Powerline Communication by Xeline
Xeline Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SU-200B and is the answer not in the manual?

Questions and answers

Summary of Contents for Xeline SU-200B

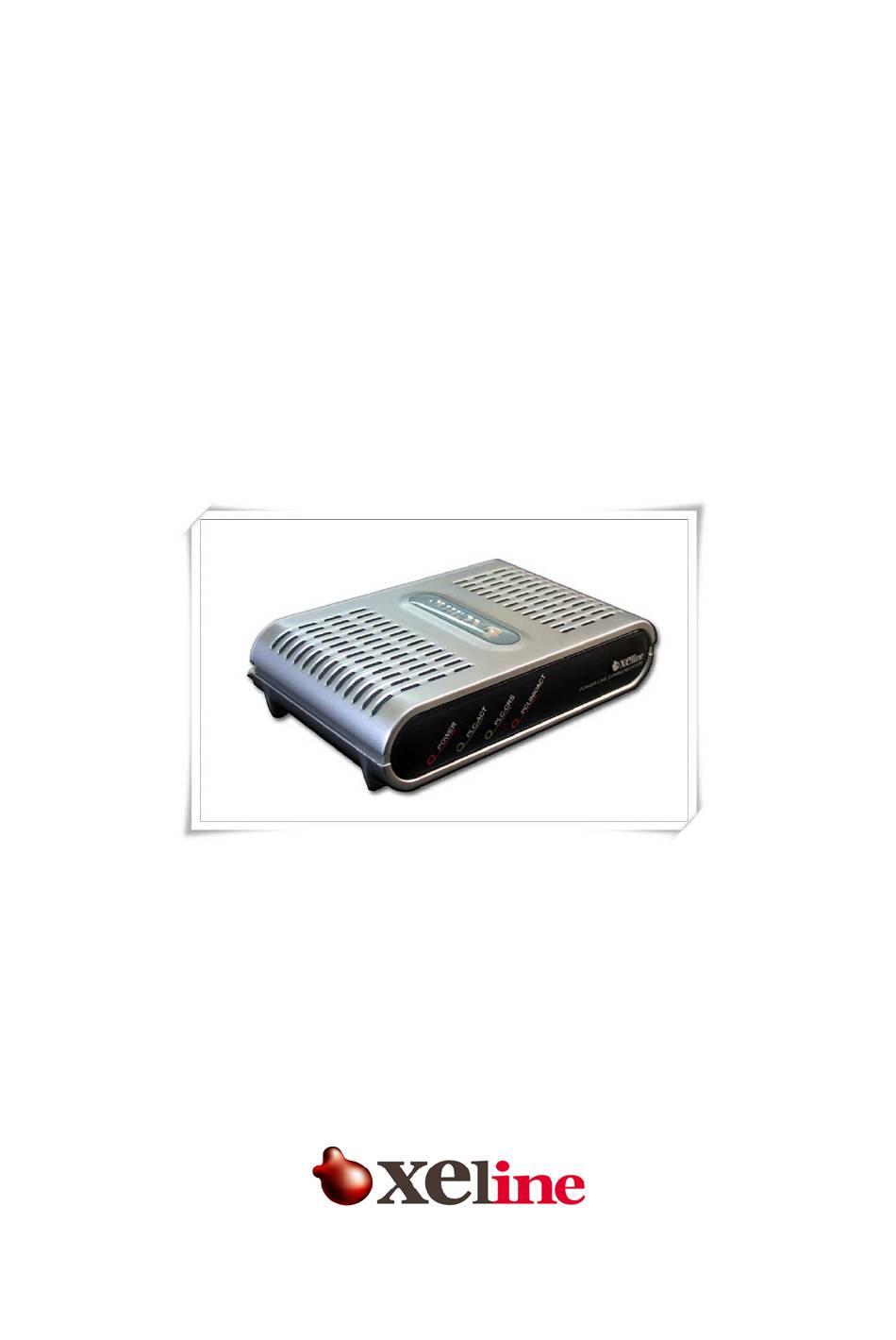

  • Page 1 SU-200B Installation Manual (For Technicians Only) PLC Slave Unit Plug into the future Powerline Communication by Xeline Xeline Co., Ltd.
  • Page 2 SU-200B Installation Manual ATTENTION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 3: Table Of Contents

    3.3 Product Specifications················································································································· 9 3.4 Minimal Requirements for the Subscriber’s PC ········································································ 9 4. Installing the SU-200B ·················································································· 10 4.1 Connecting the SU-200B to the Subscriber’s PC ···································································· 10 4.2 Configuring the Subscriber’s PC······························································································· 12 4.3 Final Check (Ping Test)·············································································································· 15 4.4 Resetting to Factory Default Mode··························································································...
  • Page 4 Figure 3 SU-200B Front View..................8 Figure 4 SU-200B Rear View ..................8 Figure 5 Connecting the RJ-45 cable and SU-200B ........... 10 Figure 6 Connecting the Power Cable..............10 Figure 7 Connecting the SU-200B to the Subscriber’s PC.......... 11 Figure 8 Network and Dial-up Connections ..............
  • Page 5: Introduction

    Internet or home network from any electrical outlet in the home or office. One SU-200B is needed for each PC or device that you wish to connect to the network. Due to the smooth and high quality of data communication, the SU-200B can also be used with various application equipment to provide value-added services such as VoPL (Voice over Powerlines) and video conferencing.
  • Page 6: Before Installing The Su-200B

    If there is a missing item or any visible damage, notify your service provider or dealer immediately. 2.2 Prerequisites In order to install the SU-200B, you will need the following items: (1) Power outlet Plug the SU-200B directly into a wall outlet.
  • Page 7: Safety Precautions

    (4) Do not use this equipment near heaters or other devices that emit high heat. (5) Do not place heavy objects on top of the SU-200B. (6) Turn off the SU-200B and unplug the cord before cleaning. Do not use liquid or aerosol cleaners.
  • Page 8: Getting To Know The Su-200B

    (PCS) Blinks when PLC signals are detected. SYNC (LINK) Blinks when the detected PLC signals are valid. Activates when the SU-200B LAN port is connected to the PC. Blinks during data transmission between the SU-200B and the PC. 3.2 Rear View...
  • Page 9: Product Specifications

    SU-200B Installation Manual 3.3 Product Specifications Specifications Remarks Data rates Up to 24Mbps Interface RJ-45 For connection with NIC Dimensions 186 X 143 X 40mm (W x D x H) Power AC110~240V, 50/60Hz 3.4 Minimal Requirements for the Subscriber’s PC...
  • Page 10: Installing The Su-200B

    ① Insert the RJ-45 cable into the RJ-45 Ethernet port of the SU-200B. Figure 5 Connecting the RJ-45 cable and SU-200B ② Insert the power cable into the AC inlet of the SU-200B and plug the cable into a power outlet.
  • Page 11: Figure 7 Connecting The Su-200B To The Subscriber's Pc

    Card. Figure 7 Connecting the SU-200B to the Subscriber’s PC ④ Turn on the power of the SU-200B and check if the LAN LED is activated. ⑤ The SU-200B is remotely configured by the EU-200B through automatic process. Therefore there is no need to manually configure the SU-200B ⑥...
  • Page 12: Configuring The Subscriber's Pc

    SU-200B Installation Manual 4.2 Configuring the Subscriber’s PC Note: The following IP setting example is based on Microsoft Windows 2000 Professional operating system. Configuration procedures may differ according to the subscriber PC O/S. ① Click the START button in your taskbar and go to NETWORK AND DIAL-UP CONNECTIONS.
  • Page 13: Figure 10 Internet Protocol (Tcp/Ip)

    SU-200B Installation Manual ③ Select INTERNET PROTOCOL (TCP/IP) and click [Properties]. Click Figure 10 Internet Protocol (TCP/IP) ④ Enter the IP address and DNS server address provided by the Internet Service Provider (ISP). For DHCP IP Addresses: Select OBTAIN AN IP ADDRESS AUTOMATICALLY. Then select the OBTAIN THE FOLLOWING DNS SERVER ADDRESS option.
  • Page 14: Figure 12 Show Icon In Taskbar

    SU-200B Installation Manual ⑤ Select the SHOW ICON IN TASKBAR WHEN CONNECTED option and click [OK]. Click Figure 12 Show Icon in TaskBar ⑥ Configuring your computer for Internet connection is now complete. You can check your connection status by clicking the network icon in the taskbar as shown below.
  • Page 15: Final Check (Ping Test)

    SU-200B Installation Manual 4.3 Final Check (Ping Test) Perform the following procedures in order to check if the installation is successful. ① Run Command window Go to: START RUN.. Figure 14 Command Prompt Window ② Type <ipconfig /all> and press ENTER key Figure 15 Checking the Configured IP Address This document is subject to change without prior notice.
  • Page 16: Figure 16 Pinging The Default Gateway Ip

    SU-200B Installation Manual ③ In case of DHCP: - Physical Address : XX-XX-XX-XX-XX-XX Check - DHCP Enabled : Yes - IP Address : Check (Any IP) - Subnet Mask : Check (Any Subnet Mask) - Default Gateway : Check (Any Gateway)
  • Page 17: Resetting To Factory Default Mode

    Figure 17 Checking the Ping Results 4.4 Resetting to Factory Default Mode Use the reset button at the back of the SU-200B in order to reset the configuration into factory default mode. ① Turn off the power of the SU-200B.
  • Page 18: Trouble Shooting

    5. Trouble Shooting Problem Checklist The POWER LED does not Check if the power cable is firmly plugged into the SU-200B and activate. power outlet. The ACT and SYNC LEDs do This can occur when the PLC link is not possible or the channel not activate.
  • Page 19: Appendix

    Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronical or mechanical, for any purpose, without the express written permission of Xeline Co., Ltd. Xeline Technical Support Center Address: 7F.
