Guglielmi HAWK 2 Manual

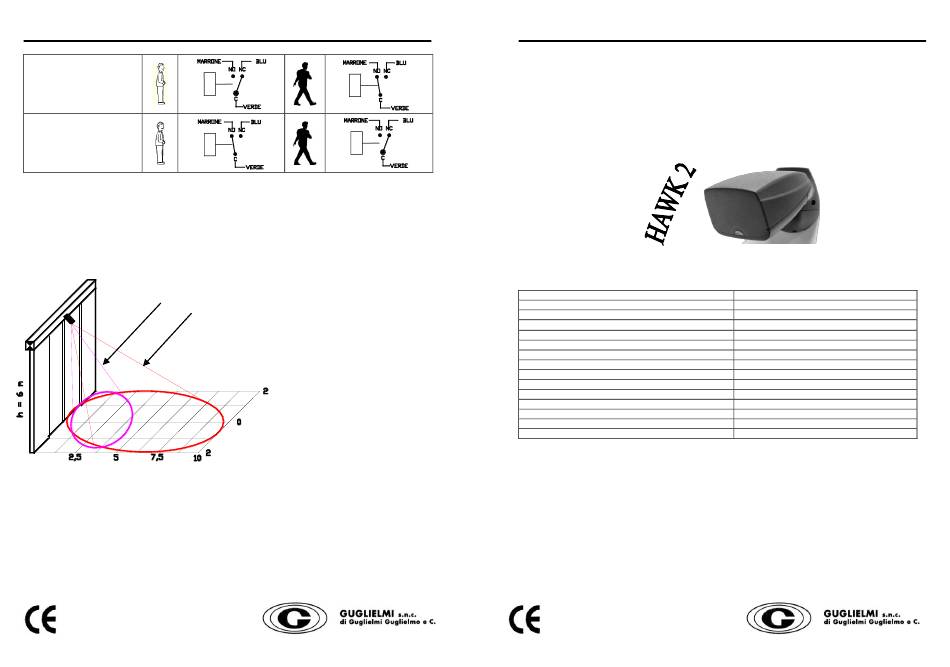

HAWK 2
DSW3 ON
(Normal operation)
DSW3 OFF
(Positive safety)
Tab.2
SETTING OF DETECTION RANGE
It is possible to define the controlled area by changing the inclination of the detector and the position
of dip-switch 4 (Fig. 3). With trimmer TR1, located on the lower section of the detector (Fig. 1-F), the
regulation can be optimised to activate detection only for the desired area.
BS (Incl. 60°)
AS (Incl. 45°)
Fig. 3
REGULATION OF CONTACT DURATION
The trimmer TR2 on the lower section of the detector (Fig. 1-E) can be used to set the desired
duration of the electric contact, which can vary from 1 – 6 seconds.
Changes or modifications made to this equipment not expressly approved by GUGLIELMI
SNC may void the FCC authorization to operate this equipment.
web: www.guglielmisnc.it
e-mail: info@guglielmisnc.it
AS: high sensitivity
BS: low sensitivity
Dimensions in metres
Via Cagliari, 19 - Tel. +390112482361
10153 Torino - ITALY
HAWK 2
The HAWK 2 microwave movement detector controls the opening of factory gates and automatic
doors. It works in the K band. It can be installed at a height ranging from 3 to 6 metres and
guarantees the surveillance of an area from 3 to 30 square metres .
The device will be automatically activated by moving persons or vehicles within the controlled
perimeter. HAWK 2 has been developed using planar technology, and can be set in mono-
directional (to detect movement either in forward or backward direction) or bi-directional (activated
by movement in both directions). A microprocessor processes the signals received – generated
through a Doppler effect – and sends an OK to the opening command. A LED on the front panel
indicates that movement has taken place inside the controlled area.
TECHNICAL DATA
Power voltage
Power current
Operative frequency
Output Power (EIRP)
Range
Relay control time
Degree of protection
Installation height
Detectable speed
Relay contact
Vertical directionality
Horizontal directionality
Operating temperature
Dimensions/weight
Warranty
This device complies with Part 15 of the FCC Rules . Operation is subject to the following two
conditions: this device may not cause harmful interference, this device must accept any
interference received, including interference that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance of
0,66 ft between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
web: www.guglielmisnc.it
e-mail: info@guglielmisnc.it
HAWK2_01MI
FCC ID: 2AAJSAK2
12 – 24 V
/12 - 24 V
AC DC
max. 40 mA
24,000-24,250 GHz
20 dBm
1 – 10 m adjustable
1 – 6 s adjustable
IP 65
max. 6 m
0.1 m/s minimum
1A - 24 V
AC/DC
0-60°
+/- 45°
- 20 °C to + 50 °C
160x95x110 mm / 500 g
24 months
