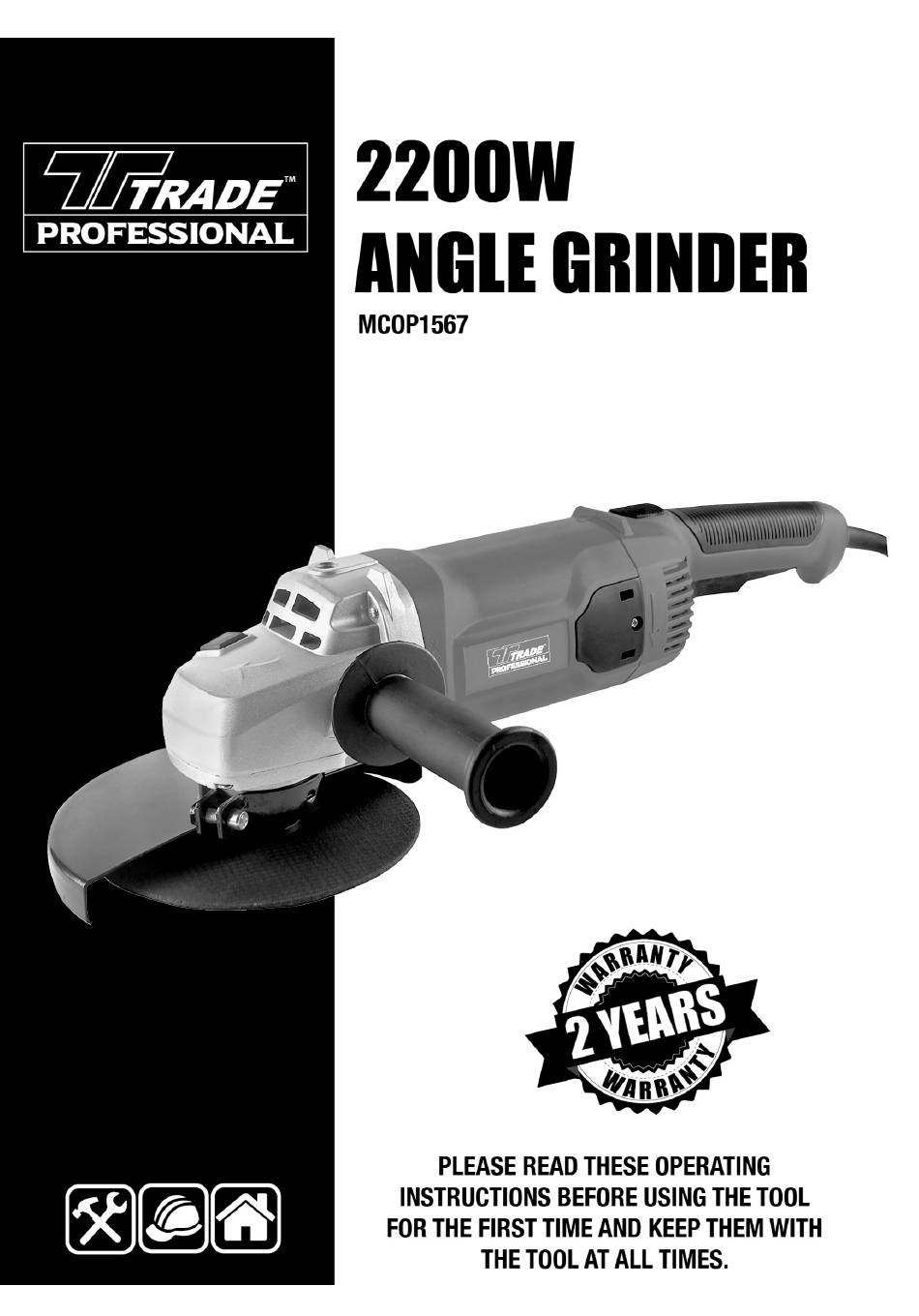

Trade Professional MCOP1567 User Manual

2200w
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCOP1567 and is the answer not in the manual?

Questions and answers

Summary of Contents for Trade Professional MCOP1567

  • Page 2 The only warranties for L&G Tools and Machinery products are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. L&G Tools and Machinery shall not be liable for technical or editorial errors or omissions contained herein. This document contains proprietary information that is protected by copyright.

  • Page 3: Table Of Contents

    CONTENTS 1. BRAND DESCRIPTION ..................... 3 2. EXPLANATION OF SYMBOLS ................... 4 3. GENERAL APPLIANCE SAFETY WARNINGS ..............4 4. SAFETY WARNINGS FOR GRINDING OF ABRASIVE CUTTING-OFF OPERATIONS ....6 4. KICKBACK AND RELATED WARNINGS ................7 5. ADDITIONAL SAFETY INSTRUCTIONS FOR GRINDING AND CUTTING OFF OPERATIONS . .. 7 6. ADDITIONAL SAFETY WARNINGS FOR ABRASIVE AND CUTTING OFF OPERATIONS ..8 8. ADDITIONAL SAFETY RULES FOR ANGLE GRINDERS ............9 7. TECHNICAL SPECIFICATIONS ..................10 8. PACKAGE CONTENTS ....................11 9. PRODUCT DESCRIPTION ....................11 10. ASSEMBLY AND ADJUSTMENT ................... 12 11. EXPLODED DIAGRAM ....................13 12. EXPLODED DIAGRAM LIST ..................14 13. MAINTENANCE ......................15 14. WARRANTY ....................... 15 15. STATUTORY RIGHTS ....................15 16. OWNER’S RECORD ..................... 15 1. BRAND DESCRIPTION The Trade brand of machinery and tools are one of the market leaders in Sub Saharan Africa.

  • Page 4: Explanation Of Symbols

    2. EXPLANATION OF SYMBOLS The rating plate on your machine and/or the manual may show certain symbols. These represent important information about the product or instructions on its use. Conforms to relevant safety standards. To reduce the risk of injury, user must read instruction manual. Do not dispose of old appliances with domestic rubbish.
  • Page 5 c) Do not expose power tools to rain or wet conditions. Water entering the power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.

  • Page 6: Safety Warnings For Grinding Of Abrasive Cutting-Off Operations

    5) Service Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. 4. SAFETY WARNINGS FOR GRINDING OF ABRASIVE CUTTING- OFF OPERATIONS a) This power tool is intended to function as a grinder. Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

  • Page 7: Kickback And Related Warnings

    n) Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards. o) Do not operate the power tool near flammable materials. Sparks could ignite these materials.

  • Page 8: Additional Safety Warnings For Abrasive And Cutting Off Operations

    c) The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect the operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.

  • Page 9: Additional Safety Rules For Angle Grinders

    of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges. e) Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst. 8.

  • Page 10: Technical Specifications

    Do not use discs that are larger than specified; only use discs that are rated for the angle grinder. The rotational speed (RPM) shown on the disc should always be HIGHER than the rotational speed (RPM) of the angle grinder. INSTRUCTION FOR ABRASIVE WHEELS AND DISCS Abrasive wheels should not be mounted on makeshift apparatus.

  • Page 11: Package Contents

    8. PACKAGE CONTENTS THIS PACKAGE CONTAINS: ANGLE GRINDER SIDE HANDLE HEX KEY WRENCH CARBON BRUSH INSTRUCTION MANUAL Check for damage to the tool, parts or accessories which may have occurred during transport. Take the time to thoroughly read and understand this manual before operation. 9.

  • Page 12: Assembly And Adjustment

    10. ASSEMBLY AND ADJUSTMENT Before using your drill be sure to read instruction manual carefully. Prior to assembly and adjustment always unplug the tool. Screw the auxiliary handle on the right or left of the machine depending on the working method. (see picture 2) MOUNTING THE GRINDING TOOLS •...

  • Page 13: Exploded Diagram

    11. EXPLODED DIAGRAM L&G Tools and Machinery User Manual...

  • Page 14: Exploded Diagram List

    12. EXPLODED DIAGRAM LIST L&G Tools and Machinery User Manual...

  • Page 15: Maintenance

    13. MAINTENANCE 1. Store the tool, instruction manual and accessories in a secure place. In this way you will always have all the information and parts ready to hand. 2. Keep the tool's air vents unclogged and clean at all times. 3.
  • Page 16 L&G Tools and Machinery User Manual...
