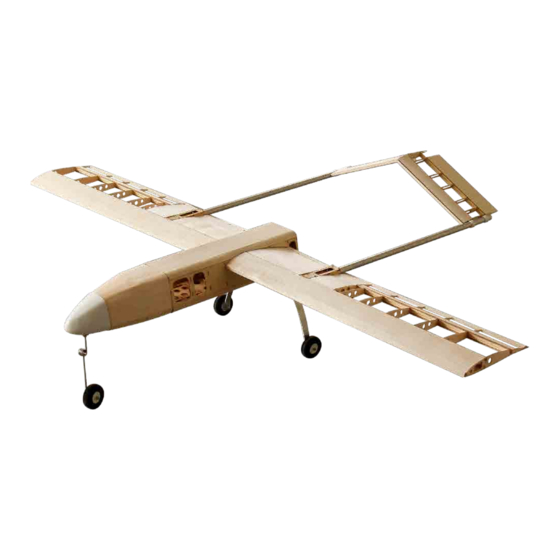

RQ-7 Balsawood Airplane
Specification:
Accessories
Wingspan: 2000mm
Length: 1630mm
Flying Weight: 3200-4000g
Motor: 2820 900-1100KV
Propeller: 12*6
ESC: 60A
Battery: 5000-10000mAh 4S Li-Po
Servo: 17g*2; standard servo*2
Balsa Kit NO.
A1
A5
A6
A2
A4
A3
A3
A9
A10
A11
A7
A6
A12
A8
A2
A14
A13
A15
A16
A12
A17
B1
B2
B3
B8
B2
B5
B6
B7
B4

Advertisement

loading
Need help?

Need help?

Do you have a question about the RQ-7 and is the answer not in the manual?

Questions and answers

Summary of Contents for ELE RC RQ-7

  • Page 1 RQ-7 Balsawood Airplane Specification: Accessories Wingspan: 2000mm Length: 1630mm Flying Weight: 3200-4000g Motor: 2820 900-1100KV Propeller: 12*6 ESC: 60A Battery: 5000-10000mAh 4S Li-Po Servo: 17g*2; standard servo*2 Balsa Kit NO.
  • Page 2 RQ-7 Balsawood Airplane...

  • Page 3: How To Assemble

    RQ-7 Balsawood Airplane How to assemble...
  • Page 4 RQ-7 Balsawood Airplane D3x3 Paulownia wood bar 3mm*3mm eight-claw nuts Matters need attention for fuselage plywood Remember to moisturize the board F3,F4,F5,F8,F6,F7 and F13,then bend each to paste. When assemble the head arc with board F3,F4,F5,F8 and F13,there are many spare parts...
  • Page 5 RQ-7 Balsawood Airplane eight-claw nuts Punch as per the metal clips (up and down) paste Paulownia wood bar 3mmX3mm paste Paulownia wood bar 6mmX6mm paste...
  • Page 6 RQ-7 Balsawood Airplane Matters need attention for wing connection with carbon pipe The wing of RQ-7 is demountable, firstly insert the PVC soft pipe into carbon rod,which then need to insert into the wing ribs, secondly paste at the connection point of the PVC pipe and wing ribs by glue, finally pull out the carbon rod once the glue is dry.
  • Page 7 RQ-7 Balsawood Airplane Paulownia wood bar eight-claw nuts 3mmX3mm Matters need attention for V-tail Same method for assembling the left and right part of the V-tail,once finished,pls put together with B6 by glue. The leading edge of tail need to be polished with...
  • Page 8 RQ-7 Balsawood Airplane How to assemble the wing 20mm aluminium pipe Paunch as per the plastic clips (left and right) 14mm carbon pipe Lock the two pieces of wing by screws after the carbon rod inserted into wing. Setting the center of gravity flight...
