DeDietrich EASYMATIC Instructions For Use

3. HOURLY PROGRAMMING
- Press the PROG (heating) key or the PROG
(domestic hot water) key several times to select the
day of the week.
The first time that you press enables grouped pro-
gramming of all days of the week; all the "day" arrows
flash.
- In the graphic bar, write dark areas ("comfort" mode
or calorifier heating allowed) using or write light
areas ("reduced" mode or calorifier heating not allo-
wed) using , in steps of 1/2 h.
- Use the key to return in steps of 1/2 h.
- Press the MODE key when you have finished pro-
gramming.
Note:
You can replace customized programs by the original
settings (STANDARD), by pressing the
keys simultaneously for 5 seconds:
• "comfort" heating: 6 h - 22 h
• "comfort" domestic hot water (or calorifier heating
allowed): 5 h - 22 h
4. "SUMMER" OPERATION WITH EXTERNAL SENSOR
Heating is automatically cut off during the summer
when the outside temperature is greater than a "com-
fort" temperature for 2 hours.
The display remains identical, but the pump is per-
manently off. The symbol is no longer displayed.
Heating is started again when the outside temperatu-
re drops below the "comfort" temperature for 2 hours.
5. DISPLAY FAULTS
The "EASYMATIC" module displays fault codes that
can occur on the boiler.
If this occurs, note the alarm code and call your fitter.
For example: A A L L 5 5 0 0
You can also refer to the control panel usage and
connection instructions (boiler with Easymatic control
panel).
DE DIETRICH THERMIQUE S.A.S. au capital de 21 686 370 • BP 30 • 57, rue de la Gare • F-67580 MERTZWILLER
Tél. :(+33) 03 88 80 27 00 • Fax :(+33) 03 88 80 27 99
www.dedietrich.com • N° IRC : 347 555 559 RCS STRASBOURG
1 2 3 4 5 6 7
0 2 4 6 8 10 12 14 16 18 20 22 24
MODE
PROG
PROG
STANDARD
and
1 2 3 4 5 6
0 2 4 6 8 10 12 14 16 18 20
ENGLISH

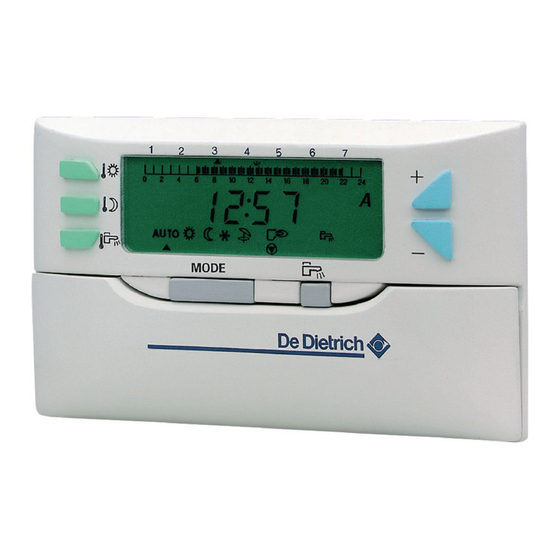

EASYMATIC
CONTROL PANEL
8806N020
7
22 24
8806N021A
Regulator
EASYMATIC
7
6
+
5
4
24
3
22
20
2
18
16
1
14
12
10
8
6
4 -
2
0
E
M O D
Instructions for use
29/07/02 - 94863314 - 8575-4450
8806N001
