Summary of Contents for Vigilant Sentinel 1000

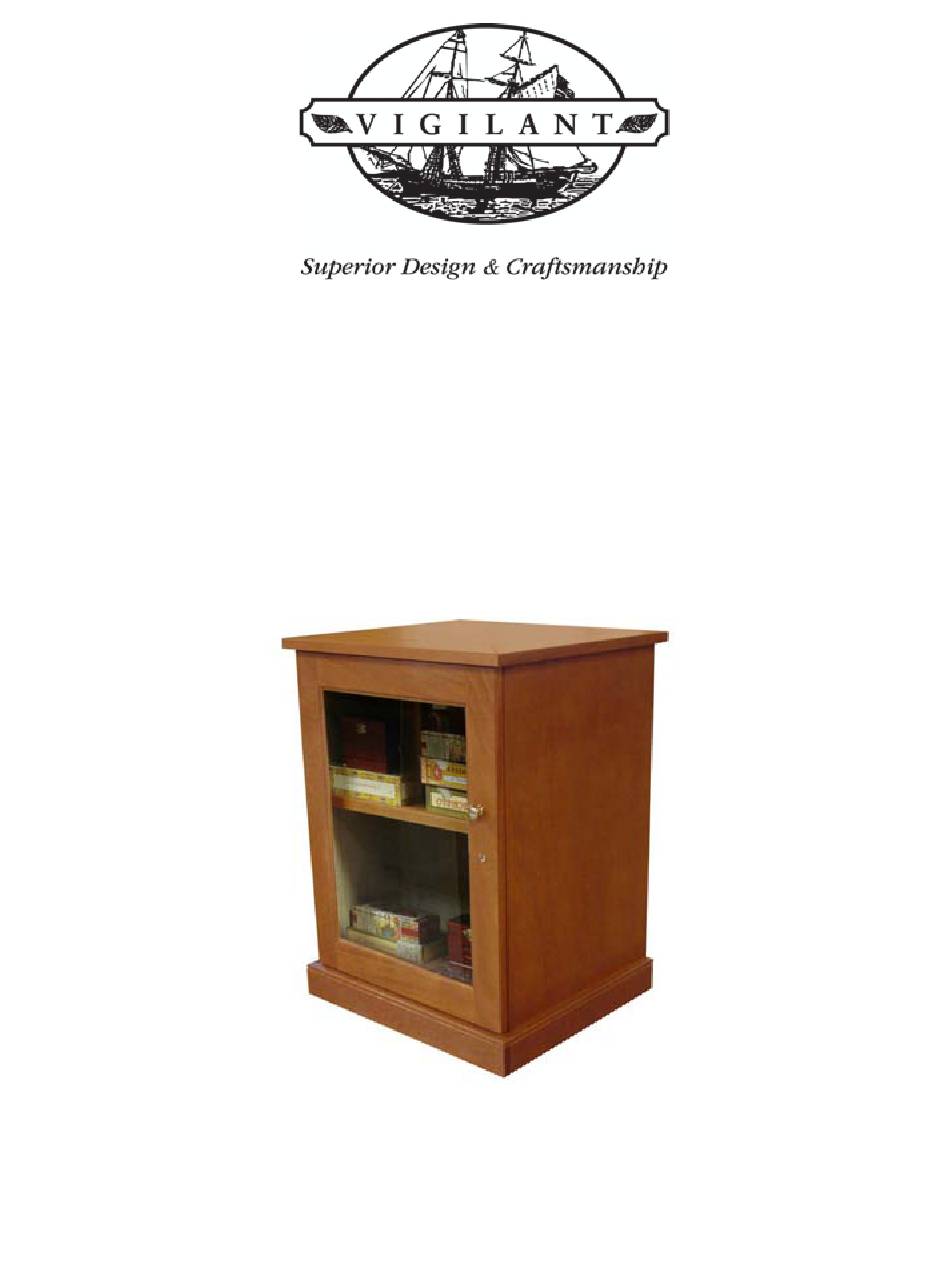

- Page 1 Sentinel Series Cigar Humidor End Tables Assembly Instructions Models: Sentinel 500, 1000 and 1500 Style: Traditional...
-
Page 2: Parts List
4 – shelf pins 2 – modesty blocks 6 – 1” wood screws (for modesty blocks) ¾” spacer block (for top panel placement) 2 keys Paper templates for door handle placement Vigilant Inc. Assembly Instructions for Sentinel End Table Page 2... - Page 3 (4) screws (6) studs (15) (for modesty Bottom panel blocks) Power cord grommet Hinges with hinge plates attached (2) Bottom trim Door pull and screw Modesty blocks (2) Vigilant Inc. Assembly Instructions for Sentinel End Table Page 3...
- Page 4 Sentinel Series Cigar Humidor End Table – Exploded View Vigilant Inc. Assembly Instructions for Sentinel End Table Page 4...
- Page 5 NOT OVER-TIGHTEN. Figure 2 Top panel Bottom panel Top panel Right side panel Locate the bottom panel and attach to the other end of the side panel, following Step 2, above. Vigilant Inc. Assembly Instructions for Sentinel End Table Page 5...
- Page 6 Fit the connector studs into each cam fitting on the top and bottom panels. Tighten the cam fittings around the connector studs by turning clockwise 180 degrees. Do not over-tighten. Figure 4 Left side panel Vigilant Inc. Assembly Instructions for Sentinel End Table Page 6...
- Page 7 ¾” overhang on sides and back. The front will overhang by 1- 1/2”. Secure the tabletop panel with 4 1-1/4” screws in pre-drilled holes using a screw gun or power drill. You will be working from inside the cabinet. Vigilant Inc. Assembly Instructions for Sentinel End Table Page 7...
-
Page 8: Step 8: Door Installation
Step 8: Door Installation The versatility of the Vigilant hardware allows you to mount your door to the cabinet with the hinges on the left or the right. Therefore, you must first determine whether the hinges will be attached on the left or the right side of the cabinet. - Page 9 Close the door and check it for proper alignment. If the door is not closing properly or does not align exactly with the cabinet front then some simple adjustments will be required. Figure 8 Vigilant Inc. Assembly Instructions for Sentinel End Table Page 9...
- Page 10 Lock: If the lock does not engage in the slot on the cabinet side, use pliers to gently bend the lock arm inward toward the cabinet until it slides into the groove. Vigilant Inc. Assembly Instructions for Sentinel End Table...
- Page 11 Figure 9 Optional: If your cabinet has a glass top, place the glass into the grooves on the tabletop. Vigilant Inc. Assembly Instructions for Sentinel End Table Page 11...
- Page 12 Vigilant Inc. Vigilant Inc. Assembly Instructions for Sentinel End Table Assembly Instructions for Sentinel End Table Page 12 Page 12 Vigilant Inc. Assembly Instructions for Sentinel End Table Page 12...
