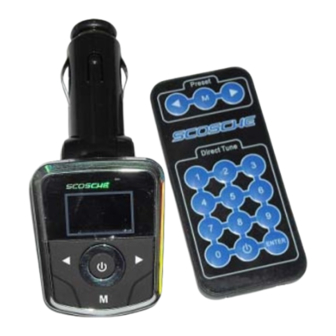

Scosche FMTD6R User Manual

Fm transmitter

User Manual

Features:

• Built-in FM transmitter (Line-In Function)

• Output 5V/800Mha power for charging IPOD

• Digital LCD display

•Total 100 Frequencies optional:

88.1, 88.3, 88.5, 88.7, 88.9, 89.1, 89.3, 89.5, 89.7, 89.9, 90.1, 90.3, 90.5, 90.7, 90.9, 91.1,

91.3, 91.5, 91.7, 91.9, 92.1, 92.3, 92.5, 92.7, 92.9, 93.1, 93.3, 93.5, 93.7, 93.9, 94.1, 94.3,

94.5, 94.7, 94.9, 95.1, 95.3, 95.5, 95.7, 95.9, 96.1, 96.3, 96.5, 96.7, 96.9, 97.1, 97.3, 97.5,

97.7, 97.9, 98.1, 98.3, 98.5, 98.7, 98.9, 99.1, 99.3, 99.5, 99.7, 99.9, 100.1, 100.3, 100.5,

100.7, 100.9, 101.1, 101.3, 101.5, 101.7, 101.9, 102.1, 102.3, 102.5, 102.7, 102.9, 103.1,

103.3, 103.5, 103.7, 103.9, 104.1, 104.3, 104.5, 104.7, 104,9, 105.1, 105.3, 105.5, 105.7,

105.9, 106.1, 106.3, 106.5, 106.7, 106.9, 107.1, 107.3, 107.5, 107.7, 107.9

• Fits most cigarette/ 12V sockets

• With infrared remote control

Table of Contents

Do you have a question about the FMTD6R and is the answer not in the manual?

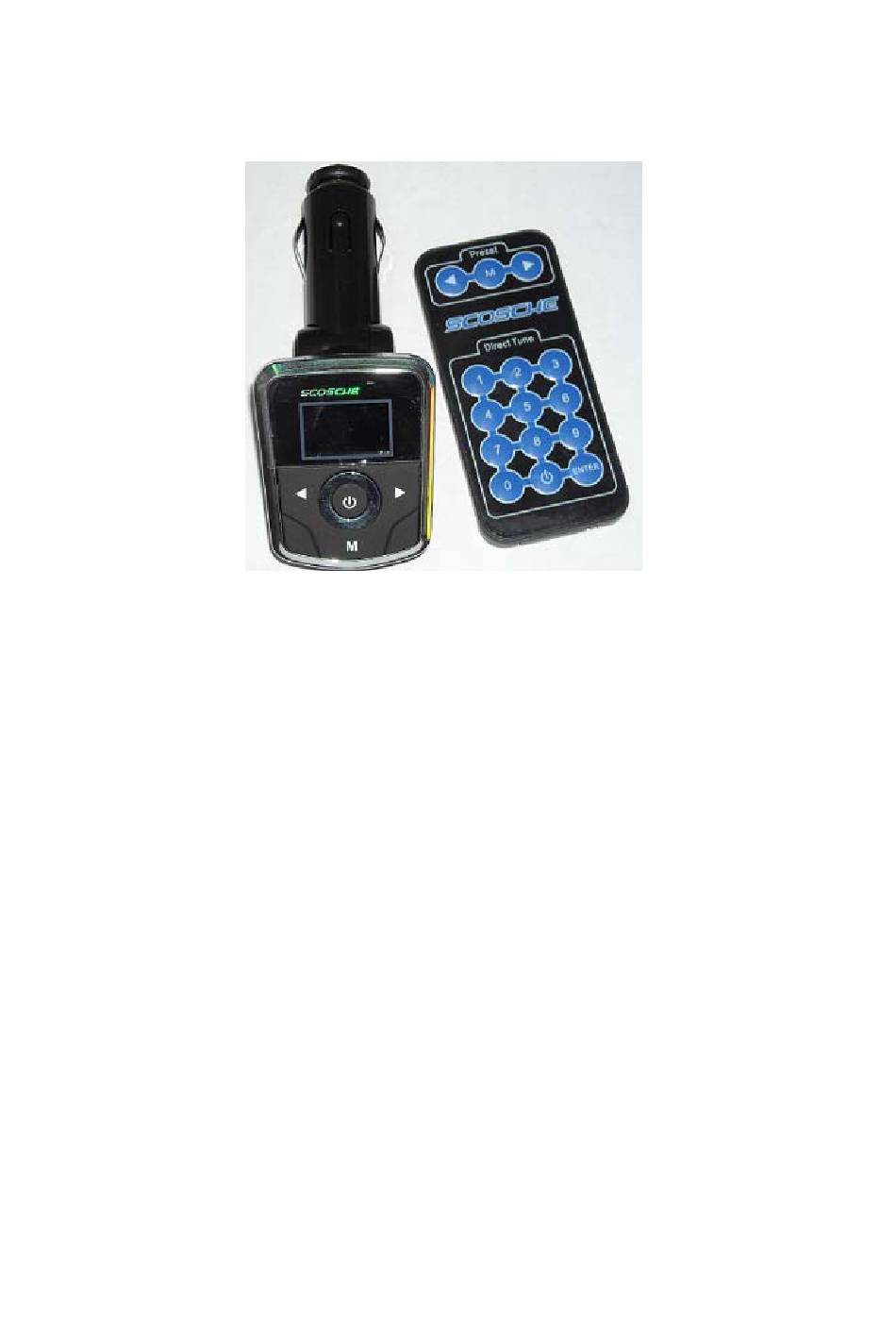

Page 1 User Manual Features: • Built-in FM transmitter (Line-In Function) • Output 5V/800Mha power for charging IPOD • Digital LCD display •Total 100 Frequencies optional: 88.1, 88.3, 88.5, 88.7, 88.9, 89.1, 89.3, 89.5, 89.7, 89.9, 90.1, 90.3, 90.5, 90.7, 90.9, 91.1, 91.3, 91.5, 91.7, 91.9, 92.1, 92.3, 92.5, 92.7, 92.9, 93.1, 93.3, 93.5, 93.7, 93.9, 94.1, 94.3, 94.5, 94.7, 94.9, 95.1, 95.3, 95.5, 95.7, 95.9, 96.1, 96.3, 96.5, 96.7, 96.9, 97.1, 97.3, 97.5, 97.7, 97.9, 98.1, 98.3, 98.5, 98.7, 98.9, 99.1, 99.3, 99.5, 99.7, 99.9, 100.1, 100.3, 100.5,...
Page 2: Set Frequency
Operating instruction: 1. Plug in this advice into any cigarette lighter or 12V power socket. 2. Tune to your radio to a desired FM frequency, then match that same frequency to this device by using the buttons on the unit or on the remote. HINT: Tune to a frequency with no station for best sound quality results.
Page 3 Remote control operating instruction: 1. It can choose the channel by press the numeric key directly. For example, if setup the FM to 87.5MHz, only need to press the numeric key 8,7,5, then press “ENTER” to set to this frequency; 2.
