SENTINEL™ Tracking Tag
©2017 Innovative Wireless Technologies, Inc.
Not to be reprinted, reproduced or distributed in any form without the written permission of Innovative Wireless Technologies, Inc.
Revised: 9/12/2017
FAP5015-025
FAP5015-027
User Manual
Innovative Wireless Technologies, Inc.
1100 Main Street
Lynchburg, VA 24504
Phone: 434-316-5230 (United States)
Fax:
434-316-5232 (United States)
www.iwtwireless.com
5520-16-0281 Rev: C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SENTINEL FAP5015-025 and is the answer not in the manual?

Questions and answers

Summary of Contents for IWT SENTINEL FAP5015-025

  • Page 1 SENTINEL™ Tracking Tag FAP5015-025 FAP5015-027 User Manual Innovative Wireless Technologies, Inc. 1100 Main Street Lynchburg, VA 24504 Phone: 434-316-5230 (United States) Fax: 434-316-5232 (United States) www.iwtwireless.com ©2017 Innovative Wireless Technologies, Inc. Not to be reprinted, reproduced or distributed in any form without the written permission of Innovative Wireless Technologies, Inc. Revised: 9/12/2017 5520-16-0281 Rev: C...

  • Page 2: Table Of Contents

    Table of Contents PRODUCT OVERVIEW ....................2 SAFETY INFORMATION ....................3 2.1 MSHA APPROVAL ........................3 2.2 PROXIMITY TO BLASTING COMPONENTS ................3 2.3 PART 15 OF FEDERAL COMMUNICATIONS COMMISSION (FCC) RULES COMPLIANCE ..4 SPECIFICATIONS ......................5 3.1 SPECIFICATIONS FOR FAP5015-025 PERSONNEL TRACKING TAG ..........5 3.2 SPECIFICATIONS FOR FAP5015-027 ASSET TRACKING TAG ............

  • Page 3: Product Overview

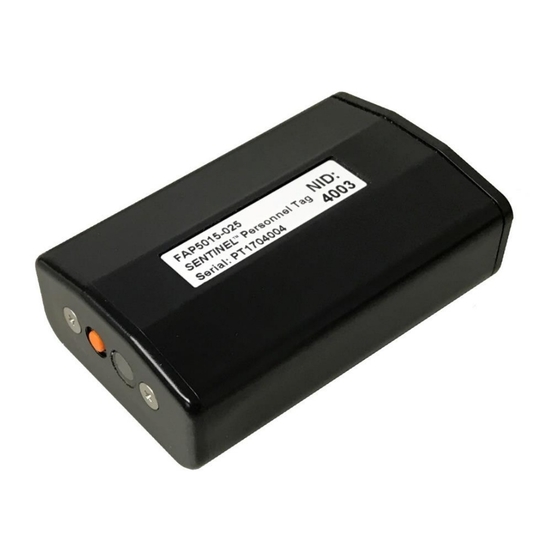

    The SENTINEL™ Tracking Tag is a self-contained, battery-powered device that provides tracking capability within IWT’s ad-hoc wireless digital mesh network. The small and lightweight Tracking Tag is compatible with both the SENTINEL™ and ACCOLADE® Wireless Mesh systems. The Tracking Tag sends network health and status information to the dispatch station including Tag ID, battery level, emergency state, and tracking information.

  • Page 4: Safety Information

    SAFETY INFORMATION IMPORTANT! READ BEFORE OPERATING THE SENTINEL™ TRACKING TAG. This section contains important information on the safe operation of the SENTINEL™ Tracking Tag. MSHA APPROVAL This device has been evaluated by the Mine Safety and Health Administration (MSHA) per Title 30 Code of Federal Regulations Part 23.

  • Page 5: Part 15 Of Federal Communications Commission (Fcc) Rules Compliance

    Changes or modifications to this unit not expressly approved by Innovative Wireless Technologies, Inc., (IWT) may void the user’s authority to operate this equipment. This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference.

  • Page 6: Specifications

    SPECIFICATIONS 3.1 SPECIFICATIONS FOR FAP5015-025 PERSONNEL TRACKING TAG (Typical unless otherwise specified) Operating System Compatibility SENTINEL™ and ACCOLADE® Systems Operating Frequency 902 to 928 MHz Operating Temperature -20C to +70C Operating Life 4 months @ 30-second update rate RF Transmit Power +22 dBm Communications Self-forming mesh network...

  • Page 7: Operating Instructions

    OPERATING INSTRUCTIONS POWER The SENTINEL™ Tracking Tag requires three AA alkaline batteries. Use of other battery chemistries is not allowed. For applications requiring MSHA Intrinsic Safety approval, only the cells listed in Section 2.1 may be used, and batteries must be replaced in fresh air. To turn the Tracking Tag on, insert three AA batteries.
  • Page 8 Figure 2 - Remove screws with Phillips screwdriver Figure 3 - Carefully slide out interior tray Revised: 9/12/2017 5520-16-0281 Rev: C Proprietary and Confidential Page 7 of 15...
  • Page 9 Figure 4 - Replace batteries and note proper polarity Enclosure gasket Figure 5 - Ensure gasket is undamaged and in place Revised: 9/12/2017 5520-16-0281 Rev: C Proprietary and Confidential Page 8 of 15...

  • Page 10: Replacing Batteries Of Fap5015-027 Asset Tag

    Gasket on screw Figure 6 – Replace cover and tighten screws. Ensure the gasket is on the screw before inserting. 4.1.2 Replacing Batteries of FAP5015-027 Asset Tag To insert or replace batteries:  Open enclosure by unscrewing the four captive cover screw on the back/bottom side of the enclosure.
  • Page 11 Figure 7 - External enclosure is held together by four captive screws inserted at the back of the enclosure. Flat side of Tracking Tag assembly Figure 8 - Remove Tracking Tag assembly from external enclosure to replace batteries. Revised: 9/12/2017 5520-16-0281 Rev: C Proprietary and Confidential Page 10 of 15...

  • Page 12: Battery Life

    4.1.3 Battery Life The battery life ranges between 4 and 12 months depending on the user application. The Personnel version of the Tracking Tag (-025) operates for 4 months @ a 30-second update interval, and the Asset version of the Tracking Tag (-027) operates for 12 months @ a 4-minute update interval. LED STATUS INDICATOR The Tracking Tag includes an LED status indicator with distinct blink patterns to provide local feedback to the user.

  • Page 13: Pushbutton

    PUSHBUTTON The Tracking Tag includes an orange multi-purpose pushbutton. In the Personnel version of the Tracking Tag (-025), this button is configured to generate an alert for the dispatcher in the event of an emergency condition. It is also used for initiating programming modes for configuration updates to the device. Pushbutton Figure 10 - Tracking Tag Pushbutton CARRY POUCH FOR PERSONNEL TRACKING (FAP5015-025)
  • Page 14 Belt Loop with Snaps Figure 12 - Carry Pouch Side View The top and bottom of the Carry Pouch have openings for easy access to the pushbutton and LED on top, and the Node ID on the bottom. Bottom window Figure 13 - Carry Pouch Bottom Window Revised: 9/12/2017 5520-16-0281 Rev: C...

  • Page 15: External Enclosure For Vehicle Mounting Or Asset Tracking (Fap5015-027)

    4.5 EXTERNAL ENCLOSURE FOR VEHICLE MOUNTING OR ASSET TRACKING (FAP5015-027) The FAA9100-310 Enclosure Assembly is available as a separate accessory for the Tracking Tag. For applications requiring MSHA Intrinsic Safety approval, the FAA9100-310 Enclosure Assembly is required when mounting the Tracking Tag to a vehicle or using the Tag to track material/assets (see Section 2.1). The external enclosure has an internal gasket for protection against dust and water ingress, four captive lid screws, and a foam insert.
