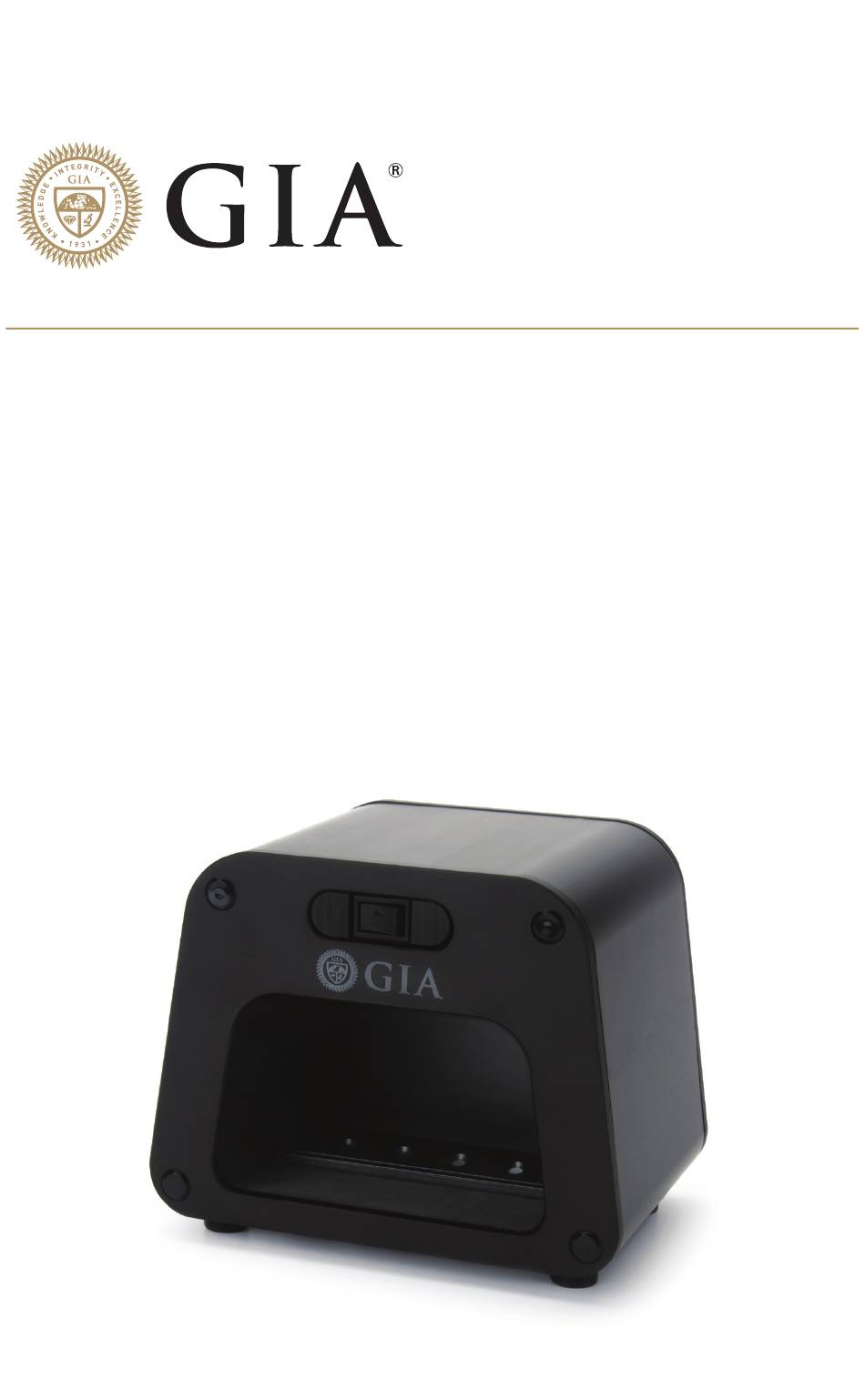

- Page 1 GIA UV Lamp and Viewing Cabinet USER GUIDE SCIENTIFIC INSTRUMENTATION BY GIA * Patent Pending...
-
Page 2: Table Of Contents
Ambient temperature range should not exceed 0°C to 40°C (32°F to 104°F). Maximum relative humidity should not exceed 70%. Main supply voltage fluctuations can reach +/- 10% of the normal voltage. Technical Specifications for the GIA UV Lamp and Viewing Cabinet: Input: AC 100-240V, 0.3A HZ: 50/60 Output: DC 12V 0.5A... -
Page 3: General Information
Fluorescence grading is most commonly performed by visual observation. The GIA UV Lamp and Viewing Cabinet provides a consistent and stable UV light source, as well as a controlled viewing environment for observing gemstone fluorescence. By using an LED as the source, the UV energy emitted is carefully constrained and consistent for all users, providing an industry standard for fluorescence observation. -
Page 4: Room Light Requirements
Room Light Requirements The Reference Block Use the GIA UV Lamp and Viewing Cabinet with standard and stable room lights or at lower light levels, if possible, to improve visual observation of fluorescence. While the cabinet provides a relatively dark environment by design, excessive lighting may diminish the contrast effect of the cabinet chamber. -
Page 5: Using The Lamp As A Handheld Unit
Using the Lamp as a Handheld Unit Stone Positioning in the Cabinet The GIA UV Lamp and Viewing Cabinet is designed to work both as a desktop unit and also as a standalone UV lamp. The lamp can be removed from the viewing cabinet by gently pushing on the oval-shaped metal tab on either side of the power switch. -
Page 6: Parts List
The GIA UV Lamp and Viewing Cabinet includes the following items: Height of the Reference Block: 13 mm (0.5 inches) Viewing Cabinet – 1 piece Weight of the GIA UV Lamp and Viewing Cabinet and Reference Block: UV Lamp – 1 piece 1.7 kg (3.75 pounds) Power supply 12V 0.5A –... -
Page 7: External Power Supply
When cleaning, power off the GIA UV Lamp and Viewing Cabinet and disconnect the device. Solvents may damage the surface of GIA UV Lamp and Viewing Cabinet. DO NOT use liquid or aerosol cleaners to clean the surface of GIA UV Lamp and Viewing Cabinet. -
Page 8: Troubleshooting
To send the device or an accessory to GIA for repair, please first request a Return Material Authorization (RMA) number and any other instructions. Please contact GIA technical support for any issue not listed in this manual at +1 917 286 3678 or instrumentsupport@gia.edu... -
Page 9: Warranty And Terms
Cabinet to the original purchaser and the GIA UV Lamp and Viewing Cabinet is in fact the price paid for the GIA UV Lamp and Viewing Cabinet as a result of any one or defective, then GIA will reimburse the original purchaser the reasonable shipment more of the following: (i) normal wear and tear, (ii) accident, disaster, or event of force and insurance costs. - Page 10 If the returned GIA UV Lamp and Viewing Cabinet is defective, then GIA will provide one EXEMPLARY, INCIDENTAL, RELIANCE, PUNITIVE, OR EXEMPLARY DAMAGES; LOST of the remedies set forth above. Replacement parts included by GIA in a repaired GIA REVENUES, PROFITS OR BUSINESS; OR THE COST OF PROCUREMENT OF SUBSTITUTE UV Lamp and Viewing Cabinet may be new or refurbished, at the election of GIA.
- Page 11 The World’s Foremost Authority in Gemology UVUG0818 ©2018 GEMOLOGICAL INSTITUTE OF AMERICA, INC. ALL RIGHTS RESERVED.
