Petal Sound System for iPod

See page 20

for your hidden

GEMSTONE FUN

button surprise!

OWNER'S MANUAL

BAR710

Barbie and associated trademarks and trade dress are owned by, and used under

Table of Contents

Need help?

Do you have a question about the PETAL SOUND SYSTEM BAR710 and is the answer not in the manual?

Questions and answers

Summary of Contents for Barbie PETAL SOUND SYSTEM BAR710

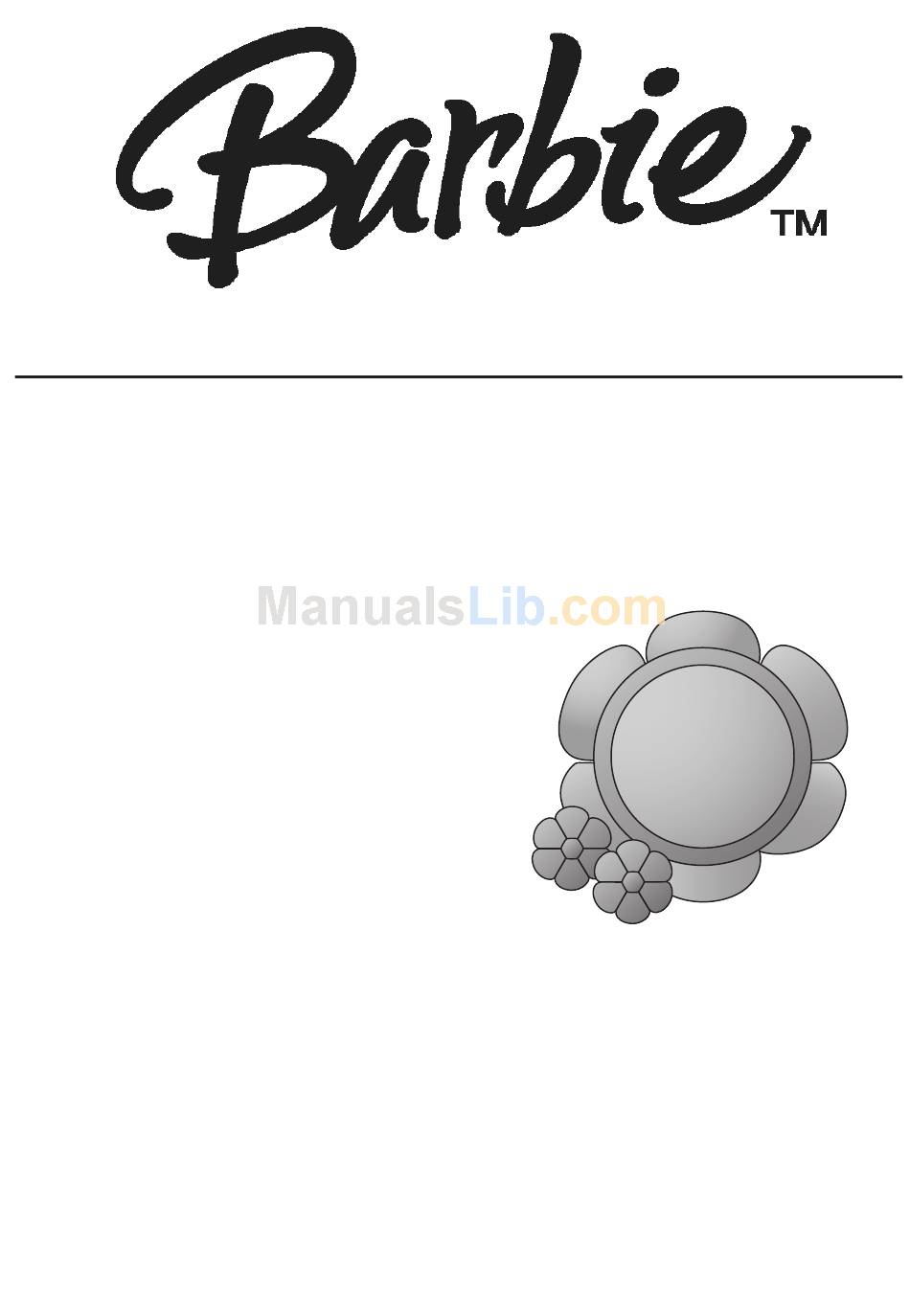

Page 1 Petal Sound System for iPod See page 20 for your hidden GEMSTONE FUN button surprise! OWNER'S MANUAL BAR710 Barbie and associated trademarks and trade dress are owned by, and used under license from, Mattel, Inc. ©2007 Mattel, Inc. All Rights Reserved.
Page 2: Safety Instructions
RISK OF ELECTRIC SHOCK CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. DANGEROUS VOLTAGE: The lightning ﬂash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
Page 3 Before using the unit, be sure to read all operating instructions carefully. Please note that these are general precautions and may not pertain to your unit. For example, this unit may not have the capability to be connected to an outdoor antenna. 1.
Page 4 where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. 15. OVERLOADING Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
Page 5: Fcc Warning
SAFETY INSTRUCTIONS FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modiﬁcations to this equipment may cause harmful interference unless the modiﬁcations are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modiﬁcation is made.
Page 6 Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level.
Page 7: Protect Your Furniture
license from Mattel. We have taken great care to make sure your unit was in perfect working order when it left our factory. It has been designed to give you many years of enjoyment and trouble-free operation. Read this manual before operating this unit to become familiar with its features.
Page 8: Location Of Controls
1. Left Speaker 2. ALARM SET Button 3. ALARM ON/OFF Button 4. AC Cord (Rear of Unit) 5. SLEEP Button 6. VOLUME Control (Side of Unit) 7. STANDBY ON Button 8. SNOOZE Button 9. Display 10. GEMSTONE FUN Button 11. Right Speaker 12.
Page 9 LCD Display 1. PM Indicator 2. AM/FM Band Indicators 3. Time Display 4. Frequency Display 5. Alarm Indicator 6. SLEEP/STEREO/AUX/iPod/Radio/Buzz Indicators...
Page 10: Power Source
AC CONNECTION Use the AC polarized line cord for operation on AC power. Insert the AC plug into any convenient 120V 60Hz household outlet. NOTE: The AC plug supplied with the unit is polarized to help minimize the possibility of electric shock.
Page 11: Optional Connections
PHONE (Headphones) JACK For private listening, plug headphones into this jack. The speakers will be disconnected when a plug is inserted into this jack. AUX IN JACK Insert one end of the audio cable (included) into the LINE OUT jack on your external audio unit and the other end into the AUX IN jack on the rear of this unit.
Page 12: Inserting An Ipod
Locate the correct Universal Dock to use as shown on page 21. Insert the Universal Dock (A) into the iPod compartment (B) (as shown), making sure the tabs are facing front, and slip the tabs into place. Press the rear side of the Universal Dock until it is positioned inside the iPod compartment.
Page 13: Operation
USING AN iPod WITH THIS UNIT With an iPod connected (see previous page), if this unit is not already on, turn this unit on by pressing the STANDBY ON button 1. If you are not already in iPod mode, select “iPod” by repeatedly pressing the iPod/AUX/AM/FM button 2;...
Page 14 OPERATION (CONTINUED) ADJUSTING THE VOLUME To adjust the volume: Rotate the VOLUME control as desired to increase and/or decrease the volume.
Page 15 USING THE RADIO Turn this unit on by pressing the STANDBY ON button. Rotate the TUNING control to manually advance the frequency in the display up or down until the desired frequency appears. NOTE: When a station is tuned, after approx.
Page 16 TO SET OR RESET THE ACTUAL TIME With the power off, press the TIME SET button; the time will blink. Press the TIME SET button (or wait approx. 10 seconds) and the time will be set. Within 10 seconds, press the MINUTE/Skip/Search n button 1 to set the present minute and the HOUR/Skip/Search o button 2 to...
Page 17: Continued On The Next Page
TO SET OR RESET THE ALARM TIME With the power off, press the ALARM SET button; the Alarm time will blink in the display. Within 10 seconds, press the MINUTE/Skip/Search n button 1 and/or HOUR/Skip/Search button 2 to set the alarm mode (iPod, Buzz[er] or Radio).
Page 18 If set to iPod, insert the iPod as shown on page 11. Select your desired track and then make sure both your iPod and this unit are turned off. When the alarm time is reached, this unit will start playback on the track that you selected.
Page 19 TO SHUT THE ALARM OFF To leave the alarm set for the next day, press the STANDBY ON button 1 or ALARM ON/OFF button 2 and the alarm will turn off but be set for the next day. SNOOZE While the alarm is sounding, press the SNOOZE button.
Page 20 OPERATION (CONTINUED) SLEEP While the unit is on, press the SLEEP button; “SLEEP” will appear and "120" will blink in the display which indicates the SLEEP feature is on and set for 120 minutes (the unit will turn automatically after 120 minutes). To set a shorter SLEEP time, press the SLEEP button again within five seconds to select 90 minutes;...
Page 21 FUN button! Step 1 Step 2 Press the GEMSTONE FUN button on your iPod sound system. Barbie has a surprise just for you! Just follow the instructions below and see what you can do with your GEMSTONE FUN button! SURPRISE! The pink light ring...
Page 22 iPod UNIVERSAL DOCKS Locate your iPod in the chart below and select the respective Universal Dock (the Universal Dock No. is engraved at the front of the Universal Docks as shown on the next page) to match with your iPod. Insert the corresponding Universal Dock and your iPod into the unit as described on page 11.
Page 23 For the iPod nano and for the iPod video (Fifth Generation), please use the universal docks included with your iPod. • Also included with this unit is a dock for use with the Barbie MP3 player ; it is marked on the bottom as “MP3 Player, 6”. There is also a “dust cover”...
Page 24: Troubleshooting Guide
If you experience a problem with this unit, check the chart below before calling for service. SYMPTOM No sound. AM or FM, no sound. AM/FM, poor sound. iPod mode, no sound. Time reset to “12:00”. Alarm does not turn on. CAUSE Volume is set to minimum.
Page 25 LIMITED WARRANTY (Valid in the United States) Emerson Radio Corp. warrants manufacturing defects in original material, including original parts and workmanship, under normal use and conditions, for a period of ninety (90) days from the date of original purchase in the U.S. With your dated proof of purchase, we will provide repair service at no charge for labor and parts at an authorized Depot Repair Facility, or replace the product in our discretion.
Page 26 Consumer Electronics, Home Appliances and Home Office Products Thank you for choosing EMERSON SYNNEX Canada Limited gives the following express warranty to the original consumer purchaser or gift recipient for this EMERSON product, when shipped in its original container and sold or distributed in Canada by SYNNEX Canada Limited or by an Authorized EMERSON Dealer: SYNNEX Canada Limited warrants that this product is free, under normal use and maintenance, from any defects in material and workmanship.
Page 27 ® BAR710-081207-02 Printed in China...
