1760H902 Ed.02

PROMet Three-Phase Panels

User Manual

AKO-1760x, AKO-1761x, AKO-1762x

Table of Contents

Need help?

Do you have a question about the AKO-17609 and is the answer not in the manual?

Questions and answers

Summary of Contents for AKO AKO-17609

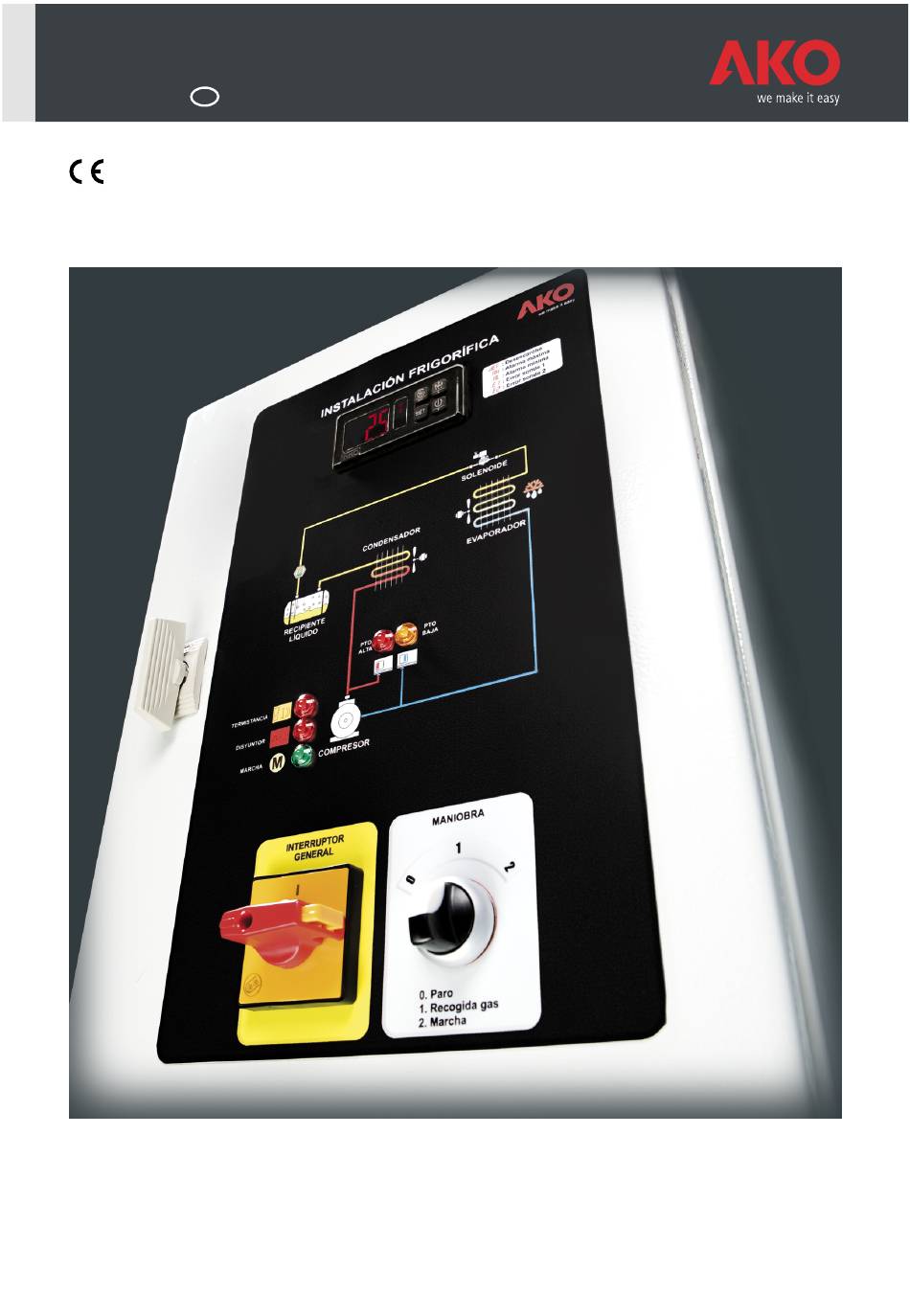

Page 1 1760H902 Ed.02 PROMet Three-Phase Panels User Manual AKO-1760x, AKO-1761x, AKO-1762x...
Page 2: Table Of Contents
Only qualified personnel may install the product or carry out technical support. This product has been developed for its use in the applications described in its manual, AKO Electromecànica does not guarantee its operation in any use not foreseen in this document, and will not take any responsibility in any event for damage of any type that might be caused by incorrect use, configuration, installation or start-up.
Page 3: Chapter 1: Recommendations
1.- RECOMMENDATIONS Disconnect the voltage before carrying out any operations inside the electrical panel. All wiring should be according to current standards and should be carried out by authorised staff. Only carry out the wiring foreseen in the wiring diagrams. Using the electrical panel not observing the manufacturer's instructions may alter the appliance's safety requirements.
Page 4: Chapter 2: Installation
2.- INSTALLATION - Remove the four silicone protections (1). - Make 4 holes on the wall with the dimensions indicated in the drawing. - Fasten the panel to the wall using 4 suitable screws, washers and plugs. - Before making the wiring, remove the bottom cover (2) and make suitable holes in it for the cable entry. Use a gland to maintain the indicated degree of protection.
Page 5: Chapter 3: Wiring
3.- WIRING POWER SUPPLY INPUT COMPRESSOR Maximum consumption is indicated in the table COMPRESSOR on page 9. TT 400 Vac - 50Hz According to model, see table on page 9. DEFROST RESISTORS FAN 1 CONDENSER R1 R2 R3 N Max. 1.5A (2.8A if not using the second fan, Max.
Page 6 FAN 2 FAN CONTROL PRESSOSTAT CONDENSER CONDENSER Terminal equivalence table Terminals DANFOS ALCO PENN RANCO Max. 1.5A PRESSOSTAT CONDENSER FAN CONTROL THERMISTORS CRANKCASE RESISTOR 11 12 If the installation does not have a thermistor a bridge should be made between 14 11 terminals 7 and 10, while terminals 8 and...
Page 7 HIGH / LOW PRESSOSTAT LIQUID SOLENOID VALVE Terminal equivalence table Terminals 13 14 15 16 20 21 DANFOS ALCO PENN RANCO A B C D In ALCO pressostats a bridge has to be made between terminals 22 and 11, to follow the HIGH / LOW LIQUID SOLENOID protection series.
Page 8 According to model, see table on page 9. RESISTOR THERMOSTAT PROBES 26 27 28 29 30 32 In models with AKO-14323 Mesh microcontroller (see table), if the installation does not have a resistor thermostat, make a bridge between terminals 30 and 32.
Page 9: Chapter 4: Comparative Table
20 A 5.- PARAMETER CONFIGURATION The AKO microcontroller has been factory configured for optimum operation in most refrigerated installations. Refer to the following table to check that this configuration is adapted to your needs. If you want to change a parameter, refer to the microcontroller's manual.
Page 10 Level 1.- Control Default values AKO-17609 AKO-17617 Description Units Min. Max. 17616 17624 Temperature Adjustment (Set Point) (ºC/ºF) (limits depending on probe type) C0 Calibrating probe 1 (Offset) (ºC/ºF) -20.0 20.0 C1 Probe 1 differential (Histeresis) (ºC/ºF) 20.0 Upper blocking of the set point (ºC/ºF)
Page 11 Level 1.- DEFROST Control Default values AKO-17609 AKO-17617 Description Units Min. Max. 17616 17624 (h.) d0 Defrost frequency (Time between two starts) d1 Maximum defrost duration (0=defrost deactivated) (min.) Type of message during defrost: 0=Current temperature; 1=Temperature at start of defrost;...
Page 12 Level 1.- ALARMS control Default values AKO-17609 AKO-17617 Description Units Min. Max. 17616 17624 A0 Configuration of temperature alarms: 0=Relative to SP; 1=Absolute A1 Maximum alarm probe 1 (must be greater than SP) (ºC/ºF) 99,9 99,9 A2 Minimum alarm probe 1 (must be less than SP) (min.)
Page 13 Level 1.- General status (Continuación) Default values AKO-17609 AKO-17617 Description Units Min. Max. 17616 17624 Selection of type of input 1=1 probe + 2 digital inputs, 2=2 probes +1 digital input P5 MODBUS Address Configuration of AUX relay 0=Fan (only 2-relay equipment)
Page 14: Chapter 6: Operation
6.- OPERATION 6.1- Description Ÿ 1. AKO microcontroller. Ÿ 2. Microcontroller messages help. Ÿ 3. High pressure switch indicator. Ÿ 4. Thermistor indicator (Cond. U.). Ÿ 5. Current breaker indicator (Cond. U.). Ÿ 6. Compressor operating indicator. Ÿ 7. Main switch.
Page 15: Chapter 6.2: Controls
6.2- Controls AKO Microcontroller (1) Refer to the attached microcontroller manual about this device operation. Main switch (7) Starts up (pos.1) or stops (pos. 0) the control panel. As a safety measure, the door cannot be opened when the panel is operating.
Page 16: Chapter 7.1: General Input (Power)
7.1- General input (Power) * According to model, refer to table on page 9. I > I >I > -K1M -K2M -X-24 -X-25 -X-PE 230VAC - 6A Max. 1500W Aux. Power Supply, Resistors, Alarms, Thermostats, Condenser speed regulator, etc. Compressor Defrost R.
Page 17: Chapter 7.2: Control
Operations Pages 16-25 Controllers Pages 26-28 -K1M -K1M -X-3 High Press. >hp Fan 2 -X-4 -X-11 -X-1 -X-5 -X-12 -X-2 -X-6 Fan 1 Fan 2 Crankcase Current Condenser Condenser Resistor Breaker Alarm If a speed regulator is used for the condenser's fans, power it from the auxiliary output (Terminals X-24 and X-25).
Page 18 7.2- Control General input Pages 14-15 0 - Compressor Stop 1 - Pump down 2 - Run Thermistor High/Low pressure switch -H10 -K1M Green Alarm Alarm Thermistor High P. Compressor...
Page 19 * Only AKO-17617/17618/17619/17620/17621/17622/17623/17624 ** Only AKO-17609/17610/17611/17612/17613/17614/17615/17616 Controllers Pages 26-28 -D3* -K1M Saf. Therm. Defrost R. -X-20 -X-22 -K2M -X-21 -X-23 Amber Solenoid Liquid pressure Evaporator switch Max. 3 Amp.
Page 20 7.3.1- Controller (Only AKO-17609/610/611/612/613/614/615/616) Control AKO-D14223 Pages 16-17 12.6 General input Pages 14-15 230V -X 26 27 28 -ST2 -ST1 AKO-14901 AKO-14901 Probe Probe...
Page 21 7.3.2- Controller (Only AKO-17617/618/619/620/621/622/623/624) AKO-D14323 Control Pages 16-17 12.6 General input Pages 14-15 230V -X 26 27 28 -ST2 -ST1 AKO-14901 AKO-14901 Probe Probe...
Page 22 NOTES:...
Page 23 NOTES:...
Page 24 Tel. (34) 938 142 700 | Fax (34) 938 934 054 | e-mail: ako@ako.com | www.ako.com we make it easy We reserve the right to supply materials that might vary slightly to those described in our Technical Sheets. Updated information is available on our website: www.ako.com.
