Summary of Contents for Sonim AVK01G

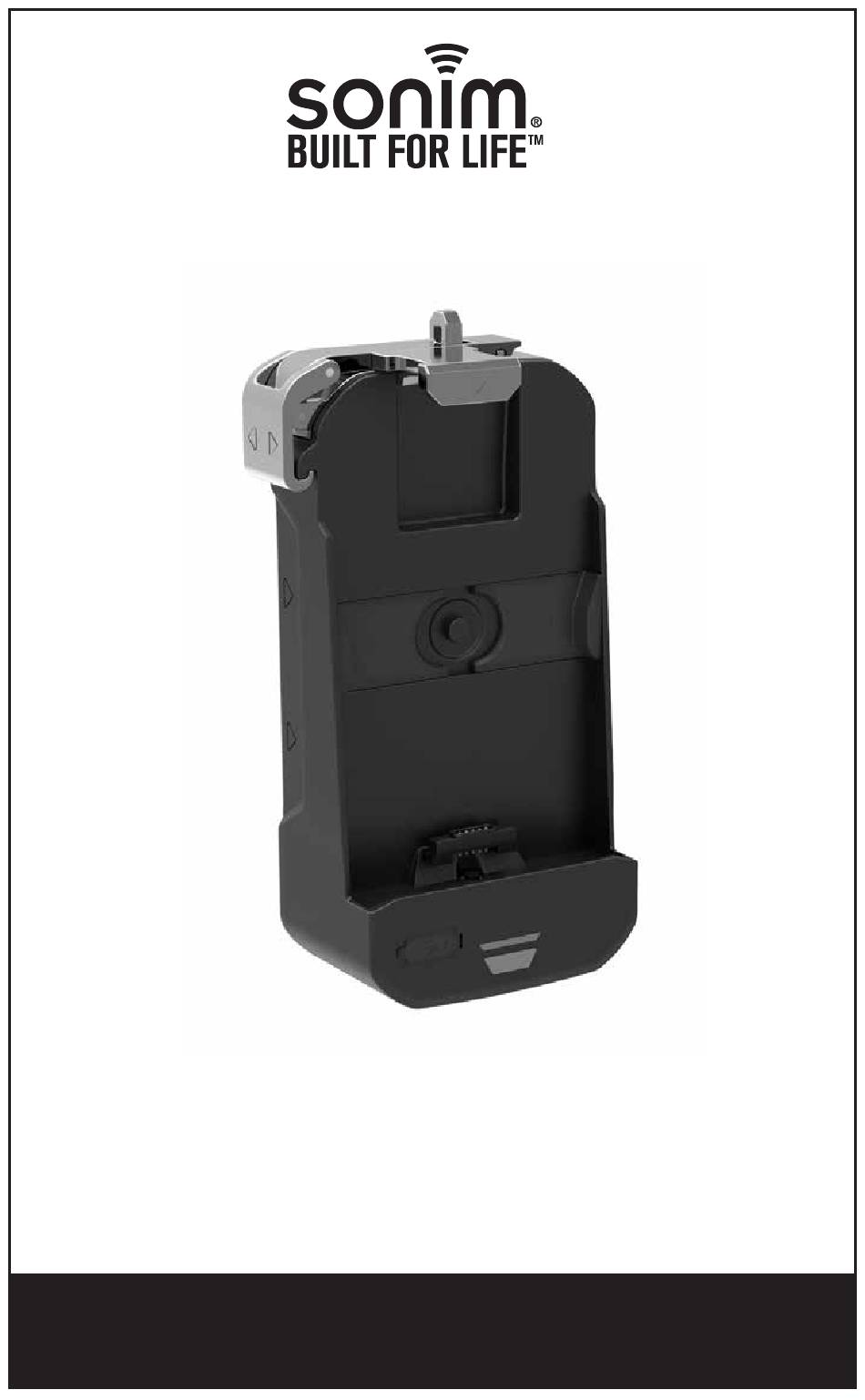

- Page 1 Owner’s / Installation Manual Bluetooth PTT Car Kit for XP6 & XP7 ® ® AVK01G For support, please call (888) 858-9460, or visit www.sonimtech.com...
- Page 2 ® ® intended to be installed by a professional installer WARNING: Changes or modifications made to this equipment not expressly approved by Sonim Technologies, Inc. for compliance could void the user’s authority to operate the equipment. FCC Statement • This device complies with part 15 of the FCC rules (FCC ID: WYPVK01011AA). Operation is subject to the following two conditions: •...
- Page 3 Width Adjustment Optional Padlock Location (3mm lock) Phone Lockdown Latch Mount Holes Width Adjustment Release Button Speaker Sonim USB Connector PTT Button or Optional Foot Pedal Microphone USB Port (sold seperately) or Optional Gooseneck Mic Optional Palm Mic (sold seperately)
-
Page 4: Mounting Bracket
Mounting Bracket The mounting bracket gives the convenience and adjustability to have the car kit installed where the vehicle operator needs and wants it. The bracket should be installed in a location that does not interfere with the normal operation of the vehicle or over the vehicles air bag deployment areas. -
Page 5: Ptt Button
PTT Button 1. For gear shift PTT attachment, install and use the supplied velcro strip. 2. To place the PTT on a flat surface in your vehicle, replace small plastic back with larger supplied plastic part and screw mount the PTT into desired location. - Page 6 Optional Accessories (sold seperately) Gooseneck Microphone 1. Mount the microphone in the optimum location for the drivers use in the vehicle. (See your Gooseneck Microphone manual for detailed installation instructions.) 2. Plug the microphones connection end into microphone socket on the back of the car kit. (The Gooseneck Microphone optional accessory replaces the included car kit microphone.) Carefully conceal cables to avoid any visual or...
-
Page 7: Auto Pairing
2. Install the handset in the car kit, the handset Bluetooth will turn on automatically. 3. Search “Sonim Car Kit AVK01G” in handset. 4. Press “Sonim Car Kit AVK01G” in handset to pair. 5. After paired successfully, the LED will turn to green. - Page 8 Functions Voice Call functionalities Answer call Short press PTT button <400ms Reject call Press and hold the PTT button for >400ms End call Short press PTT button a. Short press PTT button. This will put the active call on hold and accept the waiting call Answer waiting call b.
- Page 9 Phone Inserted into the Car Kit Cradle (In PTT Call Mode Functionality) Generate only ‘button pressed’ and ‘button Just like pressing the PTT button on the device released’ events The receiving “Ring Alert” shall change the mode to voice Receiving a voice call call mode Ending the PTT call Must be performed from the phone not the car kit...
-
Page 10: Warranty
2) This warranty does not cover Product failures caused by installations, modifications, or repair or opening of the Product performed by any person other than a Sonim- authorized person. Tampering with any of the seals on the Product will void the warranty.
