Seneca NUC Installation & Service Instructions Manual

Seneca NUC Hospital Digital Network (HDN)
Installation & Service Instructions
The Seneca NUC player replaces the MediaWave MW103 and
AOpen players as the common media players for Patient Point
(WRN) Waiting Room, (HDN) Hospital Digital Network, and (PWR)
PracticeWire installations. It ships with a HDMI cable, RS-232
cable, and power brick, all of which will need to be used with this
unit. There is a single serial port for the monitor control cable, 2
HDMI ports, (the topmost of which must be used,) and a single
ethernet port. All Seneca NUCs are WiFi capable, but will be
utilizing wired ethernet connections unless specified in the work
order. DON'T USE WIFI UNLESS SPECIFICALLY INSTRUCTED!
NOTE: If this visit is for a swap, all old cables will need to be sent
back with the old unit. The old cables cannot be used with the
new unit.

Table of Contents

Table of Contents
Table of Contents Table of Contents
Parts List ................................................................................ 2
Required Tools & Equipment ................................................. 2
Opening Boxes - Missing/Damaged Equip. ........................... 2
Cradlepoints ........................................................................... 3
Testing Connectivity .............................................................. 3
Deviations .............................................................................. 3
Cabling ................................................................................... 3
Mounting ............................................................................... 5
Premier 4263 Tilt Mount ....................................................... 6
Peerless SA746PU/SWP700 Corner Mount ........................... 9
Patient Point Legacy "Universal" Mount ............................. 13
Setup BIOS Settings ............................................................. 16
Configuring the System - (A.K.A Using the Tech Screen) .... 18
Exiting the Netkey Content Loop ......................................... 19
Reimaging The System ......................................................... 19
Checkout & Deliverables...................................................... 20
Parts based on "SENECA NUC Media Player - Mounting & Installation" - V1.1 12/2016 by Eric Bram of Patient Point

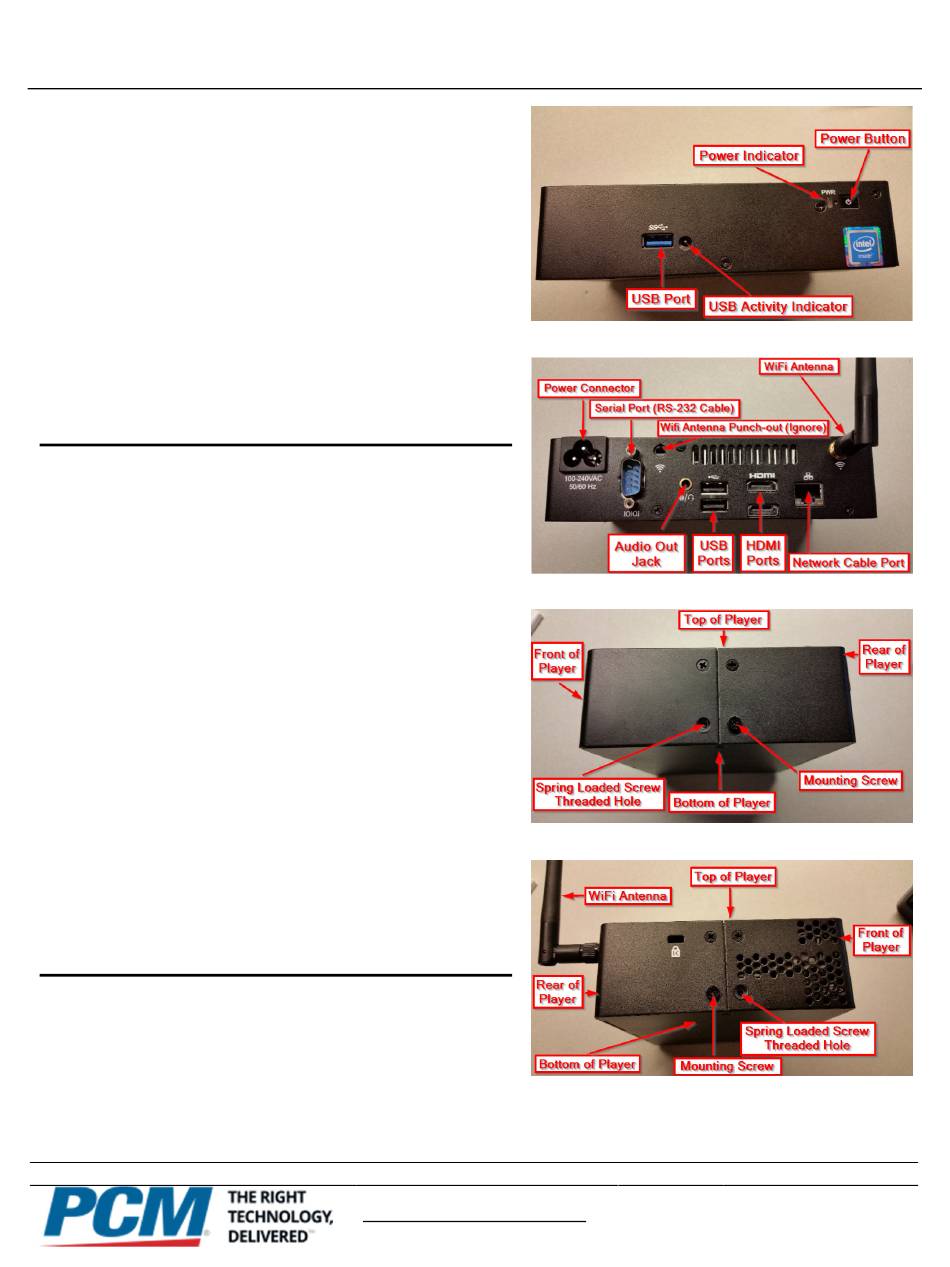

Seneca NUC Front
Seneca NUC Back
Seneca NUC Side 1
Seneca NUC Side 2
Call (877)233-9114 for support.
Page 1 of 20
Author: Kirk Thomas
Revision: 2c - Mount Integration
Last Update: 3/3/2017 12:01 PM
