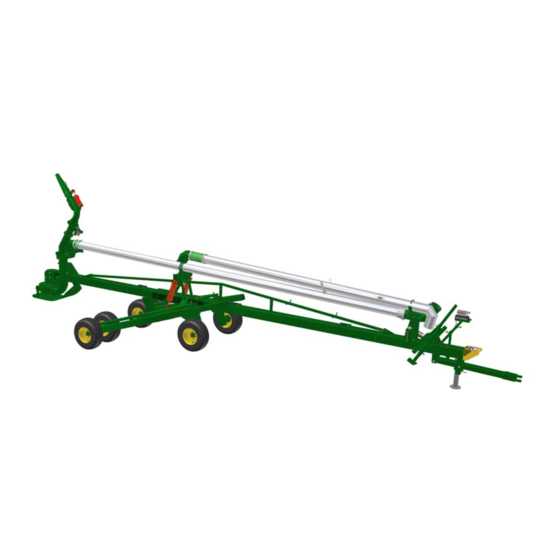

Liquid manure lagoon pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PL490
LIQUID MANURE
LAGOON PUMP
OPERATOR'S MANUAL
PAGE

Advertisement

Table of Contents
loading

Related Manuals for Husky PL490

Summary of Contents for Husky PL490

  • Page 1 PL490 LIQUID MANURE LAGOON PUMP OPERATOR’S MANUAL PAGE...
  • Page 2 Tires and electric or hydraulic motors are covered by manufacturer's warranty and although Husky may assist to get warranty, Husky will not be responsible other than that allowed by manufacture's warranty. Items subject to normal wear from use not covered by guarantee if faulty part is simply worn.

  • Page 3: Table Of Contents

    Towing……………………………………………………………………………………………………. 4.04 Pre-Operation Checklist………………………………………………………………………………….. 4.05 Equipment Matching……………………………………………………………………………………... 4.06 Installation of the PL490 Lagoon Pump………………………………………………………………….. 4.07 Attaching Accessories……………………………………………………………………………………. 4.08 Operation of the HUSKY PL490 LIQUID MANURE LAGOON PUMP……………………………… 4.09 Removing Manure Pump………………………………………………………………………………... 4.10 Clean-Up…………………………………………………………………………………………………. 4.11 Storage……………………………………………………………………………………………………. 4.11.1 Placing In Storage………………………………………………………………………………………... 4.11.2 Removing From Storage………………………………………………………………………………….

  • Page 4: Serial Number Location

    SERIAL NUMBER LOCATION Always give your dealer the serial number of your Husky Liquid Manure Lagoon Pump when ordering parts or request- ing service or other information. The serial number plate(s) is located where indicated. Please mark the number in the space provided for easy reference.

  • Page 5: Introduction

    Operator's Manual. Keep this manual handy for frequent reference and to pass on to new operators or owners. Call your Husky Dealer if you need assistance, information or additional copies of the manuals.

  • Page 6: Safety

    This Safety Alert Symbol Means identifies important safety ATTENTION! BECOME ALERT messages on the Husky Liquid YOUR SAFETY IS INVOLVED Manure Lagoon Pump and in this manual. When you see this symbol, be alert to the possibility of personal injury or death.

  • Page 7: General Safety

    Read and understand the Operator's Manual and are responsible for the SAFE operation and maintenance of your Husky Liquid Manure Lagoon Pump. YOU safety signs before operating, maintaining, adjusting must ensure that you and anyone else who is going to operate, or unplugging the manure pump.

  • Page 8: Operating Safety

    Read and understand all the information contained in the Operator's Manual regarding maintenance, adjusting and Do not allow riders on the Husky Liquid Manure Lagoon operating Husky Liquid Manure Lagoon Pump. Pump or the tractor during operation, transport or filling.

  • Page 9: Hydraulic Safety

    Such repairs will fail suddenly and create a hazardous and unsafe condition. Ensure that the Husky Liquid Manure Lagoon Pump is hitched positively and safely to the tractor drawbar. Use proper safety chain to secure a safe hitch hookup when transporting.

  • Page 10: Manure Storage Facility

    2.07 STORAGE SAFETY Remove the smallest portion of the split backing paper. Store the Husky Liquid Manure Lagoon Pump on a firm, level surface. Wash area with soapy water and install decal while still soapy, then it can be smoothed out easily.

  • Page 11: Sign-Off Form

    Occupational Safety and Health Administration (OSHA) and safety practices as recommended by the Agriculture Safety Associations across Canada. Anyone who will be operating and/or maintaining the Husky Liquid Manure Lagoon Pump must read and clearly understand ALL Safety, Operating and Maintenance information presented in this manual.

  • Page 12: Safety Decal Locations

    3 SAFETY DECAL LOCATIONS The types of decals on the equipment are shown in the illustration below. Good safety requires that you familiarize yourself with the various Safety Decals, the type of warning and the area, or particular function related to that area, that requires your SAFETY AWARENESS.

  • Page 13: Operation

    4.01 TO THE NEW The Husky PL490 Liquid manure lagoon pump is OPERATOR OR OWNER designed to be driven with a farm tractor with a 1000 RPM PTO .

  • Page 14: Break - In

    Although there are no operational restrictions on the pump when it is new, there are some mechanical checks that Efficient and safe operation of the Husky Liquid must be done to insure long term integrity of the unit. When Manure Lagoon Pump requires that each operator reads and...

  • Page 15: Equipment Matching

    150 to 160 Tractor HP 10” H-10000 Pump 44000 LPM (10000 Imp GPM) 150 to 160 Tractor HP 8” PL490 Lagoon Pump 31000 LPM (7000 Imp GPM) 150 to 160 Tractor HP 10” PL490 Lagoon Pump 44000 LPM (10000 Imp GPM)

  • Page 16: Installation Of The Pl490 Lagoon Pump

    PL490 LAGOON PUMP The pump can be operated at any point in the lagoon and does not The Husky Liquid Manure Lagoon Pump has a single point need to be right on the bottom. Be careful that the tractor is not pintle hitch;...

  • Page 17: Attaching Accessories

    Fasten PTO hydraulic control bank levers. You may need to raise the pump safety chain to guard on Husky Liquid Manure Lagoon Pump and and run near the surface of the pit to agitate a thick crust.

  • Page 18: Removing Manure Pump

    PUMP 4.11.1 PLACING IN STORAGE Remove the discharge pipe, bipod legs and safety clips from After the season's use, inspect all systems of the Husky the pump. Liquid Manure Lagoon Pump. Repair or replace any worn or damaged components to prevent any down time at the beginning Remove the P.T.O.

  • Page 19: Service And Maintenance

    SERVICE AND 5.01 SERVICE MAINTENANCE 5.01.1 FLUIDS AND LUBRICANTS Grease Use an SAE multi-purpose high temperature grease with extreme pressure (EP) performance and containing at least 1.5% molybdenum disulfide. Also acceptable is an SAE multi-purpose lithium base grease. Wheel Bearing Grease Use an Esso EP2 or equivalent bearing grease at all times.

  • Page 20: Bearings

    Change Seals & Stainless Steel Collar on Gearbox FIG. 5 PTO DRIVELINE SERVICING If the Husky PL490 Liquid Manure Lagoon Pump is used properly it should give many years of service. When worn parts are needed always call your dealer or the factory and get original parts.

  • Page 21: Service Record

    5.01.5 SERVICING RECORD See Lubrication and Maintenance sections for details of service. Copy this page to continue record. ACTION CODE: CHECK CHANGE CLEAN LUBRICATE REPLACE HOURS SERVICED MAINTENANCE 8 HOURS PTO Driveline Driveshaft Knuckle & Brg Gearbox Seals Oil In Bearing Box 20 HOURS PTO Driveline Driveshaft Knuckle &...

  • Page 22: Maintenance

    5.02 MAINTENANCE 5.02.2 PTO DRIVELINE SHEAR PIN The efficient and safe operation of your Husky PL490 Liquid Manure Lagoon Pump will depend to a great degree on The PTO driveline is equipped with a shear pin to your diligence in following the maintenance and adjustment prevent damage to the mechanical drive should an object jam in procedures outlined in this section.

  • Page 23: Changing Bearings

    5.02.3 CHANGING BEARINGS 5.02.4 GREASING WHEEL BEARINGS During the life of the Husky Liquid Manure Lagoon Pump the bearings may become worn and need to be replaced. Follow this procedure when greasing the wheel bearings: Proceed in this manner: Be sure the pump is on flat ground.

  • Page 24: Trouble Shooting

    TROUBLE SHOOTING The Husky Farm Equipment PL490 Liquid Manure Pump is a simple transportable pump that is used to transfer liquids. It is a reliable system that requires minimal maintenance. In the following section, we have listed many of the problems, causes and solutions to the problems you may encounter. If you encounter a problem that is difficult, after having read through this troubleshooting section, please call your local Husky dealer or call the factory direct.

  • Page 25: Mechanical

    SPECIFICATIONS 7.01 MECHANICAL MODEL 3" ELEC. 4" ELEC. H5000 H6000 H10000 LAGOON PROPELLER LITRES PER MINUTE 1800 2700 14000 23000 27000 44000 27000 100000 U.S. GALLON/MIN 3600 6000 7000 12000 7000 24000 IMP.GALLON/MIN 3000 5000 6000 10000 6000 22000 LENGTH FEET 4' - 12' 4' - 12' 8' - 14'...

  • Page 26: Index

    Manure Storage Facility Safety Mechanical Specifications Operation PARTS BOOK Operation of PL490 LIQUID MANURE LAGOON PUMP Operating Safety The Parts Book with a list of all the parts on your pump Operator Orientation is enclosed with this manual at the time you purchase the pump new.
  • Page 27 PAGE 27...
  • Page 28 HUSKY FARM EQUIPMENT LIMITED 7440 Wellington Rd #17 R.R. # 2 ALMA Ontario, Canada N0B 1A0 Phone(519) 846-5329 Fax (519) 846-9378 ISSUE DATE: OCT, 2006 PRINTED IN CANADA PART NUMBER:490-00-00-000 PAGE 28...
