Summary of Contents for Tucker GTR S

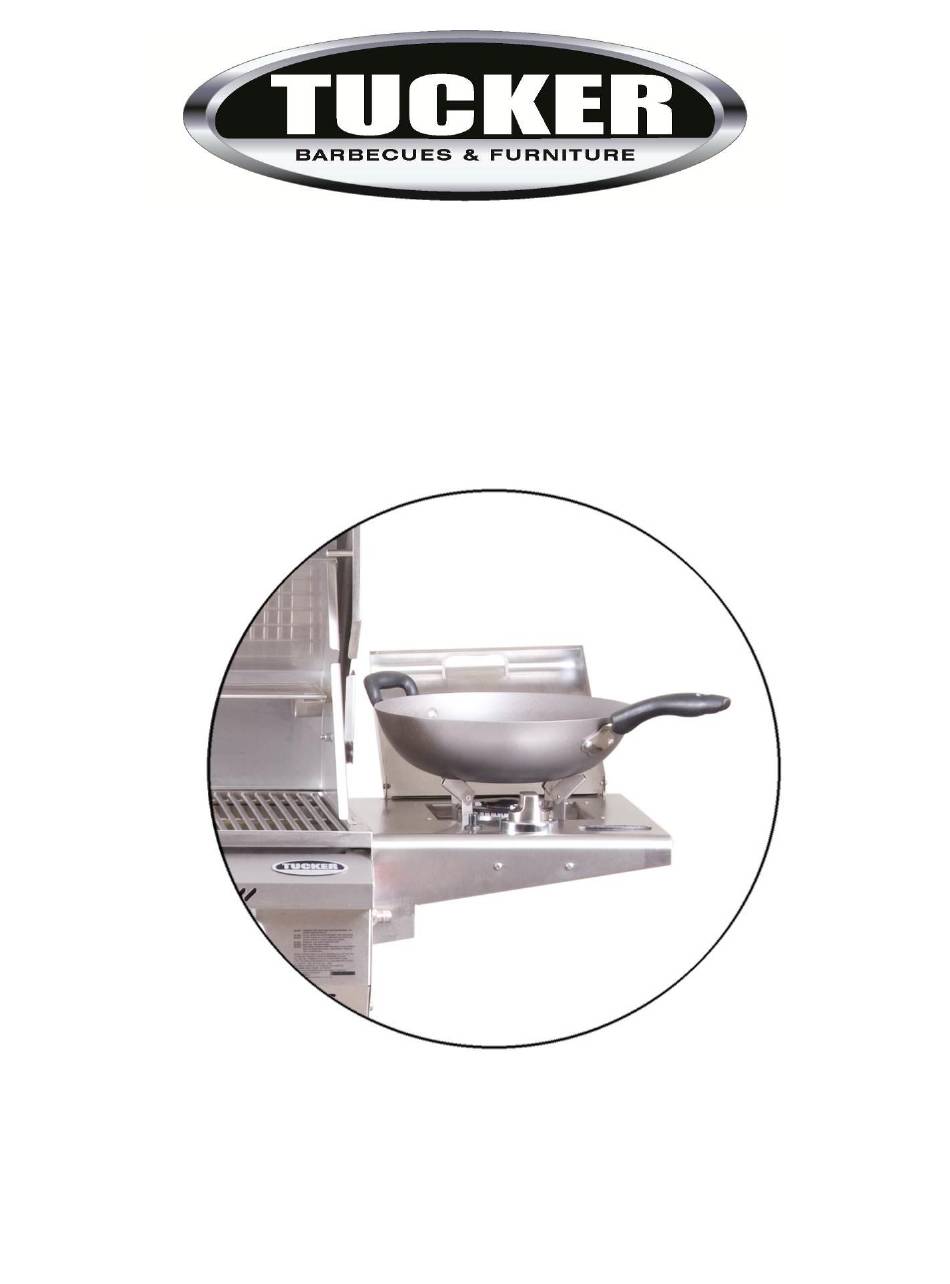

- Page 1 GTR S / ST AND GTR SS / ST SIDE BURNER ASSEMBLY, INSTALLATION AND OPERATING INSTRUCTION MANUAL IMPORTANT – PLEASE READ ALL INSTRUCTIONS BEFORE YOU ASSEMBLE, INSTALL OR OPERATE THIS APPLIANCE.
-
Page 2: Warning For Your Safety
IMPORTANT Tucker side burners are approved for outdoor use only Do not use indoors or in any enclosed area. Always turn off gas supply when you finish using this appliance. Always use your barbecue and side burner on a level surface. - Page 3 If a grease/fat fire should arise, turn off the gas supply immediately until extinguished. Always open the lid or hood before lighting. Never check for leaks with a match or open flame. Do not store or use gasoline or other flammable vapours and liquids in the vicinity of this appliance.
- Page 4 2. Remove all the packaging material, cable ties and plastic coatings from the side burner. 3. Check you have all the correct components. GTR S SIDE BURNER GTR SS SIDE BURNER 1 X Side Burner Body, 1 X Side burner Body...
-
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS This barbecue is designed and approved for outdoor use only. Be mindful of the location of installation of the BBQ. It is better that the prevailing wind blows into the front of the BBQ during cooking as strong winds blowing into the back or across the back of the hood whilst cooking with the hood closed can cause overheating of the BBQ. - Page 6 DIAGRAMMATICAL REPRESENTATIONS OF OUTDOOR AREAS The following figures are diagrammatical representations of outdoor areas. The areas used in the figures below are examples – the same principles apply to any other shaped area. FIGURE F1 – OUTDOOR AREA – EXAMPLE 1 FIGURE F2 –...
- Page 7 FIGURE F3 – OUTDOOR AREA – EXAMPLE 3 Both ends open FIGURE 4 OUTDOOR AREA –EXAMPLE 4 30% or more in total Open side at of the remaining wall least 25% of area is open and total wall area unrestricted. - 7 -...
- Page 8 OPEN AT SIDE AT LEAST 25% OF TOTAL WALL AREA. 30% OR MORE IN TOTAL OF THE REMAINING WALL AREA IS OPEN AND UNRESTRICTED FIGURE F5 – OUTDOOR AREA – EXAMPLE 5 30% or more in total of the remaining wall area is open Open side at and unrestricted.
-
Page 9: Technical Data
Width Depth 325mm 445mm NOTE: The optional built in or intergrated side burner gas consumption is below. TECHNICAL DATA The nominal gas consumption of the GTR S and GTR SS Side Burner. Model Gas type Injector Pressure Input GTR S Propane 2.8 kpa... - Page 10 The minimum capacity propane cylinder for this side burner is 4 KG. The intended use of this side burner is to be installed onto a Tucker GTS or GTR Trolley or alternatively it may be set into brickwork or the like with the following clearances to combustibles.
- Page 11 Side burner inlet fitting BBQ inlet fitting WARNING: THERE MUST BE NO NAKED FLAMES IN THE AREA WHEN CONNECTING THE SIDE BURNER TO A BARBECUE AND OR GAS SUPPLY. Attachment of the gas cylinder to the regulator and hose. Attach the regulator to the Gas Cylinder by using the wing Nut or wheel nut fitted onto the regulator.
- Page 12 Once connected leak test all the connections by brushing a solution of soapy water around the joints and the gas cylinder valve. NOTE: You must have the control knobs in the off position and have the gas supply turned on at the cylinder valve so as to do this leak test.
- Page 13 FOR PERMANENT CONNECTIONS to natural gas or a fixed propane supply, an authorised person, in accordance with these instructions, local gas fitting regulations, municipal building codes, the AGA installation code AS5601 and any other relevant statutory regulations, must be employed. For connection to a natural gas bayonet fitting, a gas regulator must be fitted at the inlet of the appliance, and an approved 10mm, class A, natural gas hose (no longer than 2 metres), going from the gas regulator to the bayonet point, complying with...
-
Page 14: Operating Instructions
Turn the burner to the “LOW” setting and adjust it if necessary by removing the control knob and using a 2.4mm slotted screw driver you can adjust the “low” setting up or down to suit your gas pressure. Note: Turn screw driver anti-clockwise to adjust the flame height up, NOTE, you want to achieve the lowest flame height at “... - Page 15 NOTE: GTR S Side burner can be used with a pot or saucepan when the trivet wings are down as in the picture. The trivet wings can be turned up to cradle a larger wok with a round bottom. NOTE : GTR SS Side burner has 2 fixed trivets that can be removed depending on the size of the pot or wok to be used.
-
Page 16: Lighting Instructions
LIGHTING INSTRUCTIONS ALWAYS OPEN THE FLAT LID OR ROASTING HOOD BEFORE LIGHTING. 1. Turn on the gas supply. 2. Depress and turn the control knob to high. 3. Push the igniter button 1 to 3 times. 4. If the burner fails to light, turn the control knob off and repeat the procedure. 5. - Page 17 Remove the control valve knob and oil the valve shaft every 2 months. Do not attempt to dismantle the gas control valve or the regulator. FOR SERVICE OR REPLACEMENT PARTS, CONTACT THE NEAREST DEALER OR TUCKER AUSTRALIA PTY. LTD. - 17 -...
-
Page 18: Warranty Period
All other parts 1 year Should any part fail due to defective workmanship or faulty materials within the specified period from the date of purchase, TUCKER distributors will repair or, (distributors option), replace the defective part free of charge. NOT COVERED ... -
Page 19: For Your Records
CONDITIONS OF THIS WARRANTY 1. The appliance is delivered to TUCKER AUSTRALIA distributer’s service department or authorised service agent and freight charges both ways are to be paid by the owner. No liability is accepted for loss or damage transit. - Page 20 PHONE (+612) 99991891 FAX (+612) 99795689 WEB SITE www.tuckerbbq.com.au EMAIL mail@tuckerbbq.com...
