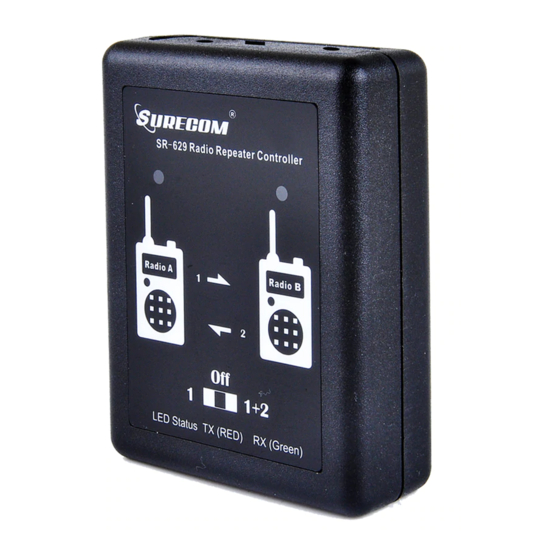

Surecom SR-629 User Manual

SR-629
Duplex
2 in 1 Repeater Controller
MODEL NO. SR-629 V1.03
How to Connect Radio :
A Connect to Radio 1 (Cable optional)
B Connect to Radio 2 (Cable optional)
USB connect to Charger cable
Battery charger :
Connect the charger to SR-629 USB,the red light bright
when start charging ,and green light bright when battery
it is fully.
Turn on / off / mode select
Power off when mode switch is center.
Mode 1 and Power ON when mode switch is left.
Mode 2 and Power ON when mode switch is right
MODE 1
Radio A is received , control Radio B is TX
MODE 2
Radio A is received , control to Radio B is TX
Radio B is received , control to Radio A is TX
Features:
Repeater controller for 2 of radio
Build in Battery ,work up to 48hours
2 mode of Duplex Mode Cross Band Mode
Specifications:
Model: SR-629
Audio : Analog
Build-in Battery : Li-ion 3.7V 600MAH
Power in: 5V (micro usb)
PLUG in: 3.5mm x17mm 4 pole
LED: 2 for A/B CH
Size : 70*90*28 mm
Net Weight : 68g
Battery Life : 24-48 Hours
Package
1x SR-629
1x English Instructions
1x USB Charger Cable
1x USB Power Supply
PROBLEM SOLUTION
NO SYSTEM
Confirm Power Switch turn lfet and right for Power ON
TX and RX ERROR Radio Get More Noise
Please set CTCSS or CTCSS for repeater Operation
Please change radio frequency
Insuffcient Charge Battery Charger or Battery defective,you need to be replaced
Repeater controller Radio Problem and Radio speaker volume level too low
No Reaction
Customers
Please contact : www.surecom.com.hk
Service
