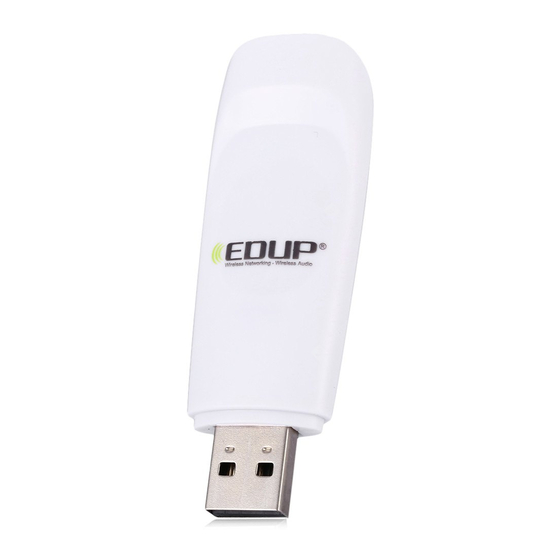

- Page 1 USER MANUAL Model: EP-DB1305 Brand: EDUP...
- Page 2 EDUP USB Wireless Adapter Quick Installation Guide Note：This Manual based on WindowsXP & Windows7 1.WindowsXP 01. Once the wireless USB adapter be plugged into an USB port, the following message will appear on screen. Click “Cancel”, As the following picture shows.(If it do not pop-up,Skip this step) 02.
- Page 3 04. Do not interrupt installation , Click “finish” to finish the driver installation.The computer automatically restart.
- Page 5 Wireless Connection （two ways to realize） Wireless Connetion 1: 05. Click Icon in the Windows system tray, which locates in the bottom-right corner of your computer screen or double click , and pops up a message and click”Available Network” Double-click the utility icon or right click the icon and then select “View Available Wireless Networks”...
- Page 6 If the network security key hasn’t been inputted before, enter the network’s security key to access the wanted SSID. Type the encryption key that you wrote down earlier in both the Network key and Confirm network key boxes, and then click “ok”.
- Page 7 Wireless Connection 2 06. Click Icon in the Windows system tray, which locates in the bottom-right corner of your pops up a message and click” computer screen or double click Windows Zero Config”(Figure1),pay attention to the change of figure2.Click “Ok” on the pop up page as figure3...
- Page 8 07. Double Click Icon and then select the your preferred network, and then Double click, enter the network’s security key to access the wanted SSID. Type the encryption key and then click “Connect”.Or choose your wifireless signal and click connect as figure1,and enter the password and then click”connect as figure Now the Internet now is available.
- Page 9 2.Windows7 Please do as the following steps to setup:...
- Page 10 01. Once the wireless USB adapter be plugged into an USB port (If do not have CD-ROM.please download on www.szedup.com), put in the CD and find windows file and Setup.exe. 02. Double click Setup.exe file, Software begin to initialization,then click the “next”.There shows the installation progress.
- Page 11 03. Do not interrupt installation, Click “finish” to finish the driver installation.The computer automatically restart.
- Page 12 Wireless connection (two ways to realize Wireless connection 1： 04. Click Icon in the Windows system tray, which locates in the bottom-right corner of your computer screen or double click , and pops up a message and click”Available Network” Double-click the utility icon or right click the icon ,and the Wireless Network Connection window appears then double click the SSID you preferred.
- Page 13 Type the encryption key that you wrote down earlier in both the Network key and Confirm network key boxes, and then click “ok”.
- Page 15 Note:if there is no icon , please find it in the on right buttom,it have been hide as following pictures shows: Wireless Connection2. 05. Click Icon which locates in the bottom-right corner of your computer screen,click the wireless network list and choose the SSID you preferred. and double click(Or click “Connect”).无...
- Page 16 Type the encryption key and then click “ok”.
- Page 17 FCC Caution. 1.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Page 18 3. 5150-5250MHz can only be used indoor. Input: DC 5V 500mA Shenzhen EDUP Electronics Technology Co.,Ltd. hereby declares that this EDUP USB Wireless Adapter is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.a copy of the original declaration of conformity may be found or obtained at...
