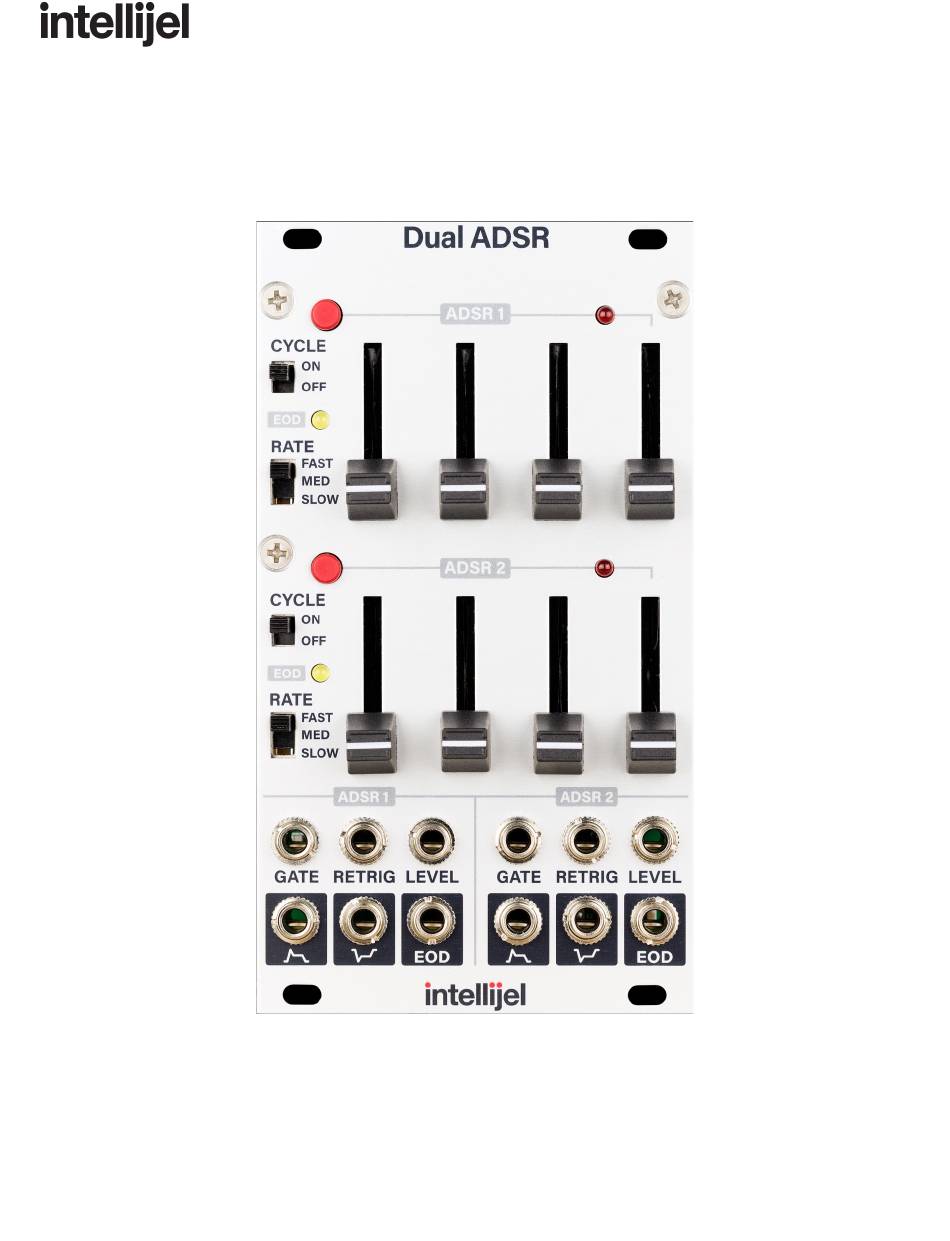

- Page 1 Dual ADSR Manual Dual ADSR Dual Slider-Based ADSR Envelope Generator Manual Revision: 2018.09.13 ...
-
Page 2: Table Of Contents
Dual ADSR Manual Table of Contents Table of Contents Compliance Installation Installing Your Module Overview Front Panel Controls Inputs & Outputs Envelope Times Technical Specifications Page 1 ... -
Page 3: Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a ... -
Page 4: Installation
Installation Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, you must ensure your power supply has a free ... - Page 5 Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe: ...
-
Page 6: Overview

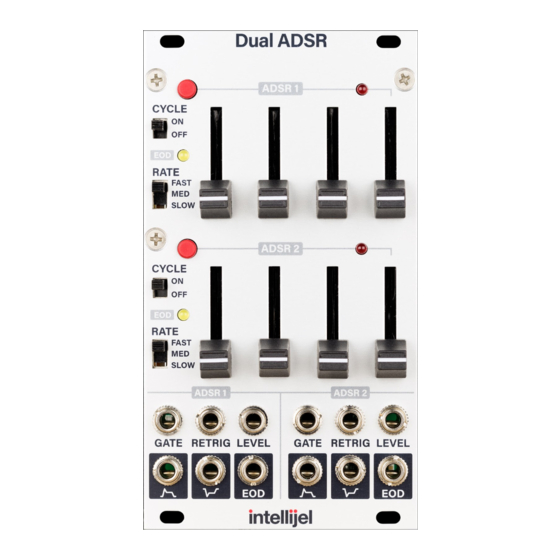

Overview The Dual ADSR contains two ADSR (Attack Decay Sustain Release) envelope generators modelled after those found on many classic synthesizers. The envelope gates are normalled so they can be triggered from the same gate source or independently. The cycle switches allow the ... -
Page 7: Inputs & Outputs
Dual ADSR Manual 4. RATE SWITCH The rate switch selects between three different ranges for the attack, decay, and release times. In FAST mode the maximum time for each stage is approximately 1 second. It is ... -
Page 8: Envelope Times
Dual ADSR Manual C. LEVEL This input expects a 0 to 5 V signal and controls the overall level of the envelope via a built-in linear VCA. It is normalled to a 5 V source so when nothing is connected the ...
