Korenix JetI/O 6500 Installation Manuals

Introduction
JetI/O 6500 is a series of Managed Ethernet I/O modules for distributive monitoring and
controls. The JeI/O 6500 series is equipped with one Ethernet port and multiple channels
Analog Input/Output, Digital Input/Output and temperature measurement connectors. Thus,
users can easily perform I/O data collecting, status changing, automatically activate events...
through the Ethernet network. JetI/O 6500 series provides Windows Utilities, Web and SNMP
for configuration as well as supports Modbus/TCP protocol, OPC Server for Modbus/TCP.
Hence users can easily monitor and control the remote I/O devices and combine the JetI/O
with existed HMI/SCADA package.
Hardware Installation

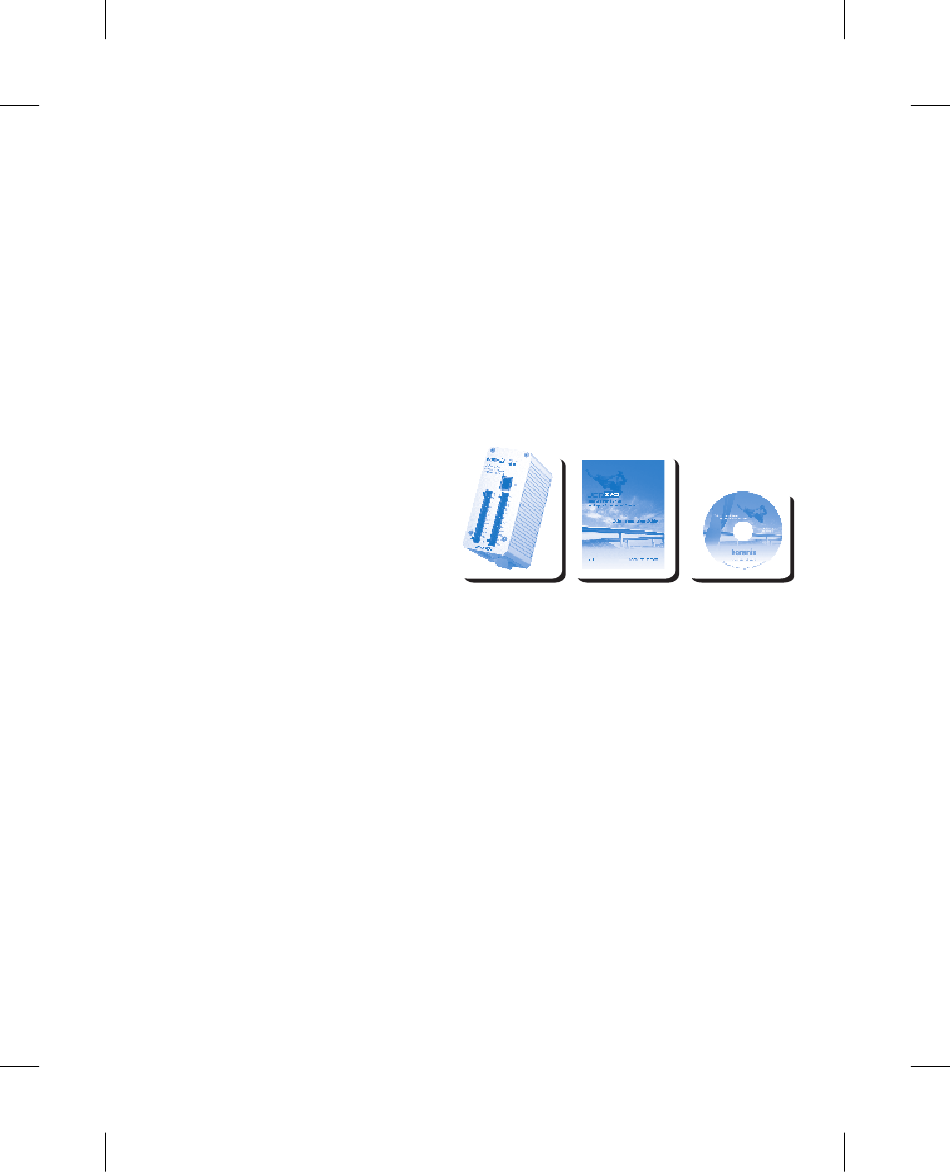

1. The Package Contains
�
JetI/O unit with attached mounting clip
�
Terminal Blocks for I/O and Power
�
Quick Installation Guide and Software
CD-ROM
2. Hardware Installation
�
Din-Rail Mounting: Insert the upper end of the DIN-Rail clip into the back of the DIN-Rail
track from its upper side. Push the bottom of the DIN-Rail clip into the track lightly. Check if
the DIN-Rail clip is tightly attached to the track.
�
Wiring the I/O pins: Follow the pin assignment to insert the wires into the front contacts on
the terminal block connector. Tighten the wire-clamp screws to prevent the I/O wires from
being loosened.
�
Power the unit: Tighten the power wire and connect to the power source, then the unit will
be powered on. When the unit is ready, the PWR LED turns Greed, the RDY LED turns Red.
Note: The suitable working voltage is 24VDC.
�
Connecting the Ethernet Port: Connect one side of an Ethernet cable into the LAN
interface of the JetI/O while the other side is connected to the attached device. The LED will
light up when the cable is correctly connected.
