Series S1501 Selectronic
®
Micro-Controller/Annunciator
Model Year 2011 and Earlier
Installation and Operations Manual
00-02-0271
2018-10-23
Section 50

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Selectronic S1501 series and is the answer not in the manual?

Questions and answers

Summary of Contents for FW Murphy Selectronic S1501 series

  • Page 1 Series S1501 Selectronic ® Micro-Controller/Annunciator Model Year 2011 and Earlier Installation and Operations Manual 00-02-0271 2018-10-23 Section 50...
  • Page 2  Disconnect all electrical power to the machine.  Make sure the machine cannot operate during installation.  Follow all safety warnings of the machine manufacturer.  Please contact FW MURPHY immediately if you have any questions.

  • Page 3: Table Of Contents

    Table of Contents Product Description ........................1 Installation ........................... 4 Mounting Dimensions ....................4 Typical Hazardous Areas Installation ................6 S1501 System - Typical Hook Up ................7 Power Supply – Typical Wiring Diagram ..............11 Operation ...........................12 Operating the S1501 Interface ................... 12 Sequence of Operations - Engine Mode ..............
  • Page 4 (THIS PAGE INTENTIONALLY LEFT BLANK)

  • Page 5: Product Description

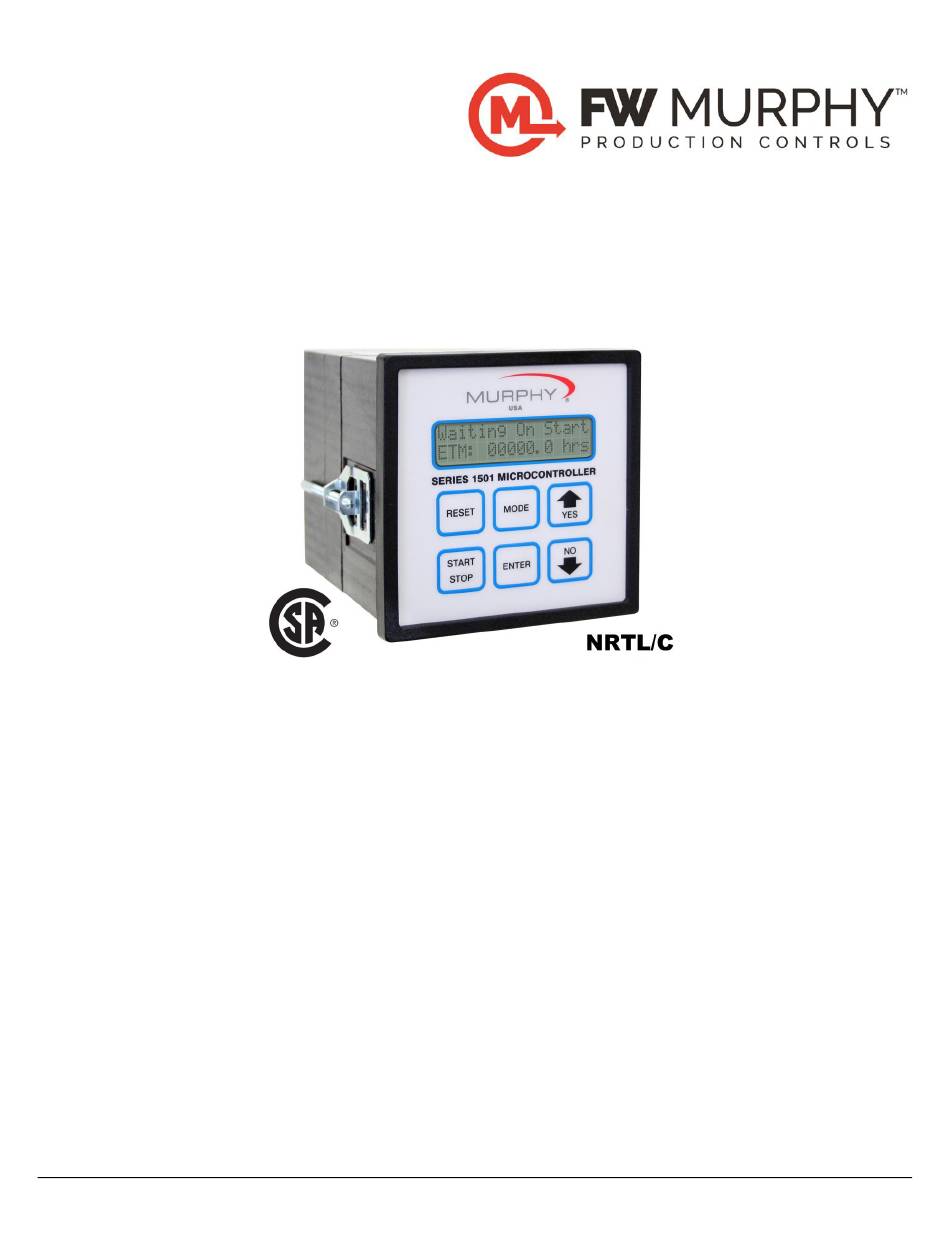

    Product Description The Series S1501 system is a microprocessor based alarm, shutdown, and control system with tachometer/hourmeter function. It tells in alphanumeric characters which protective device has signaled an alarm or caused equipment shutdown. Application programming is completed at Murphy and can be changed in the field. The system consists of: ...
  • Page 6 Control Relays The power supply has seven control relays to provide form “C” SPDT outputs for control functions of either the engine or electric motor application. Terminal Block Assembly Each sensor input terminal block consists of a 64-position, 32 pair input rail-mount terminal block for interface of panel or field-mounted end devices.
  • Page 7 Opto-Isolated Tach/Run Input The S1501 features an opto-isolated tach/run input located within the explosion-proof power supply. This special input is used for Run Input Sensing from a CD ignition, Magnetic Pickup, Motor Auxiliary Signal, or AC or DC run signals meeting the opto-isolated Tach/Run input specifications (refer to the Specifications section of this manual).

  • Page 8: Installation

    Installation Perform the mounting operation with power source off. WARNING: The S1501 Head was designed to be mounted within a weatherproof enclosure. It is intended for mounting in a flat panel. First, cut a square mounting hole of 3-5/8 in. (92 mm) x 3-5/8 in. (92 mm). Insert the Head from the front side of the panel and install the two mounting clamps, one on each side of the case, (see mounting clamp detail).
  • Page 9 Section 50 00-02-0271 2018-10-23 - 5 -...

  • Page 10: Typical Hazardous Areas Installation

    Typical Hazardous Areas Installation WARNING: FOR HAZARDOUS APPLICATION REQUIREMENTS, THE S1501 COMPLETE SYSTEM MUST BE INSTALLED IN ACCORDANCE WITH THE NATIONAL ELECTRICAL CODE (NEC) CLASS I, DIVISION 1, GROUP D (ARTICLE 504) SPECIFICATIONS. SENSOR INPUT WIRES MUST BE SEPARATED A MINIMUM OF 2 IN. (51 MM) FROM OTHER WIRES.

  • Page 11: S1501 System - Typical Hook Up

    S1501 System - Typical Hook Up PERFORM THE WIRING OPERATION WITH THE POWER WARNING: SOURCE “OFF” AND THE AREA MADE NON-HAZARDOUS. MAKE SURE THE VOLTAGE AND CURRENT REQUIREMENTS ARE WITHIN THE S1501 SYSTEM RATINGS. CONDUIT IS REQUIRED TO PROTECT WIRES FROM DAMAGE. REFER TO THE SPECIFIC SYSTEM APPLICATION WIRING DIAGRAM SUPPLIED WITH YOUR UNIT.
  • Page 12 Typical Power Supply Connections WARNING: Do NOT route the power supply wiring and the sensor input lead wiring in the same conduit. Conduit installation 1) Remove power before opening power supply cover. 2) Install one 1/2 in. NPT or two 3/4 in. NPT conduits, from customer end of the Power Supply.
  • Page 13 Normally Open Sensor Input Wiring Wire each normally open sensor on top of the factory-supplied jumper. Loosen the screw and slide the wire lead into the terminal without removing the jumper (either side of jumper). Normally Closed Sensor Input Wiring Remove the factory-supplied jumper completely.
  • Page 14 Normally Open System Barrier LCDT-ISB barrier (optional) Normally Closed System Barrier For normally closed non-intrinsically safe sensors, use an approved intrinsically safe barrier, and wire according to manufacturer’s instructions. Section 50 00-02-0271 2018-10-23 - 10 -...

  • Page 15: Power Supply - Typical Wiring Diagram

    Power Supply – Typical Wiring Diagram Perform the wiring operation with the power source WARNING: “OFF” and the area made non-hazardous. Make sure the voltage and current requirements are within the S1501 system ratings. Conduit is required to protect wires from damage. Refer to the specific system application wiring diagram supplied with your unit.

  • Page 16: Operation

    Operation Operating the S1501 Interface Use the six membrane keys to scroll throughout the menus and to make changes to the System timers, Tachometer calibration, Overspeed, Underspeed, Run Hourmeter (ETM), and Sensor Setup.. YES - key used for scrolling up (increment). NO - key used for scrolling down (decrement).

  • Page 17: Sequence Of Operations - Engine Mode

    Sequence of Operations - Engine Mode ENGINE APPLICATION EVENT DISPLAY RELAY Alar Lube Crank Ign. Fuel Load WAITING ON START Unit monitors for a valid start signal. Shutdown and Alarm relays are energized. * User can at this time, Waiting On Start press the Mode key to modify desired setup tables.
  • Page 18 Lube Crank Ign. Fuel Load RUN CYCLE Crank Disconnect RPM reached. Crank relay de- Speed: xxxxrpm energized. Class B1 Lockout, B2 Lockout and Load Class-B1 x:xx timers started. Class C shutdowns are allowed to arm. Speed: xxxxrpm Class B1 and B2 Lockout timers expire. Elapsed time displayed.

  • Page 19: Sequence Of Operations - Motor Mode

    Sequence of Operations – Motor Mode ELECTRIC MOTOR APPLICATION EVENT DISPLAY RELAY Lube Used Motor Load Alarm Cooler WAITING ON START Unit monitors for a valid start signal. Shutdown and Alarm relays are energized. * User can at this time, Waiting On Start press the Mode key to modify desired setup tables.
  • Page 20 Lube Used Motor Load Alarm Cooler FAULT SHUTDOWN Unit receives a fault at sensor #4 for instance. Motor, Cooler, Load, Alarm and Shutdown relays are de- LUBE CYCLE... energized. Postlube cycle begins. Lube Relay Postlube x:xx energized. Postlube expires. Lube relay de-energized. Fault is Low Compressor displayed.

  • Page 21: System Set Up Menus

    System Set Up Menus While the S1501 displays “Waiting On Start”, pressing the MODE key will access the SYSTEM SET UP menu. The following options are available:  Timer Set Up  Tach/Crank Set Up  ETM Set Up  Sensor Set Up Timer Set Up - This set up screen allows you to preset the system timers.

  • Page 22: Editing System Set Up

    Editing System Set Up Timer Set Up Menu There are a number of Timers that the S1501 system uses to carry out the start/stop sequencing. With all shutdowns cleared, and the S1501 at the “Waiting On Start” prompt, press the ■ MODE key to gain access to the Timer Setup Menu. TIMER SETUP Permissive x:xx...
  • Page 23 In Electric Motor applications (Pulses/rev = 0), this is the timer to gain the Motor Starter Auxiliary Run signal, after energizing the motor relay. If this signal is not seen before this timer expires, a “Motor Starter Failure” shutdown will occur. In Engine applications (Pulses/rev >...
  • Page 24 Advanced Set Up Menu To calibrate the Tachometer and Elapsed Time Meter, select Crank attempts, Modbus RTU address, and modify sensor input information, a password protected setup mode is available. After the Timer Setup is complete, the LCD will read... ADVANCED SETUP Password XXXX...
  • Page 25 Overspeed xxxx Engine sequence only-This is the excessive speed RPM at which the S1501 signals an internal Overspeed Shutdown. Underspeed xxxx Engine sequence only-This is the low speed RPM at which the S1501 signals an internal Underspeed Shutdown. This is not armed until the Class B1 timer expires. ETM 1k Hr Preset the Elapsed Time Hours thousands hours or use the RESET button to zero it.
  • Page 26 Sensor Set Up The S1501 system allows you to edit the Shutdown Message, Class Type and Shutdown Action (Shutdown Alarm or Alarm only) for each Sensor Input. Class Type are defined as follows: Class A, Shutdown Class B1, Shutdown Class B2, Shutdown Class C, Shutdown Class P, Shutdown ESD Shutdown...
  • Page 27 NOTE: A valid stop occurs when the ■ START/STOP key is pressed Regardless of the Start-Stop mode. Local-Off-Remote (L-O-R) Switch L-O-R switch installed across TB30 (Local) and TB31 (Remote). A valid sequence occurs when the L-O-R switch is placed in the Local position and the Start-Stop key is pressed OR the L-O-R is placed in the Remote position, and the Remote Start signal is seen.
  • Page 28 Modbus Integer Holding Registers Address Access Description 40001 Read ETM (Elapsed Run Time Meter) Hundred Hours ( 0 – 999) 40002 Read 40003 Read Class B1 Timer Accumulator Seconds 40004 Read/ Shutdown Status Enumeration/Remote Modbus Reset (0=OK, or terminal block number of Write Shutdown event...writable to 0 for Modbus Reset) System Internal shutdowns:...

  • Page 29: Troubleshooting

    Troubleshooting Do NOT open power supply until operations have been WARNING: shut down and area has been rendered non-hazardous. Do NOT run sensor wires in conduit with any other wire. Do NOT apply voltage to any annunciator input terminals. Do NOT bundle sensor wires with any other wiring.
  • Page 30  Check sensor wires with an ohmmeter and meg or high potential test only with wires disconnected from sensor terminal block. NOTE: If shutdowns still result, contact your nearest Murphy representative/dealer. Section 50 00-02-0271 2018-10-23 - 26 -...

  • Page 31: Specifications

    Specifications Power Consumption Sensor Inputs Terminal Block  120 VAC (7.5 VA) Rail mount DIN type; 32 terminals, screw type  12 VDC (3.5 watts)  Opto-Isolated Tach/Run Input 24 VDC (3.5 watts) Sensor Inputs Magnetic pickup, 4.5 to 120 Vrms, 0-10 kHz. CD ignition, positive or negative ground, 100 to 300 VDC, 3-666 Hz.

  • Page 32: Replacement Parts And Accessories

    Replacement Parts and Accessories To order the S1501 system specify the model number for each individual component and accessory: S1501H-32-2 Head with RS232/RS485 port for 32 sensors S1501H-64-2 Head with RS232/RS485 port for 64 sensors S1501CH-32-2 Head w/custom* program, RS232/RS485 port, 32 sensors S1501CH-64-2 Head w/custom* program, RS232/RS485 port, 64 sensors S1500TB32...
  • Page 33 Section 50 00-02-0271 2018-10-23 - 29 -...
