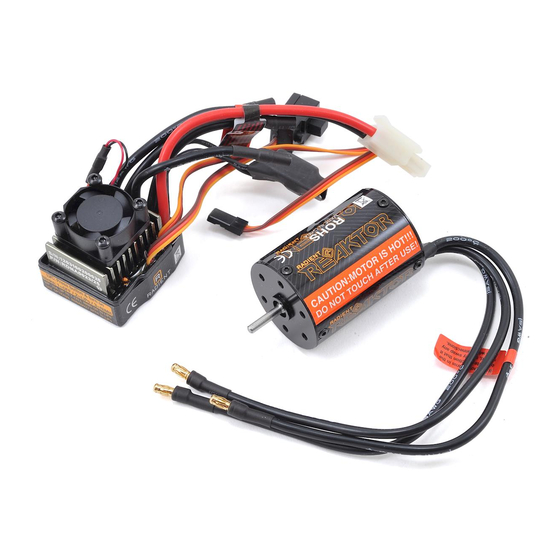

Summary of Contents for Radient RC Reaktor

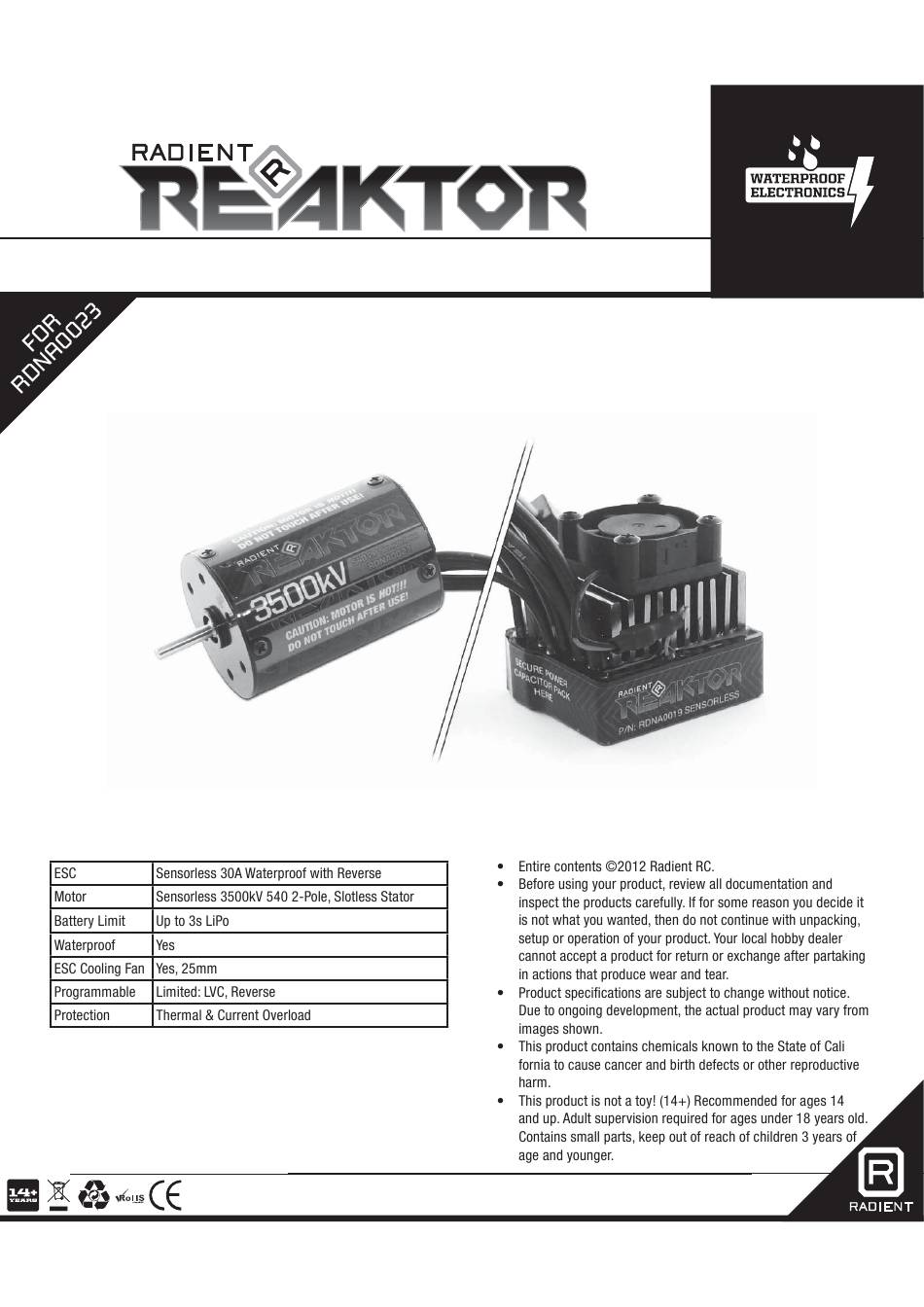

- Page 1 BRUSHLESS POWER SYSTEM OWNER’S MANUAL WWW.RADIENTRC.COM...
- Page 2 RELATED COMPONENTS COMPATIBLE BATTERY TYPES FOR USE WITH YOUR BRUSHLESS POWER SYSTEM › › › › UN BOXING INTRODUCING THE REAKTOR BRUSHLESS ESC AND MOTOR PLUG FOR POWER COOLING FAN CAPACITOR GOLD BULLET CONNECTORS INDICATOR MOTOR RECEIVER SETUP BUTTON TO BATTERY...
- Page 3 FEATURES AND FUNCTIONS GETTING STARTED › REAKTOR: POWERED BY RADIENT RC!
- Page 4 WARNING: Always ensure the connector polarity is correct ( [+] to [+] and [-] to [-] ) before connecting the battery to the ESC. The Reaktor ESC uses a RED wire for [+] and a BLACK wire for [-]. If you connect a battery to the ESC with reverse polarity, the ESC WILL be damaged and this will not be covered under warranty.
- Page 5 INSTALLING AND WIRING YOUR ESC AND MOTOR Installation: WARNING: The ideal running temperature of the Reaktor motor is less than 175 degrees Fahrenheit. The motor temperature should never exceed 200 degrees Fahrenheit. If it does, stop running immediately. To test for tempera- tures this high it is not recommended to use your hands as it is inaccurate and you can get burned.
- Page 6 ...ESC CALIBRATION AND SETTINGS CONTINUED Using The Running Modes (including Low Voltage Cut-Off [LVC]): When running a LiPo battery it is required to change the included battery connector to a high current connector. We recommend W.S. Deans Ultra-Plugs (WSD1300) available at your local hobby dealer. Using the supplied connector with LiPo batteries will cause the connector to over-heat and possibly melt which could lead to the battery experiencing a dead-short and causing fire.
- Page 7 ...PROTECTION MODES AND ERROR CODES CONTINUED Thermal Overload Protection: Current Overload Protection: NOTE: For best results, always pair your Reaktor ESC with a Reaktor motor, compatibility with other brands is not guaranteed. Blinking Error Codes: GENERAL CARE AND MAINTENANCE Care: ›...
-
Page 8: Troubleshooting Guide
BRUSHLESS POWER SYSTEM TROUBLESHOOTING GUIDE Problem / Symptom Possible Cause Possible Solution WWW.RADIENTRC.COM...
