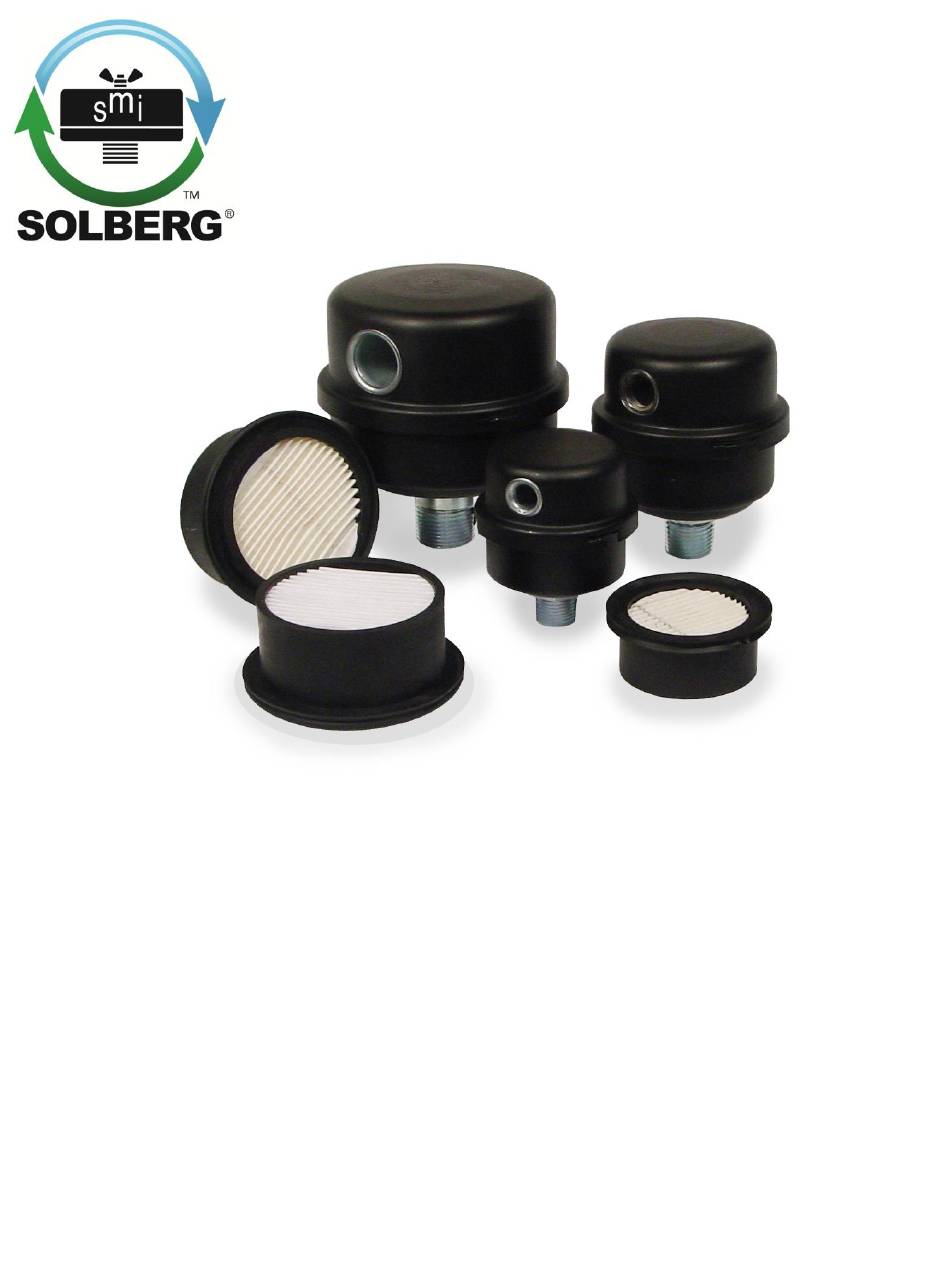

Miniature Filter Silencers
FS Series ¼" – 1" MPT
www.solbergmfg.com
Note: Please read the maintenance instructions given by the OEM for the machinery first. The OEM's manual should be
adhered to in order to protect the equipment. Solberg Manufacturing, Inc has made every effort to make sure that these
instructions are accurate but is not responsible for any typos, slight variations or for human errors that may occur.
Solberg Manufacturing, Inc., 1151 Ardmore Itasca, IL 60143 USA
Ph: 630.773.1363 Fax: 630.773.0727 Email: sales@solbergmfg.com Web: www.solbergmfg.com
Advertisement
Table of Contents
Summary of Contents for solberg FS-05-025
- Page 1 Note: Please read the maintenance instructions given by the OEM for the machinery first. The OEM's manual should be adhered to in order to protect the equipment. Solberg Manufacturing, Inc has made every effort to make sure that these instructions are accurate but is not responsible for any typos, slight variations or for human errors that may occur.
-
Page 2: Table Of Contents
Section D Maintenance Recommendations 1. General ................pg. 11 2. Replacement Parts List ............. pg. 12 *For Further Information Please Call: 630-773-1363 Page 2 Solberg Manufacturing, Inc., 1151 Ardmore Itasca, IL 60143 USA Ph: 630.773.1363 Fax: 630.773.0727 Email: sales@solbergmfg.com Web: www.solbergmfg.com... -
Page 3: Section A
This manual should be readily available to all operators responsible for operation and maintenance of the inlet air filters. We thank you for selecting products from Solberg Manufacturing, Inc. We are confident that our superior filter designs will meet your application requirements. -
Page 4: Filtration Rules Of Thumb
Therefore, the primary goal in filter sizing is to optimize the velocity of air through the media (sometimes called face velocity). Page 4 Solberg Manufacturing, Inc., 1151 Ardmore Itasca, IL 60143 USA Ph: 630.773.1363 Fax: 630.773.0727 Email: sales@solbergmfg.com Web: www.solbergmfg.com... - Page 5 10 CFM (17m Applications) Efficiency Severe Duty (workshop, 7 CFM (12m factory-like) Extreme Duty (Foundry, 5 CFM (8.5m Construction-like) Table 2 Page 5 Solberg Manufacturing, Inc., 1151 Ardmore Itasca, IL 60143 USA Ph: 630.773.1363 Fax: 630.773.0727 Email: sales@solbergmfg.com Web: www.solbergmfg.com...
-
Page 6: Element Specifications
“AC” & “ACP” Series Table 4 4. Element Cleaning - Inlet Filtration Solberg elements should be cleaned or replaced, once the pressure drop reaches 15 to 20-inches water column (380 - 500mm WC) above the initial pressure drop of the installation. -
Page 7: Element Cleaning
Also, spare parts such as gaskets, wing nuts and washers can be supplied upon request. Page 7 Solberg Manufacturing, Inc., 1151 Ardmore Itasca, IL 60143 USA Ph: 630.773.1363 Fax: 630.773.0727 Email: sales@solbergmfg.com Web: www.solbergmfg.com... -
Page 8: Section C
PROCEDURES 1. Installation. Figure C.1: Housing Terms A. Maximum operating temperature for most Solberg inlet air filter products is 220°F / 105°C. Temperatures in excess of this could cause damage to elements, media and elastomers. High temperature products are available. -
Page 9: Removing Element For Service/Maintenance
Solberg replacement parts. 5. Securing canister top to canister base. A. Make sure all surfaces are free from dust and other particulate. Page 9 Solberg Manufacturing, Inc., 1151 Ardmore Itasca, IL 60143 USA Ph: 630.773.1363 Fax: 630.773.0727 Email: sales@solbergmfg.com Web: www.solbergmfg.com... -
Page 10: Equipment Startup
2. Check housing to make sure the housing top is properly secured to base. See procedure 5 and Figure C.5.1 for details. Page 10 Solberg Manufacturing, Inc., 1151 Ardmore Itasca, IL 60143 USA Ph: 630.773.1363 Fax: 630.773.0727 Email: sales@solbergmfg.com Web: www.solbergmfg.com... -
Page 11: Section D
*WARNING* If the air flow is reversed through a Solberg filter unit, be sure to check the element and housing internals for damage. Failure to do so may result in damage to equipment. Section D MAINTENANCE RECOMMENDATIONS 1. Pressure drop readings are recommended to have an effective air filter. -
Page 12: Replacement Parts List
1.) Element Miniature Filter Silencer Available Replacement Parts Page 12 Solberg Manufacturing, Inc., 1151 Ardmore Itasca, IL 60143 USA Ph: 630.773.1363 Fax: 630.773.0727 Email: sales@solbergmfg.com Web: www.solbergmfg.com... - Page 13 Polyester FS-06-050 Paper FS-07-050 Polyester FS-10-050 Paper FS-11-050 Polyester FS-06-075 Paper FS-07-075 Polyester FS-10-075 Paper FS-11-075 Polyester FS-10-100 Paper FS-11-100 Polyester Page 13 Solberg Manufacturing, Inc., 1151 Ardmore Itasca, IL 60143 USA Ph: 630.773.1363 Fax: 630.773.0727 Email: sales@solbergmfg.com Web: www.solbergmfg.com...
