ISWG1061 Rev A
DUAL SUCTION OUTLETS
Contents
Product Specific Warnings.........2
Recommended system
specifications..............................5
Installation..................................6
Replacement Parts.....................6
Owner's Manual

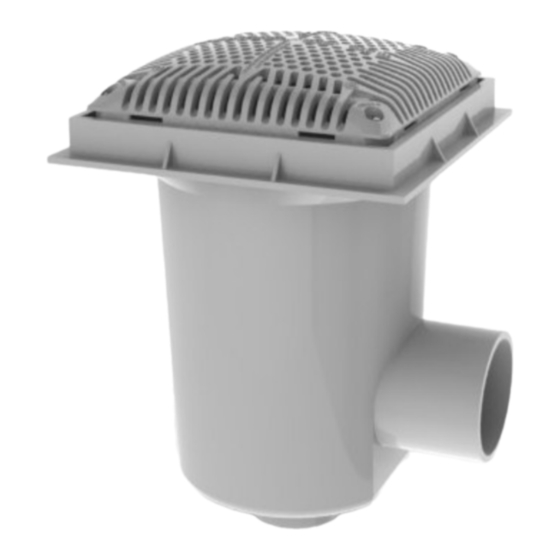

Model No.: WG1061HF2PAK2 and WG1061LV2PAK2
Hayward Pool Products
620 Division Street, Elizabeth, NJ 07207
Phone: (908) 351.5400
www.hayward.com
1
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Advertisement
Related Manuals for Hayward WG1061HF2PAK2
Summary of Contents for Hayward WG1061HF2PAK2
- Page 1 ISWG1061 Rev A DUAL SUCTION OUTLETS Contents Product Specific Warnings………2 Recommended system specifications……….…………..……5 Installation……….……………..….…6 Replacement Parts………..…….…6 Owner’s Manual Model No.: WG1061HF2PAK2 and WG1061LV2PAK2 Hayward Pool Products 620 Division Street, Elizabeth, NJ 07207 Phone: (908) 351.5400 www.hayward.com USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
-
Page 2: Important Safety Instructions
Closely supervise children at all times. Components such as the filtration system, pumps, and heaters must be positioned to prevent children from using them as a means of access to the pool. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... - Page 3 Do not use with storable pools. A permanently-installed pool is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage. A storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
- Page 4 Unawareness of impending danger. Failure to perceive heat. Failure to recognize the need to leave the spa. Physical inability to exit the spa. Fetal damage in pregnant women. Unconsciousness resulting in danger of drowning. SAVE THESE INSTRUCTIONS USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
-
Page 5: Recommended System Specifications
Example: In the System shown in Diagram 1, two (2) 9” Square (WG1061HF2PAK2) suction outlet covers are selected and mounted on the floor. These covers are individually rated for 224 GPM. For a desired flow of 130 GPM, a minimum pipe size from Chart 1 is selected at 3”. -
Page 6: Installation Instructions
2. When properly installed the sump lip will be about 3/16” below the finished surface of the pool. The finished surface of the pool should be flush to the top of the mud shield (See illustration below). FINISHED POOL SURFACE MUD SHIELD INNER FRAME ~3/16” SUMP POOL WALL USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... - Page 7 To reduce the risk of body entrapment, installation of the field fabricated sumps must be such that the top of the mounted cover is a minimum of 1 13/16” above the finished pool surface over an area larger than 40” on a diagonal. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
-
Page 8: Product Registration
The express limited warranty above constitutes the entire warranty of Hayward Pool Products with respect to its’ pool products and is in lieu of all other warranties expressed or implied, including warranties of merchantability or fitness for a particular purpose. In no event shall Hayward Pool products be responsible for any consequential, special or incidental damages of any nature.
