Danfoss VLT Weather Shield Assembly Instruction

Assembly Instruction for VLT® Weather Shield - Outdoor Drives Option
The weather shield is intended to provide additional protection of outdoor rated drives, when there is a risk of snow
collecting on the top of the drive or excessive rain, which could sub-cool the drive, leading to internal
condensation. The weather shield is made of corrosion resistant stainless steel AISI316 and is also suitable for instal-
lation in coastal areas and marine environments.
The weather shield is also to be used if there is a risk of direct sunlight on the display, since heat generated by the
sun radiation might damage the LCD as well as limit the maximum ambient temperature.

NOTE:

The weather shield should only be used together with outdoor rated drives and will not provide sufficient
protection for outdoor installation of drives not designed for this purpose.

Weather shield selection:

Frame Size Ordering Number
A4, A5, B1, B2 130B4598
C1, C2 130B4597

Assembly procedure

1. Drill holes according to the measurements of the frequency converter.
2. Mount the frequency converter.
NOTE
Allow a space of 10 mm between the unit and the wall for insertion of the bracket

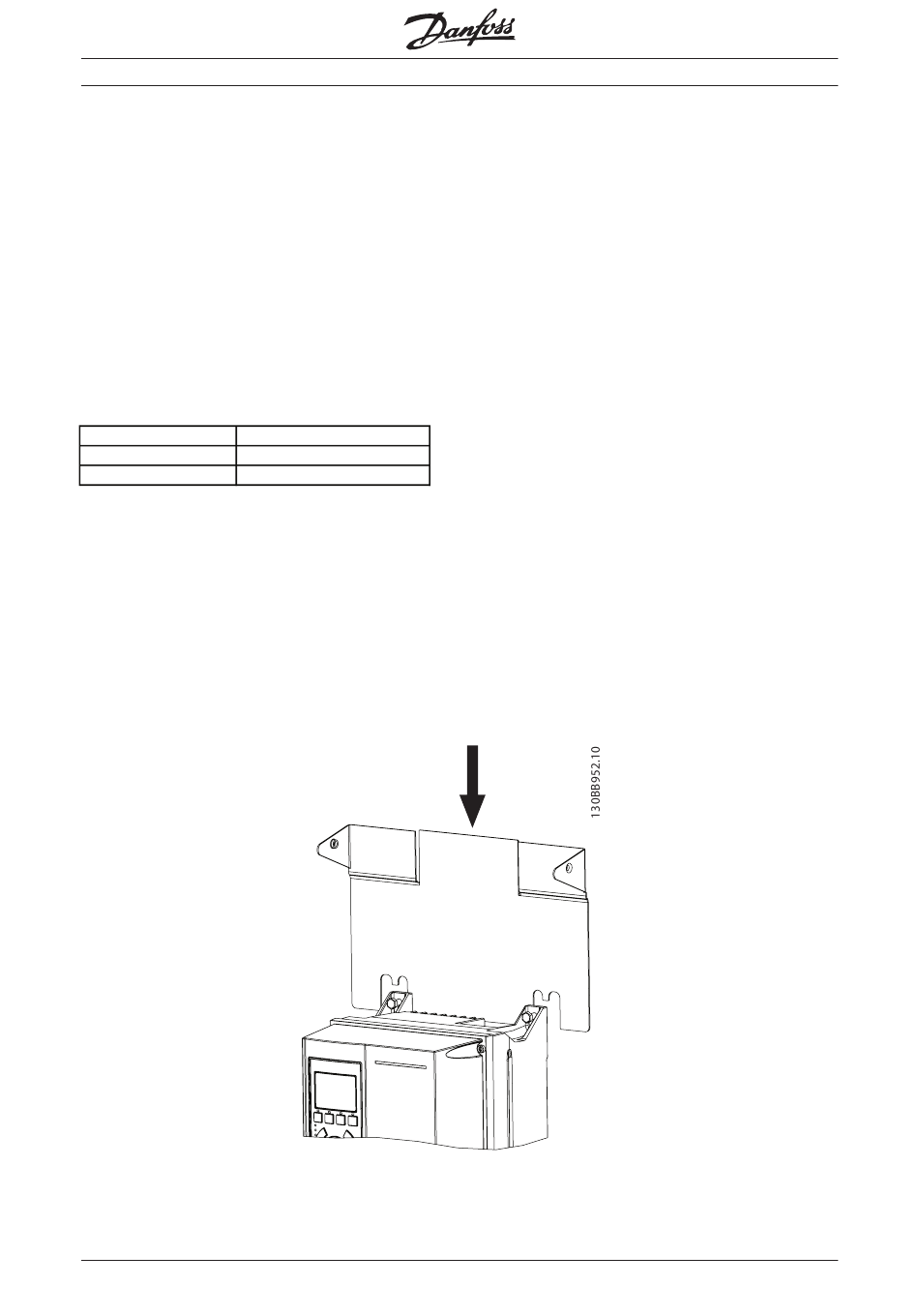

3. Slide the bracket between the wall and the frequency converter and tighten the screws.
MI.33.W1.02 - VLT ® is a registered Danfoss trademark
®
VLT HVAC Drive, VLT
® ®
AQUA Drive, VLT AutomationDrive
1
