Summary of Contents for AKO AKO-575022

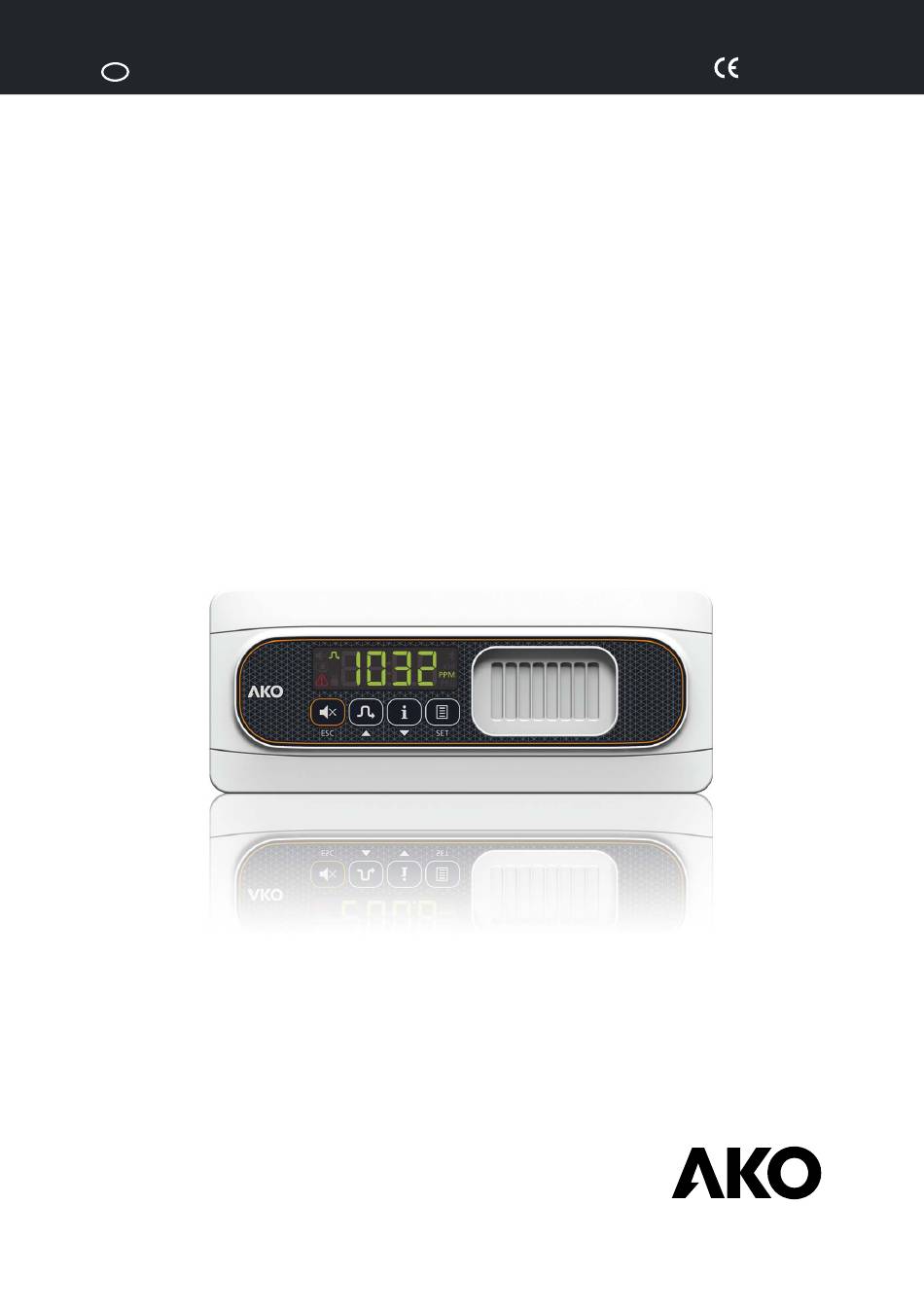

- Page 1 5750H002 Ed.03 AKO-575xxx Gas transmitter User manual...
-
Page 2: Table Of Contents
Only qualified personnel should install or perform technical assistance on this product. This product is designed to be used in the applications described in the product manual. AKO Electromecánica gives no guarantee of its operation in any use not foreseen in the manual, and is not responsible for any damage resulting from improper use, configuration, installation or commissioning. -
Page 3: Versions And References
5750H002 Ed.03 1.- Versions and references MODEL DESCRIPTION POWER SUPPLY AKO-575022 R-22 gas transmitter AKO-575134A R-134a gas transmitter AKO-575404A R-404A gas transmitter AKO-575410A R-410A gas transmitter 12-30 Vdc AKO-575507A R-507A gas transmitter Universal gas transmitter for R-134a / R-404A / R-407A / R-410A /... -
Page 4: Equipment Description
5750H002 Ed.03 3.- Equipment description Display Gas sensor Keypad Indicators Gas alarm on mute Bluetooth activated (CAMM module only) Fixed: Set Hold mode activated The value displayed should be multiplied by 10. Flashing: Maintenance mode activated display shows current concentration in ppm (parts per million). Fixed: CAMM module in operation Flashing: Malfunction in CAMM module Unit in programming mode. -
Page 5: Messages
5750H002 Ed.03 Messages Setup wizard initiated (See page 9). Gas Pre-Alarm activated. Flashing together with the gas concentration (See page 12). Gas alarm activated. Flashing together with the gas concentration (See page 12). Initialisation process of the gas sensor. This process may last for up to 3 minutes. Error or malfunction of the sensor. -
Page 6: Installation
5750H002 Ed.03 4.- Installation WARNING -Transmitters/detectors supervise a point and not an area. If the gas leak does not reach the sensor, or the level of concentration in that point does not reach the foreseen values according to the type of gas (see page 3) no alarm will be activated. If perimeter supervision is required, several sensors should be installed around that area. -
Page 7: Assembly
5750H002 Ed.03 Assembly -Remove the bezels (1) from the unit. -Loosen the screws (2) by turning them a 1/4 turn and open the cover (3). -Drill the holes needed for the cable entry glands using the pre-stamped centres on the sides of the housing for guidance. -
Page 8: Wiring
5750H002 Ed.03 Wiring The wiring between the transmitter and the station must NEVER be installed in a conduit together with power, control or power supply cables. Always disconnect the power supply to do the wiring. Cables for wiring the relay contact should have an adequate section depending on the unit to be connected. Certain international standards maintain that the power supply of the alarm should originate from a different circuit to that used by the refrigeration and ventilation system. -
Page 9: Setup Wizard
If 1 minute elapses without any key being pressed, the transmitter will automatically proceed to demo mode*. AKO-575400 only 3-.The display will show the message Gc2. Use keys N and Q to select the type of gas to be measured (ALL, 134A, 404A, 407A, 410A, 125, 448A, 449A or 407F , and press SET to confirm. -
Page 10: Operating Modes
Choose this option if the transmitter is connected to a compatible alarm station. In this mode, the acoustic alarm is disabled and the output is configured to communicate with the station. Compatible stations: AKO-555241 AKO-555242 AKO-558241 Ÿ AKO-558242 AKO-55624 AKO-55724. - Page 11 5750H002 Ed.03 Set Hold mode Prevents false alarms when charging or cleaning the chambers. While this mode is activated, pre-alarms will not signal and alarms will signal as pre- alarms when faced with all effects (sound, relay activation and signalling). To activate/deactivate this mode, press the key for 3 seconds.
- Page 12 5750H002 Ed.03 Alarms The transmitter emits an acoustic alarm, the alarm indicator flashes and activates the relays when certain gas concentration levels are exceeded. If the transmitter is connected to a station, the station will emit the acoustic alarm. The relays will be activated in both devices. There are two alarm levels depending on the concentration of gas detected: Pre-Alarm and Alarm.
- Page 13 5750H002 Ed.03 Statuses Alarm level Pre-Alarm level TRANSMITTER Relays STATUS Pre-alarm Alarm Without alarm Delayed pre-alarm Intermittent Pre-alarm sound Intermittent Delayed alarm sound Bitonal Alarm sound Depending Depending Muted on b03 on b03 pre-alarm Depending Depending Muted on b03 on b03 alarm 3 short tones Sensor error...
-
Page 14: Configuration
5750H002 Ed.03 6.- Configuration 3 s. 6 s. Direct access to alarm levels To configure the Pre-Alarm and Alarm levels, hold Gas concentration Release SET Release SET the SET key down for 3 seconds. (Only if AL1=1) indication to access to access alarm levels programming... - Page 15 Description Values Min. Def. Max. AL1 Alarm levels: 0: According to regulation 1: Set by user AL2 Pre-Alarm 0: Disabled 1: Enabled AKO-575744 3000 b02 or AL3 Pre-Alarm Level * AL4+1 Other models AL4 Pre-Alarm Differential Min. AL5 Pre-Alarm Delay (0: Disabled)
- Page 16 5750H002 Ed.03 INPUT AND OUTPUT CONFIGURATION Description Values Min. Def. Max. Reset to zero of the sensor (Calibration only, see page 21) 0: Disabled; 1: Reset to zero activated Setting the sensor (Calibration only, see page 22) 0: Disabled; 1: Setting activated Polarity of digital input 1 (Remote Mute) 0: Activates on opening contact;...
-
Page 17: Connectivity
Once modified, the old address indicated on the plate will not be valid. AKO-5012 AKO-80039 AKO-80039 Tr-: Yellow RS-485 >25 ** Tr+: Orange GND: Black CAMRegis AKOGAS AKOControl* AKOALARM SECURE AKOControl* AKOCORE CONTROL Terminating resistors are not required. AKO controller with communication **AKO-80024 Use if connecting more than 25 units... -
Page 18: Maintenance
Ÿ 9.- Installation of AKO-58110 calibration kit The AKO-58110 calibration kit enables the testing, verification of accuracy, reset to zero and calibration of the transmitter. These tasks will be explained in the following pages. Install the kit, attaching it to the transmitter window Press hard until it fits together perfectly. -
Page 19: Operation Test (Bump Test)
It is advisable to disable the Pre-Alarm delay (AL5) and Alarm delay (AL8) to speed up the verification process. Install the AKO-58110 calibration kit following the instructions on page 18. Ÿ Open the shut-off valve of the gas cylinder and wait. -
Page 20: Verification Of Accuracy
Materials required: AKO-58110 calibration kit Calibrated gas cylinder* AKO recommends verifying the accuracy of the transmitter at least once per year. Please check what current local regulations specify for such cases. Always ensure that you comply with current local regulations. -
Page 21: Reset To Zero
After initiating the reset to zero process, ensure that the transmitter has been operating for at least 20 Ÿ minutes. Install the AKO-58110 calibration kit following the instructions on page 18. Ÿ Enter the programming menu by pressing the SET key for 10 seconds and access parameter {00 (See page Ÿ... -
Page 22: Calibration Of Transmitter
The transmitter may take a few moments to go back to showing the concentration values from before the calibration procedure. AKO-575400 only: Once the verification procedure has been completed, remember to adjust parameter Gc2 to the value prior to the start of the calibration procedure. -
Page 23: Technical Specifications
Range of maximum moisture permitted............0 - 95 % HR (without condensation) Protection degree ............................IP 68 Type of sensor ..................NDIR (Non-Dispersive Infrared Technology) Display range AKO-575744.......................0 - 5000 x1 ppm Other models ......................0 - 2000 x1 ppm Estimated working life ..........................7 years Dimensions ....................202 mm (W) x 82 (H) x 55.5 mm (D) -
Page 24: Accessories
5750H002 Ed.03 15.- Accessories Calibration tool for AKO-58110 transmitters and detectors This enables testing (Bump Test), verification of accuracy, reset to zero and field calibration of AKO-575xxx gas transmitters. AKO-58120 protector Protects the AKO-575xxx gas transmitter against possible knocks. - Page 25 5750H002 Ed.03 AKO-58500 CAMM Module Together with the application for mobile devices, this module provides the unit with multiple functionalities: - Data logging - Activity summaries - Logging of configuration changes - Logging of events and alerts - Remote configuration...
- Page 26 5750H002 Ed.03...
- Page 27 5750H002 Ed.03...
- Page 28 AKO ELECTROMECÁNICA , S.A.L. Avda. Roquetes, 30-38 08812 • Sant Pere de Ribes. Barcelona • Spain. Tel.: +34 902 333 145 Fax: +34 938 934 054 www.ako.com We reserve the right to supply materials that might vary slightly to those described in our Technical Sheets. Updated information is available on our website.
