Made in the USA
BD-SS-200-JK4
BD-SS-201-JK4
Congratulations on your purchase of the Next Gen Step Slider!
*If you plan on running higher rather trails, our optional Skid Plate are recommended
IMPORTANT NOTES -
•
No maintenance required. If the steps become jammed with mud/dirt, simply spray them off and let them
dry. Harness is waterproof and the motors are water resistant.
•
Drilling is required for install of nutserts.
•
18 mm Socket and Wrench
•
19 mm Socket and Wrench
•
3/16" Hex Key / Allen Wrench
•
3/4" Step Drill
1

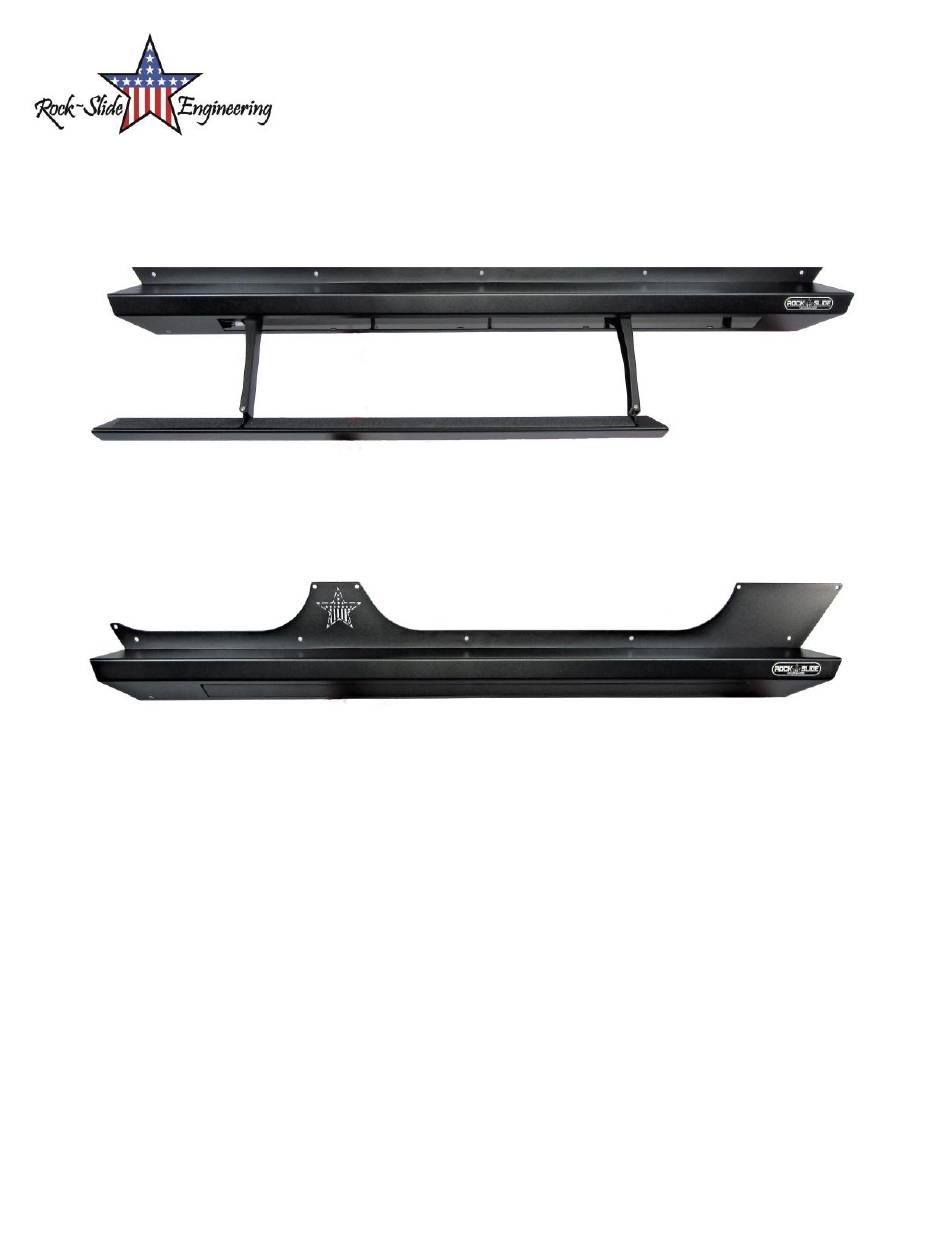

Next Gen Step Slider
Designed to be function, tough, and durable.
These steps are rated for trails 5 and below.*
TOOLS REQUIRED FOR INSTALL
•
1/8" drill bits for pilot hole
•
Nutsert tool with 5/16" - 18 Mandrel
•
**We recommend a Marson 325 or
Four Wheel Parts Nutsert Tool Set - 2834**
AX-SS-SP-JK4
.
Advertisement
Table of Contents
Summary of Contents for Rock-Slide Engineering BD-SS-200-JK4
- Page 1 Next Gen Step Slider Made in the USA BD-SS-200-JK4 BD-SS-201-JK4 Congratulations on your purchase of the Next Gen Step Slider! Designed to be function, tough, and durable. These steps are rated for trails 5 and below.* *If you plan on running higher rather trails, our optional Skid Plate are recommended...
-
Page 2: Parts List
ROCK-SLIDE ENGINEERING PARTS LIST Step Slider HARDWARE KIT BODY ARMOR Item Manufacture Part DESCRIPTION QUANTITY ELECTRIC STEP SLIDER (DRIVER / PASSENGER) WIRING HARNESS (TWO PIECE) ALCOHOL WIPES & DOUBLE SIDED STICKY SQUARES DOOR SENSOR MAGNETS DOUBLE SIDED STICKY TAPE ROCKER CUTOFF SWITCH... -
Page 3: Wiring Harness
ROCK-SLIDE ENGINEERING WIRING HARNESS DRIVER PASSENGER Figure 3.1 DRIVER SIDE WIRE COLOR PASSENGER SIDE WIRE COLOR FRONT DOOR SENSOR ORANGE/YELLOW FRONT DOOR SENSOR GREEN/GRAY REAR DOOR SENSOR ORANGE/PURPLE REAR DOOR SENSOR BLUE/WHITE DRIVER LED LIGHT BROWN/TAN PASSENGER LED LIGHT PINK/TAN... - Page 4 ROCK-SLIDE ENGINEERING Remove the front body bolts on the driver and passenger side Step Install (under the front door) using a 19mm socket and wrench. Loosen the rear two body bolts (under rear passenger doors) using Remove stock steps or rocker guards if equipped.
- Page 5 ROCK-SLIDE ENGINEERING Working on the driver front, remove push in clips using a flat head Wiring Harness Install screwdriver or wire clippers. Keep or replace the push in retainers. Notes: The harness comes in two pieces. A smaller section that you can run from the battery through the firewall that connects into the large harness.
- Page 6 ROCK-SLIDE ENGINEERING Pull back the carpet behind the driver side. Locate hole Refer to wiring diagram for color code per door** to run the motor wires. Remove plug from hole. Run the passenger portion of the harness along the rear driver side Drop the motor wire and light panel, behind the rear seat, to the passenger side.
- Page 7 ROCK-SLIDE ENGINEERING Shut the doors on the vehicle. Steps should retract. If they do not retract, magnets are mis-aligned just barely. Troubleshooting: Working on one side of the jeep, unplug the rear sensor but leave the front door shut. If step retracts after two sec- onds, front door is aligned.
- Page 8 ROCK-SLIDE ENGINEERING TROUBLESHOOTING YOUR STEP SLIDERS: I just installed my steps and they aren’t coming down when I open the door. Alright! First thing: Double check connections. Check the fuse to make sure it is plugged in. Is the little on/off switch getting power? Is the little circuit board plugged in? Are the door sensors plugged in? My switch is getting power but the light stays on in both positions.
-
Page 9: Product Information
RETURNS: All returns must be accompanied by an original invoice. It is the customer’s responsibility to remove the product from the vehicle. Inbound shipping charges (from you to us) are the responsibility of the customer. Rock-Slide Engineering Inc. will pay the out- bound (to you from us) freight.
