Teradyne GNA600 User Manual

Gateway device for honda vehicles
Hide thumbs
Table of Contents

Advertisement

Quick Links

E-mail:autocardiag@gmail.com
Skype:Marshall.obd2
Whatsapp:86-13476108995
www.autocardiag.com

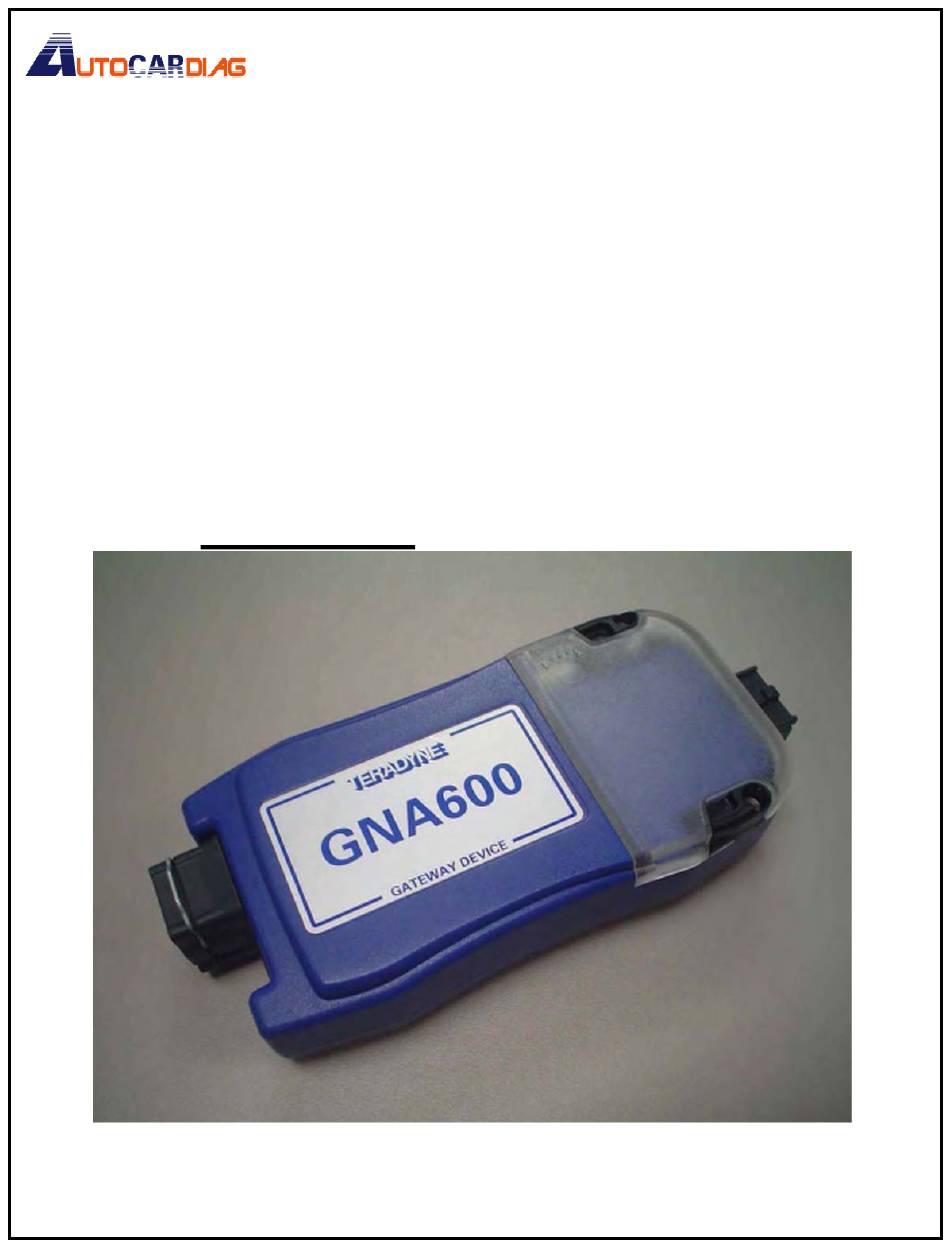

TERADYNE
GNA600
GATEWAY DEVICE
USER GUIDE FOR
HONDA VEHICLES
© 2008 American Honda Motor Co., Inc. – All Rights Reserved
AST 39880 (080
)
7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GNA600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Teradyne GNA600

  • Page 1 E-mail:autocardiag@gmail.com Skype:Marshall.obd2 Whatsapp:86-13476108995 www.autocardiag.com TERADYNE GNA600 GATEWAY DEVICE USER GUIDE FOR HONDA VEHICLES © 2008 American Honda Motor Co., Inc. – All Rights Reserved AST 39880 (080...

  • Page 2: Table Of Contents

    GNA600 Gateway Device User Guide CONTENTS COMPLIANCE FCC Statement Use of This Equipment in Canada Use of This Equipment in the European Union SAFETY PRECAUTIONS Basic Safety Precautions Proper Installation and Use of This Equipment INTRODUCTION Overview GNA600 Kit Description of Parts...

  • Page 3: Compliance

    1 – COMPLIANCE 1.1 FCC Statement The United States Federal Communications Commission (in 47 CFR 15.105) has specified that the following notice be brought to the attention of users of this equipment. This equipment has been tested and found to comply with the limits for a Class “A” digital device, pursuant to part 15 of the FCC rules.

  • Page 4: Safety Precautions

    14. ALWAYS WEAR SAFETY GLASSES. Everyday eyeglasses only have impact-resistant lenses; they are NOT safety glasses. 15. While using the GNA600, ensure that the auto DLC cable does not get trapped between the door and the vehicle body. A S T 3 9 8 8 0 ( 0 8 0 7 )

  • Page 5: Proper Installation And Use Of This Equipment

    The GNA600 has a 230/11 0V AC input to the power supply and is supplied with a power cord. The electrical power source outlet socket must be located adjacent to the equipment, and it must be easily accessible and readily identifiable to the operator as the means of disconnection of the electrical power source to this equipment.

  • Page 6: Introduction

    DLC (data link connector). The GNA600 does all the functions of the HIM (Honda Interface Module) but with additional capabilities. The GNA600 is easiest to use with a wired USB connection, but it can also be used with an Ethernet connection. Here are the two connection configurations:...

  • Page 7: Gna600 Kit

    3.2 GNA600 Kit Part Number TDS35540000 Part Name TDS35525406 1. GNA600 Unit TDS35541 433 2. USB PC Interface Cable TDS6067801 0 3. DLC Cable TDS35481 214 4. Power Supply Unit TDS35541 434 5. Power Supply Cord TDS35541 441 6. Trigger Switch Adapter Block (Yellow) TDS35541 359 7.

  • Page 8: Description Of Parts

    (TDS35541 433) Connects the GNA600 to the vehicle’s 16-pin DLC. Power Supply Unit (TDS6067801 0) Provides A/C power to the GNA600 when it is not connected to a vehicle. Power Supply Cord (TDS35481 214) Connects the Power Supply Unit to A/C power.
  • Page 9 Connects the PC to the GNA600 through a standard PC Ethernet cable (cable not included). NOTE - The PC Interface Adapter Block is not needed if you connect the PC to the GNA600 with the USB PC Interface Cable (TDS35525406). Trigger Switch (TDS35541 359)

  • Page 10: Software Use

    4 . 1 O v e r v i e w The GNA600 can be used with two different software suites that are distributed with the HDS software package, and can be installed according to the instructions provided by the software distributor.

  • Page 11: Use With Hds Software

    GNA600. No connection between the PC and GNA600. Connection OK between PC and GNA600. This does not indicate a connection to a vehicle. A S T 3 9 8 8 0 ( 0 8 0 7 )

  • Page 12: Use With Control Module Update Software

    4.3 Use With Control Module Update Software The GNA600 can be selected as the default vehicle interface during installation of the Control Module (CM) Update software or from the setup screen. CANADA The LED patterns seen on various screens during use...

  • Page 13: Setup

    5 - S E T U P 5 . 1 B e f o r e Y o u S t a r t For the initial setup of the GNA600, the latest version of HDS software must be installed on the host PC.

  • Page 14: Connection With The Usb Pc Interface Cable

    To vehicle’s DLC. To establish the Ethernet connection, install a second network adapter card in the host PC. This allows for a connection to the Internet on one card and a connection to the GNA600 on the other. *This is an optional part that can be purchased separately.
  • Page 15 DNS settings are required. Once the address is set, restart the PC, launch the HDS software, and verify that the GNA600 icon in the top right corner of the screen has a green light. A S T 3 9 8 8 0 ( 0 8 0 7 )

  • Page 16: Updating Control Units/Modules

    The GNA600 is much faster than the HIM (Honda Interface Module) that it replaces. You will see rapid upload times from the PC to the GNA600 and also from the GNA600 to vehicles that use the new CAN (control area network) protocol. Based on the communication protocol used, connection speed between the GNA600 and different vehicles will vary.
  • Page 17 As shown to the right, the CM Update software is launched from the Windows Start menu. To do control unit/module updates, the latest HDS software must be installed (see section 4). 16 of 30 A S T 3 9 8 8 0 ( 0 8 0 7 )

  • Page 18: Control Unit/Module Update In Pass-Thru Mode

    2. Connect the DLC Cable to the GNA600 and to the vehicle’s DLC. (You don’t need to turn the ignition switch to ON (II) before connecting the GNA600.) 3. Turn the ignition switch to ON (II), and wait until the green #2 LED on the GNA600 stays on. Click on the Check Mark to continue.
  • Page 19 4. Select the vehicle system that you are updating, then click the Check Mark on the right side of the screen. 5. Verify that the Program ID and the Program Part No. are for the system you selected in step 4, then click on the Check Mark.
  • Page 20 Click on Yes to continue. The CM Update software loads the program file onto the GNA600. This takes only a few seconds. A S T 3 9 8 8 0 ( 0 8 0 7 )
  • Page 21 7. Click on the Check Mark to begin the control unit/module update. NOTE: On non-CAN vehicles, the update can take 15 to 30 minutes. CAUTION - To avoid ECM/PCM damage, do not interrupt the update. A S T 3 9 8 8 0 ( 0 8 0 7 ) 2 0 o f 3 0...
  • Page 22 8. Once the update is completed, turn the ignition switch to LOCK (0), and then back to ON (II) within 60 seconds. 9. Once the software verifies that the control unit/module has been successfully updated, click on Yes to update another vehicle, or click on No to exit the update program. A S T 3 9 8 8 0 ( 0 8 0 7 ) 2 1 o f 3 0...

  • Page 23: Control Unit/Module Update In Storage Mode

    Updating Honda Control Modules main screen, select Storage Mode and follow the on-screen instructions. 2. Connect the DLC Cable to the GNA600 and to the vehicle’s DLC. (You don’t need to turn the ignition switch to ON (II) before connecting the GNA600. This applies only to the HIM.) 3.
  • Page 24 Click on Yes to continue. The CM Update software loads the program file onto the GNA600. This takes only a few seconds. 23 of 30...
  • Page 25 14. Turn the ignition switch off, and disconnect the DLC Cable from the vehicle. The software update is stored in the GNA600. To do the same update on another vehicle, repeat steps 9 thru 14.

  • Page 26: Troubleshooting

    1. Check that the DLC Cable is properly connected to the GNA600 and to the vehicle’s DLC. 2. If you are using the GNA600 in Storage Mode, make sure the Power Supply Unit and the Power Supply Cord are properly connected.

  • Page 27: Gna600 Led Patterns

    An incorrect control unit/module calibration was selected, or the BLINKS GNA600 needs to be reprogrammed. GNA600 device error. Disconnect the power. A S T 3 9 8 8 0 ( 0 8 0 7 )

  • Page 28: Care And Maintenance

    • Do not soak the cleaning cloth, and do not allow cleaning fluid to enter the electrical connectors. • Do not use abrasive cleaners or any type of polish. • If dust or other particles get on the GNA600 Unit, lightly brush the unit off with a soft, lint free cloth. 8.2 Cable Care •...

  • Page 29: Specifications

    70 C (-4 F to 158 F) at 15% to 85% RH non-condensing Standards and Regulatory The GNA600 fulfills the requirements of the CE marking Compliances: scheme and UL201 – Garage Equipment 256 MB PCMCIA Memory Card* Manufacturer: Silicon Systems Manufacturer’s Part Number:...

  • Page 30: Support Information

    The limited warranty applies to normal use only. It does not cover any damage or defects arising from: • Failure to use the GNA600 according to the written instructions of Teradyne or American Honda, or use with vehicles, motors, or systems other than those for which it was designed. It is particularly important to follow all written instructions in any software used with the GNA600 relating to required cable connections.

  • Page 31: Customer Service Assistance

    1. Make sure you do the troubleshooting steps in section 7 before you call. 2. If you need assistance with the GNA600 hardware or software, call (800) 210-8699. 3. Have this information handy before you make your call: • GNA600 serial number •...
