MAT NX3 Evo Manual

NX3 Evo Flight Controller System Manual
VERY IMPORTANT!
Please release or turn off the emergency switch when the plane become level

flight and under control. Emergency mode just for emergency situations.
 Please use good quality BEC or ESC as power supply. Do not use Ni-Mh and
dry cell batteries.
 When use NX3evo in Delta wing or V-tail plane, please turn off mixers on your
transmitter, and set the DIP switch on NX3evo.
 For the first flying, it's better to keep a lower sensitivity (-20%~+20% gain,
10~14 o'clock is recommend) and then increase it gradually.
Check every axis gain direction befor flight.

 When you triggle the emergency switch, The elevator will move up and then
move down slowly. If it is not, please reset this function refer step 4.8 radio
stick direction calibration.
 Must keep the plane level and stable when power on the system.
When switching on the radio control system it is essential to keep the

transmitter aerial at least 15 cm away from the receiver aerials at all times.
Otherwise,NX3evo will read the wrong center position of receiver signal .
The Controller has to re-learn center position after installation,or replacing a

new radio system, or making a trimming(or Sub-Trim)change within the
transmitter, otherwise the servos may move to one side automatically.To do
this,just quickly flip the flight mode switch twice within 1 second!
1. Features:
NX3evo provides four levels of flight mode:

1. Beginner, 2.Practice, 3.Promotion, 4.Expert.
 Four Model Types supported:
single aileron, dual ailerons , delta and vtail.
 Two kinds of Gain Control Method supported:Master Gain from the radio,
Independent Axis Gain from the Variable resistor on the Controller board.
 Emergency mode guarantee safety flight .
 Automatic aileron levelling.
3D AVCS flight, Attitude locking.

 Provide Y-wiring for aileron.
2. Specifications:
 Voltage range: DC 4.5 – 6V
 Response Frequency: 100Hz
Operating Temperature: 0-50°C

 Size: 43x28x15mm
 Weight: 11g
3. Packing List:

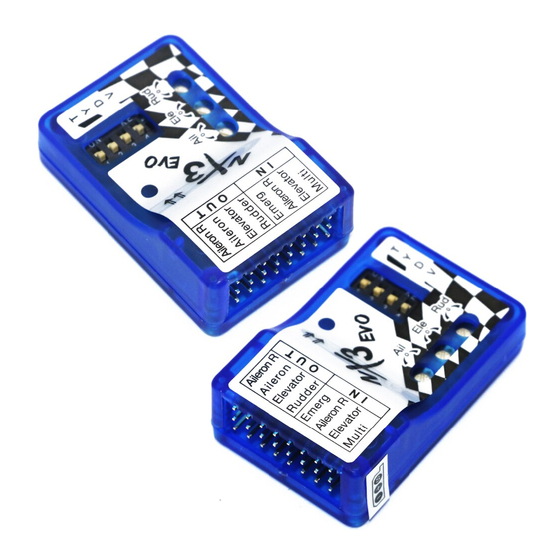

 NX3evo Flight Controller Board
NX3evo Manual

 Connector wires
 Double-sided paste
Mini Screwdriver

4. Installation:
WARNING: PLEASE READ
CAREFULLY BEFORE YOU START TO INSTALL A NEW PLANE!
Step 1:Configure the plane without NX3evo.
Create a new model in your transmitter. Do not engage any mixer on your
transmitter.Assign two switchs for NX3evo.One is for AUX(flight mode change),two
or three steps. Another is for Emergency(Rebound Toggle Switch is better).Make
sure all servos moves smoothly.
Step 2: mount
NX3evo need to be
firmly mounted near
the gravity center of
the plane with
provided
MAT NX3 Evo Flight Controller System
THE FOLLOWING STEPS
double-tape . Please make sure the long side of NX3evo is in line with
the fuselage. And the logo side should face up. After mounting, please check again
whether the board is firmly attached to the aircraft.
Step 3: DIP configure
1. If you are a beginner, please turn the switch (T) to the right.
2. If you want yaw attitude locking, please turn the switch (Y) to the right.
3. For delta-wing plane, please turn the switch (D) to the right.
4. For v-tail plane, please turn the switch (V) to the right.
Step 4: Wiring
Connect NX3evo and the receiver using wires in the package according the following
figure.
Step 5: AUX Channel or Master Gain channel Setting
NX3evo use AUX channel to change flight mode.The
controll the Master Gain of NX3evo.Decrease the AUX travel will decrease all three
axises correction. NX3evo will be in
do not connect to the receiver.
'T' be right side
mode Beginner
AUX
Signal -100 ~ 0
Width
LED forever
Status on
Step 6:Individual Correction Gain and Correct Direction Configuration
Using the provided screwdriver to adjust the gain
pots on NX3evo board control the correctional gain
(sensitivity) and correct direction for the following
controls: pitch (ELE), roll (AIL) and yaw (RUD)
axis. You'd better start with a lower sensitivity for
your first flight (-20%~+20% gain was recommend)
and then increase it gradually. The aircraft will
become vibrative if the gain is too large.
VERY
Before configure the Correct Direction, please switch to Practicing Level or
Promotion Level at first, power on the system, pick up the airplane and check it by
following the three steps below:
AILERON Quickly move the right wing upward around the roll axis, the right
aileron will flap up and the left flap down.
travel of AUX channel also
Beginner Level or Expert
'T' be left side
Practicin Promotio
Expert
g n
0 ~ 100 0 ~ 100 -100 ~ 0
Fast Fast forever
Flash Flash on
Level if AUX channel
Emergenc
y
Signal
With
100
Emergenc
Close
y Mode
-100 ~
0
100
Slow
off
Flash
